Apr 5, 2014 at 9:42 pm #1315332
My Evernew titanium mug failed.. the handles are broken unfortunately.
The one complaint I have about it is that I want a handle over the top of it so I can suspend it over a fire. I imagine I can have boiling water MUCH faster.
Do any vendors make a mug with a handle like this? Is there a name for that type of handle?

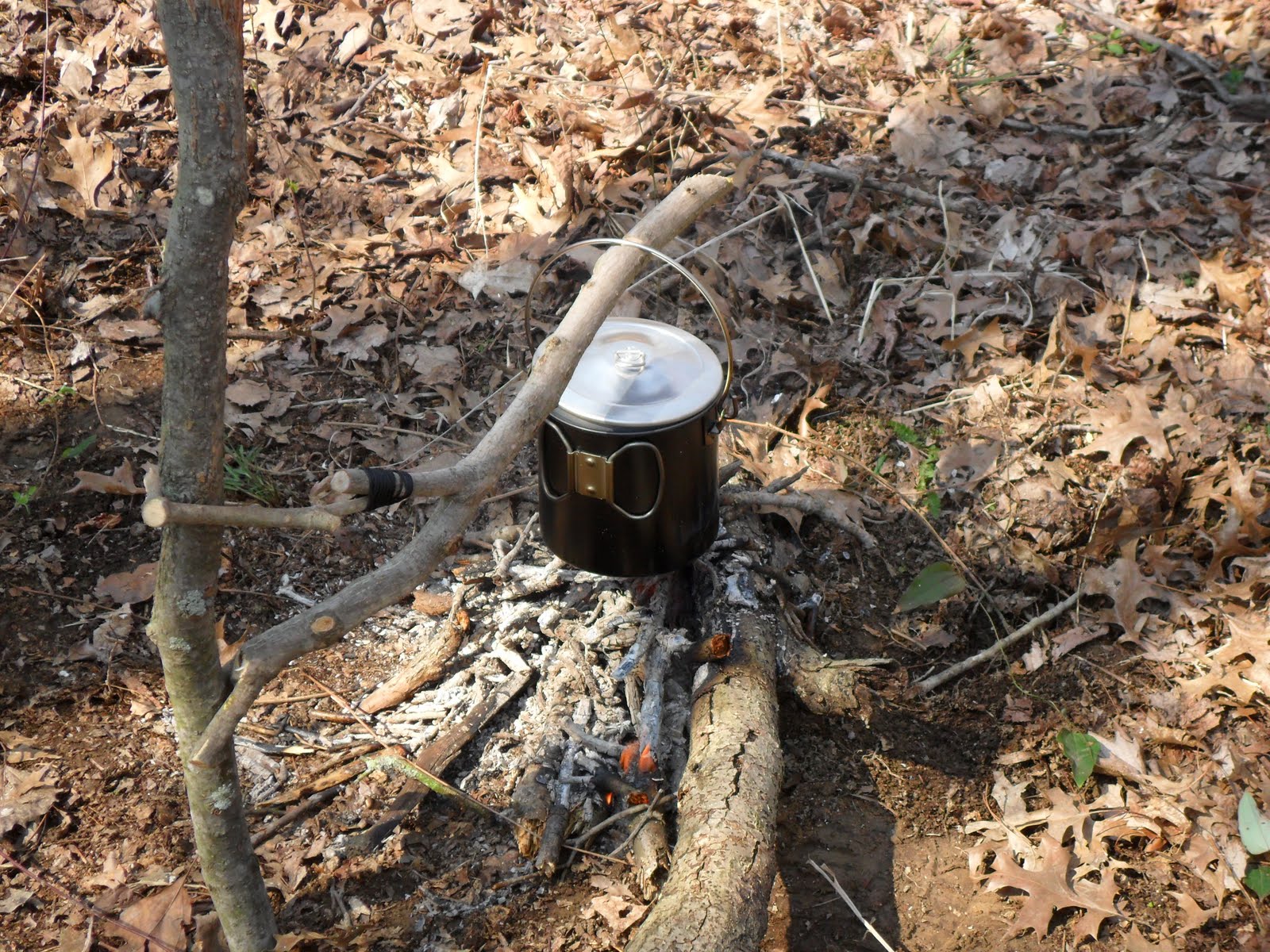

I kind of want this setup:Apr 5, 2014 at 9:59 pm #2090181
@b-g-2-2Locale: Silicon Valley
The photo shows a heavy/rigid bail. That works, except that it is heavy and non-folding.
I use a 20-fluid-ounce Snowpeak titanium bowl (1.8 oz), and I attached a length of stainless steel wire of a length similar to the heavy bail. I usually use the wire just for lifting it off my Esbit burner, but it could be used over a wood fire.
–B.G.–Apr 5, 2014 at 10:09 pm #2090184
@justin_bakerLocale: Santa Rosa, CA
You could drill holes in your pot and add a wire bail.
David Gardner (gold gear) has been experimenting with adding a wire bail to his beer can pots, they are very light.Apr 5, 2014 at 10:17 pm #2090187
I was thinking of doing that and taking it to the local hardware store and having them drill it.
But really good idea.Apr 5, 2014 at 10:33 pm #2090192
@b-g-2-2Locale: Silicon Valley
Titanium is very hard to drill. However, if you use a Dremel tool and a very hard bit, it works. It doesn't take a very large hole to get a steel wire through.
–B.G.–Apr 5, 2014 at 10:50 pm #2090195
There is at least one LW version :

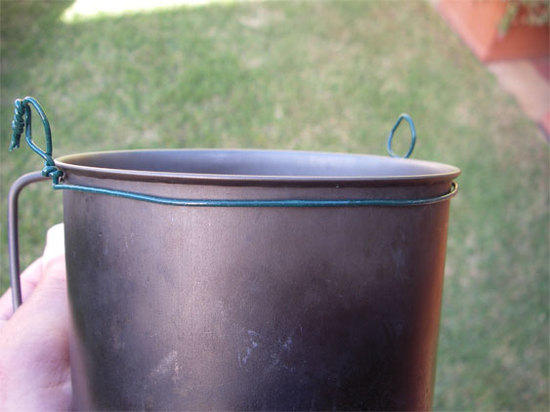

however because of the low weight of these pots even when fulland the fact that they all seem to have a rim, you should be able to make a wire bail without drilling holes into the cup.
something like this :

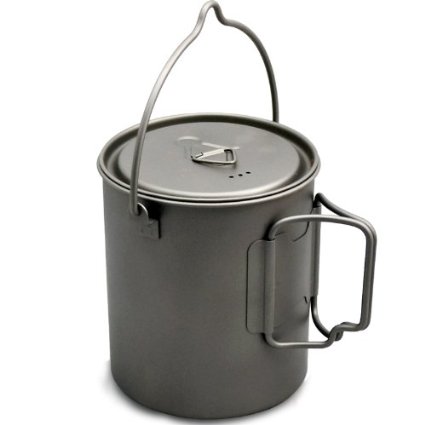

Added picture of the 750ml (4.7oz) Toaks for your convinience
Apr 5, 2014 at 11:22 pm #2090198
@glenn64Locale: Snowhere, MN
Seems like a job for a broken high E electric guitar string.Apr 5, 2014 at 11:53 pm #2090200
@rcaffinLocale: Wollemi & Kosciusko NPs, Europe
It's called a billy, at least here in Oz.
A large tin can and a bit of tomato wire. Holes made with a hammer and nail. Used to be the default.
You can drill the Ti walls with a standard (sharp, maybe new) 1/16" twist drill and a drill press. Support the side you are drilling properly (!), run the drill not too fast, and be aggressive in how you feed the bit in. Should only take a few seconds.
Make the bail from a Ti bicycle spoke or some Ti welding wire. Oh well, try a bt of SS MIG wire maybe.
CheersApr 6, 2014 at 12:43 am #2090206
The pot in your picture looks like a modified Snow Peak Trek 900 or 1400.These are sold at Four Dog Stove (fourdog.com)Apr 6, 2014 at 4:04 am #2090216
See this thread for a flexible bale handle on a Evernew 900ml pot. Pot with lid comes in at 69 grams (2.43 oz).
http://www.backpackinglight.com/cgi-bin/backpackinglight/forums/thread_display.html?forum_thread_id=76677&skip_to_post=654871#654871Apr 6, 2014 at 6:33 am #2090243
– -K.T.- –Participant
I would like to see photos of the failure on the mug. Possible Kevin?Apr 6, 2014 at 9:52 am #2090296
@lotuseaterLocale: Colorado Foothills
Don't know if you need the volume, but LiteTrail offers a Toaks 1600ml with a wire bail handle:Apr 6, 2014 at 6:07 pm #2090457
@fluffinreach-comLocale: no. california
" You can drill the Ti walls with a standard (sharp, maybe new) 1/16" twist drill and a drill press. Support the side you are drilling properly (!), run the drill not too fast, and be aggressive in how you feed the bit in. Should only take a few seconds.
Make the bail from a Ti bicycle spoke or some Ti welding wire. Oh well, try a bt of SS MIG wire maybe. "
+ 1 – all exact true and correct.
there is nothing else to know.
other than cobalt steel drill bits work a tad nicer for this task, and if you are really really desperate/determined to shave grams, you can get free ss wire from any of the better welding suppliers in .023 – .025" size if they have an open spool floating about.
when trying to support the pot for drilling, simply clamp a stick of wood in the vise, and drill into that.Apr 10, 2014 at 6:22 am #2091460
Perhaps consider this "halulite" aluminum kettle:
I use a lot of titanium gear, but I don't like it for heating water. Aluminum heats much more efficiently. Though slightly heavier, the weight is offset by decreased fuel usage. I've used hot coals, wood stoves, esbit, white gas, isobutane, and alcohol stoves under it for 5 years now and apart from char marks on the bottom looks new; it has been stepped on many times.
The 1L kettle is 5.8 ounces as delivered. I dropped an ounce by replacing the heavy bail wires with much lighter wire (I bet Kevlar cordage would work as well)
