need education on guylines, linelocs/tensioners, etc.
Forum Posting
A Membership is required to post in the forums. Login or become a member to post in the member forums!
Home › Forums › Gear Forums › Make Your Own Gear › need education on guylines, linelocs/tensioners, etc.
- This topic is empty.
-
AuthorPosts
-
May 18, 2011 at 2:15 pm #1274046
I've been searching in the MYOG forum but haven't found what I'm looking for: a comparative discussion of various guyline materials (spectra, spectra w/nylon coating, polyester with nylon coating, etc.), sizes, etc. as well as the hardware that might be used to cinch them down (not being a knot person myself) – lineloc 3 adjusters, the triangular mini line locs, etc.
Would anyone like to chime in with their knowledge? For me, I'm most interested in line that's not slippery or too small to work with, that has a good hardware option, preferably also something visible I won't trip over, but that's less of a requirement. The lineloc 3s look like more of an all-purpose solution than the triangular line locs (i.e. could use on pack lids too) so I might prefer a line that works well with those.
Thanks –
May 18, 2011 at 2:48 pm #1738252Seen this?
May 18, 2011 at 3:05 pm #1738257May 18, 2011 at 4:11 pm #1738287Just a datapoint: Recently bought the "Mountainfitter Reflective Glowire" from Lawson. Fed it through a Lineloc3 and yanked a few times–no slippage. No idea how this correlates to actual outdoor use (cyclical loading, prolonged load, etc.).
May 18, 2011 at 4:22 pm #1738292I am using LineLoc 3s with the 2.2mm cord from Zpacks and this seems to hold up well to the force of me pulling and overnight 20mph winds on my tarp. I've not had this setup very long at all but it seems to function on-par with Triptease for example.
May 18, 2011 at 4:23 pm #1738293Here's a great piece of advice: learn how to tie a taut-line hitch:
http://meritbadge.org/wiki/images/5/5d/Six-Boy-Scout-Knots.pdf
Once you get the hang of it, you'll be able to tie off guy lines in 15 seconds. At that point, you'll never have to depend on any contraption or be constrained by their limitations.
Let's assume you learn how to tie a taut-line, and are therefore free to pick any line you want. Here's another great piece of advice: get two sizes.
First & foremost, get yourself some paracord 550. This stuff is universal, and you should be carrying 10' or so regardless as part of your emergency kit. (As the number indicates, it's rated up to 550 lbs, which is sufficient to either hoist someone out of a jam, or tie down a splint.)
As an added bonus, you can use the 550 for primary stays to either one or two trekking poles, branches, etc.
As yet another added bonus, since the 550 is woven with multiple internal threads, you can unravel those & use them as thread & needle (which should also be in your kit) to perform field repairs as necessary. (Including stitching either yourself or someone else.)
Second, get some 2mm (typically para 200) for all your other tie down requirements (A-frame side stays, etc). While the 550 is usually black (macho thing), the 2mm can be all sorts of fancy, shiny colors, especially if you don't want to trip over smaller side stays.
If you're interested in 550, you can buy spools of it from Amazon for peanuts. Here's a link:
May 18, 2011 at 5:02 pm #1738310I don't care for paracord. Too much stretch. Too heavy. Absorbs water. Do not use for supporting a person.
The taughtline hitch is great though.
May 18, 2011 at 6:42 pm #1738344I agree that Paracord is overkill. What is missing here is the usual discussion of Braided Mason's Line and relevant tensioner's vs. knots. It's all at BPL but searching can be a pain. Alas no stickies like other sites. It is sort of like Waiting for Godot on many topics . We usual suspects chime in but it is pretty boring. You can look at my prior posts as a partial shortcut.
May 18, 2011 at 6:52 pm #1738346Thanks for all the info, everyone. John, not sure I'm up to looking through 55 pages of your posts :-/ but maybe I'll tackle it a little at a time.
Do some types of cording not work with knots as well as others?
May 18, 2011 at 7:02 pm #1738355Debbie,

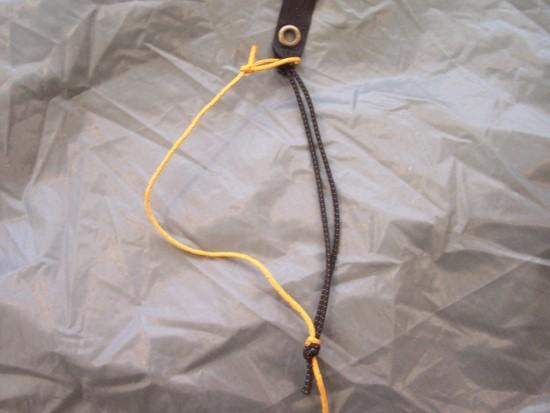

I am currently using this configuration on my silnylon tarp guylines.
When I set up my tarp I stake out my guylines until the Triptease is completely taut and the shockcord is tensioned / stretched along side it. During the night if things go slack and become not as taut the shockcord automatically takes up the slack.
The Triptease has worked well but I intend to replace it with some of the Mountainfitter Guywire from Lawson Equipment. I like the reflective quality of the Triptease but I believe the Guywire will absorb less water if it rains.
I don't use tensioners or linelocs. I let the shockcord do its work and stake out the guyline.
Party On,
Newton
May 19, 2011 at 9:03 am #1738522Debbie: Here is a link which will get you to one of many threads about this subject. While Braided Mason's line will take a knot well in cold freezing conditions a lineloc has the advantage of adjusting quickly.
http://www.backpackinglight.com/cgi-bin/backpackinglight/forums/thread_display.html?forum_thread_id=34486May 19, 2011 at 9:32 am #1738531+1 for the taut-line hitch, that and a bowline are my two most used knots. Pratice in the dark and rain until its right. You will never forget or spill it wrong.
May 19, 2011 at 10:08 am #1738551Newton,
oops, never mind, found the answer to my question about your shockcord on the site where the technique is described: http://www.hammockforums.net/forum/showthread.php?t=3731For all: is a tautline knot intended to be slideable (when you want to) to adjust the tension? I tried it on some cotton string, and it seems to do that while holding fast against pulling to simulate wind tension.
May 19, 2011 at 10:31 am #1738567I use taut line hitch on Mason's line
This allows you to tighten it as the tent stretches
Also, where I camp, it's often difficult to find a spot that you can get a stake into, so you really need an adjustable length guyline
The only problem with thin line, like Mason's line, which is maybe 1.5 mm, is it's difficult to get it tight enough to not slip. You really have to pull on both ends, and push together the three loops of the knot. Then it doesn't slip, in my experience.
I think it's almost more trouble than it's worth, better to just get Lineloc 3s or whatever, but I'm too lazy to get them.
May 19, 2011 at 10:32 am #1738569The tautline should not slip unless you're manipulating the knot in either direction on the line. If it's slipping with just tension applied, you might need to tighten up the knot a bit. Some cord performs better than others for this, I've had good luck with most of the synthetic lightweight 2mm-3mm cords you find at various sources.
May 19, 2011 at 10:42 am #1738572That's what I thought, just wanted to make sure: that you can slide it manually, don't need to retie to adjust it.
May 19, 2011 at 10:47 am #1738574First off- I'm also a fan of paracord. I love the stuff, and have hundreds of feet around the house…My kids even have several 10' – 20' lengths of the stuff and practice tying knots and rigging up makeshift hammocks and what not. It makes them happy… So, I'm keeping a good 30' of it or so to use as a ridge-line or whatever need that may arise. It's just good stuff to have around. It's kind of like a first aid kit- you may never need it but when you do, you'll be glad you had it.
But as far as knots go- there's a whole family of friction hitches and some work better than others depending on the type of line it's tied in. Practice and find what works for you. Knots I find myself tying over and over and over again when practicing pitching my tarp are the adjustable grip hitch (a friction hitch I like better than the taught line hitch), clove hitch, bowline (any fixed loop knot will do, that's just easy to tie), trucker's hitch (tensioning hitch), alpine butterfly, and I think that's it going off the top of my head.
Wikipedia has is a great source for learning good knots to tie- http://en.wikipedia.org/wiki/List_of_knots
BM
May 19, 2011 at 10:48 am #1738575If it's slipping under load try adding another loop or two to the hitch, as you would with a prussik that's slipping.
To adjust pull down on the cord between the hitch and stake with one hand (to take tension off the hitch), and slide the hitch up the line with the other hand.
May 19, 2011 at 10:58 am #1738580Line Locs are convenient, but add weight of course so I tend not to use them.
With my silnylon poncho/tarp I could generally use a taut line hitch for the ridgeline (nice re-tensioning feature) and clove hitches for the guy outs.
This allowed me to tie temporary and variable length guy lines around tent stakes or sticks I used to anchor the tarp:
http://www.animatedknots.com/clove/index.php
– I can tie them at any point in the line depending on situations where I need a longer or shorter placement for the tent stake.
– It is absolutely the easiest and fastest way to undue things when breaking camp. You just slip the knot over one end of the tent stake and it's gone! (untangled, straight piece of guy line again)
The down side to the clove hitch is that if your pitch goes slack at night, it takes a little more effort to tighten things up a bit, but you still have the taut line hitch for your ridgeline that can be re-tensioned so I was fine 99% of the time if I pitched things well from the get-go.
And now that I've switch to a Cueben Fiber shelter/tarp that does not stretch, I think it will be even less important to easily re-tension at night.
GL!
May 19, 2011 at 11:27 am #1738599I like (and sell, full disclosure) 1mm dacron cord. It weighs very little, has low stretch
and low water absorbtion, tight weave so it doesn't snag like mason's twine, comes in
white so you can see it in the dark. Still stronger than most tie points on tarps. I do
carry with me on longer trips a small amount of heavier dacron cord for tying around sharp edged rock anchors.I don't use linelocks since you are limited to heavier cord. I prefer a release-able version of the tautline for adjustable knots, and clove hitch for attaching poles etc.
May 19, 2011 at 11:34 am #1738604David O,
Is that a different knot? If so, do you have directions?
May 19, 2011 at 11:44 am #1738612Inquiring minds want to know…animated GIF on the web somewhere of this knot?
"release-able version of the tautline"
May 19, 2011 at 11:48 am #1738617Could be the Farrimond friction hitch – http://en.wikipedia.org/wiki/Farrimond_friction_hitch
The only slipped friction hitch I've seen… The only downside, imo, is that it can be a bit tough to dress and get cinched down tight.
BM
May 19, 2011 at 12:08 pm #1738623With the tautline, you make two or more passes with the working end inside your loop, then you bring this end down and do a half-hitch on the standing line outside of the loop. If you simply do this as a slippery half hitch, it should be releaseable. Lots of variations on this.
May 19, 2011 at 12:32 pm #1738632"With the tautline, you make two or more passes with the working end inside your loop, then you bring this end down and do a half-hitch on the standing line outside of the loop. If you simply do this as a slippery half hitch, it should be releaseable. Lots of variations on this."
You got it. An Outward Bound School favorite. Use 3 passes instead of two like a standard
tautline, then use a bight of rope for the outside of the knot (like half of a bow on your
shoe). -
