Topic

Heat Sealing


Forum Posting

A Membership is required to post in the forums. Login or become a member to post in the member forums!

Home Forums Gear Forums Make Your Own Gear Heat Sealing

  • This topic is empty.
Viewing 16 posts - 1 through 16 (of 16 total)
  • Author
    Posts
  • #1232720
    Brad Groves
    BPL Member

    @4quietwoods

    Locale: Michigan

    I've read different snippets from different threads here about heat sealing nylons for pads and for seam taping. What I'm wondering is if those techniques would transfer to two particular materials.

    My Exped DownMat is a horrific pain to inflate with the mini pump, and the stuff sack pump weighs a whopping 6.7 ounces! What I plan to do is cut a hole in the bottom of a Sea to Summit 20L ultrasil dry bag (which will double as my clothing and pad bag). I cut the valve attachment from my Exped mini pump off at the pump body. What I'd like to do is melt/fuse the polyester pump "tube" to the silnylon sack. If I can make it work, will save me 6.3 ounces!

    Any suggestions on how to fuse it? If I use an old iron will it work? Or will I have to bond it somehow? Thanks!

    #1465256
    Steven Evans
    BPL Member

    @steve_evans

    Locale: Canada

    That's a good idea. Could you use some kind of sealant? Or fabric epoxy maybe?

    #1465298
    Denis Hazlewood
    BPL Member

    @redleader

    Locale: Northern California

    Would Silnet work?

    #1465338
    Derek Goffin
    Member

    @derekoak

    Locale: North of England

    You can cut the inner and foam out of the pump sac and it makes very little difference to pumping ability, not as light as what you intend though.

    #1465339
    Roger Caffin
    BPL Member

    @rcaffin

    Locale: Wollemi & Kosciusko NPs, Europe

    You can NOT heat seal silnylon.
    You could probably bond the silnylon to the polyester with any sort of silicone sealant.

    Cheers

    #1465365
    Brad Groves
    BPL Member

    @4quietwoods

    Locale: Michigan

    I was concerned about Silnet/seam sealer having a strong enough bond under pressure, but was looking at McNetts Sil-Fix kit, which has includes "Sil-Fix Silicone Repair Adhesive." Guess I'll try that. I was going to make the hole on the bottom of the bag, but think that on the side near the bottom would work better for air flow. Ultimately it probably won't matter, but I'm thinking I'll glue from the inside instead of attaching the pump on the outside for more strength. Thanks!

    EDIT: Hey, question–Would it be completely stupid to sew the fabric pump tube on before seam sealing/gluing?

    #1466109
    Brad Groves
    BPL Member

    @4quietwoods

    Locale: Michigan

    Sew I made my new pump sack/clothing bag this weekend. Very easy, but the important thing is that it works. I just stitched the air tube/valve to the lower side of the dry sack, cut out the dry sack material behind the tube, and siliconed the seams. Works beautifully. Actually, it makes filling my pad easier and faster, too. Weight-wise, my factory pump sack was 6.5 ounces; my altered dry sack weighs 2.3 ounces, so I only saved 4.2 between the two. However, I eliminated the pad sack, and by making the UL sil dry sack my clothing bag I cut 1.8 ounces from the dry sack I was using. In short, I ultimately saved 8.3 ounces (no dedicated pump sack, lighter clothing sack).

    #1466136
    Roger Caffin
    BPL Member

    @rcaffin

    Locale: Wollemi & Kosciusko NPs, Europe

    Hi Brad

    > I ultimately saved 8.3 ounces (no dedicated pump sack, lighter clothing sack).

    A photo is REQUIRED!

    Cheers

    #1467430
    Brad Groves
    BPL Member

    @4quietwoods

    Locale: Michigan

    Hi-
    I've been away from my primary residence and camera since last posting… sorry for the delay in getting these up. I'd put more, but they're pretty self-explanatory.

    General overview
    overview

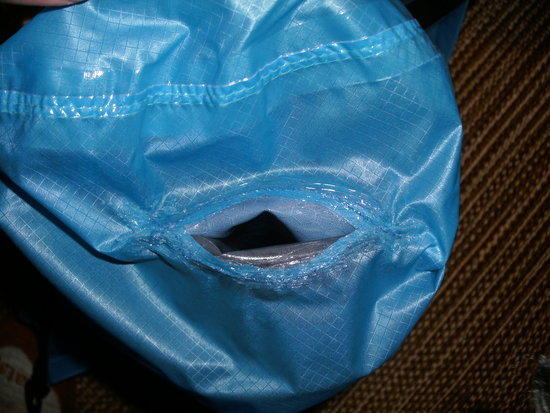

    Inside, after finishing
    inside finished

    Cheers-

    #1467433
    Ken Thompson
    BPL Member

    @here

    Locale: Right there

    Manufacturers are you paying attention?!

    #1467449
    Dale Wambaugh
    BPL Member

    @dwambaugh

    Locale: Pacific Northwest

    A brilliant idea cleanly executed. Well done!

    I wonder of you could use that for a trail shower too?

    #1467867
    Roger Caffin
    BPL Member

    @rcaffin

    Locale: Wollemi & Kosciusko NPs, Europe

    That's rather neatly done.
    How well does it work?

    Cheers

    #1468028
    Keith Selbo
    Spectator

    @herman666

    Locale: Northern Virginia

    Trail shower is another brilliant idea! I'll try that on my 100 mile AT hike this summer, and report back. By the way, maybe this thread should also be posted in the Multiple Use Gear section.

    #1468031
    Roleigh Martin
    BPL Member

    @marti124

    Locale: Founder & Lead Moderator, https://www.facebook.com/groups/SierraNorthPCThikers

    On a 16 day hike on the JMT last summer, my friend had the trail shower and he did not like it at all, he returned it when he got back. I think it was because it did not provide adequate shower-water flow, I don't know for sure.

    #1468046
    Brad Groves
    BPL Member

    @4quietwoods

    Locale: Michigan

    Thanks for all the great feedback!

    Hi, Roger-
    Really does work beautifully. Cuts my inflation time 30-40%, much less hassle (don't have to unroll, open, fluff, re-roll, and compress nearly as much). Easier to burp air out when using as dry sack. I'm considering trimming down a cork to stick in the valve for absolute waterproofness.

    Dale, Herman, Roleigh–Well, water would flow out of it, but I'm pretty sure the water would come out at whatever temp you put it in. 42*F stream water will give you an ice-cream headache shower.

    #1468057
    Kyle Purcell
    Member

    @dufus934

    Locale: North Texas

    Brad,
    Great job! Sounds like a pretty easy project with some good weight savings. This makes me want to bring the sewing machine out of hiding.
