Backpack frame and sleeping bag

Viewing 6 posts - 1 through 6 (of 6 total)
BPLwiia BPL Member
PostedSep 11, 2017 at 2:47 pm

I have a McHale pack (SARC) and the internal frame has several screws at the bottom of the frame and at the bottom of the pack.  I’d like to cover the screws up so they don’t cut any of my sleeping bags. Never worried about in the past but just bought a new WM sleeping bag and EE quilt and don’t want to ruin them.

In the past, I used duct tape but I’d rather do something more secure if there is a workable solution. Below is a picture of the screws which are located on either side at the bottom of the pack.

Any thoughts that would cover the screws securely?





MJ H BPL Member
PostedSep 11, 2017 at 4:33 pm

Why not put washers under the screws until those nuts are flush with the top of the bolt? Or find the kind of nuts with rounded tops to put over the ends of the bolts. Take the nuts you have to Lowe’s or Home Depot and you can find the right size.

David Thomas BPL Member
PostedSep 11, 2017 at 5:10 pm

Those nuts are called “cap nuts”, and, yes, Lowes and Home Depot have them, typically in drawers with other speciality fasteners.  But those aren’t lock-nuts like the ones McHale used on the pack. I’d have a little concern that a non-lock nut would slowly loosen (but a lock washer or some Loctite applied to the threads would help).

Some electrical tape wrapped around the bolt ends would be quick, easy and last a pretty long time.  Always cut electrical tape with scissors instead of stretching it until it breaks.  The cleaner edge from cutting will stick more securely.

You could hacksaw off the excess threads and then sand it smooth.  That would weigh LESS instead of MORE.

BPLwiia BPL Member
PostedSep 11, 2017 at 5:56 pm

Excellent suggestions, thank you!

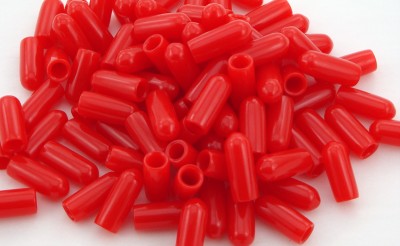

On a wing and a prayer, I went to four different hardware stores and one local (not a box store) person suggested rubber screw protector caps. Never heard of them but they are a stretchy cap that fits over the bolt and nut. He fished around with a few different sizes and, voila, he found caps that fit tightly and securely.

David Thomas BPL Member
PostedSep 11, 2017 at 6:09 pm

Looks like you found a great solution.  Very easily reversible, too.

In case someone else needs a different answer, you could use Plasti-Dip to coat the threads.  I usually use it to create softer, grippier handles on my DIY UL saw blades and such, buy you could apply a few coats to those threads with a disposable paint brush or Q-tip, letting it dry between each coat.  About $9 a can.  Once opened, it dries out in 6 months.  I’ve also coated the tops of tent pegs to make them more visible and easier to push in by hand and the backs of razor blades for better cushioning an grip.

MJ H BPL Member
PostedSep 11, 2017 at 8:12 pm

Those caps are nice. Certainly easier than using a hacksaw and more protective than more metal nuts/washers.
