MYOG Campfire Grill

  • This topic is empty.
Viewing 6 posts - 1 through 6 (of 6 total)
Craig J. BPL Member
PostedJun 19, 2014 at 9:52 am

Thought I would share a couple photos of a grill I put together for a recent trip. I used stainless steel woven wire mesh from amazon and a couple of 1/8" x 18" aluminum rods I got from McMaster Carr. The aluminum rods sagged a bit in the heat with some sausage on them. The grill definitely wouldn't hold a pot of water. I'm thinking Ti bicycle spokes may be stiffer or Ti rod. To build, I cut the wire mesh to 12" x 6" and bent over the ends of each wire and then threaded the Al rods through the mesh at each end and in the middle. It all comes apart for packing. I strapped the rods to the side of my pack and put the mesh in a tyvek mailer (to keep the grease and soot off the pack). Total weight: 3 oz.

Here's the pics:

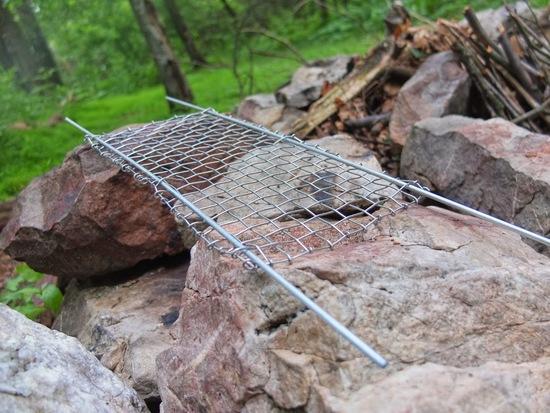

grill1

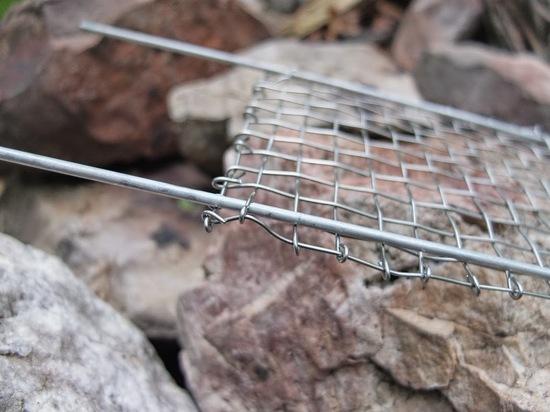

grill2

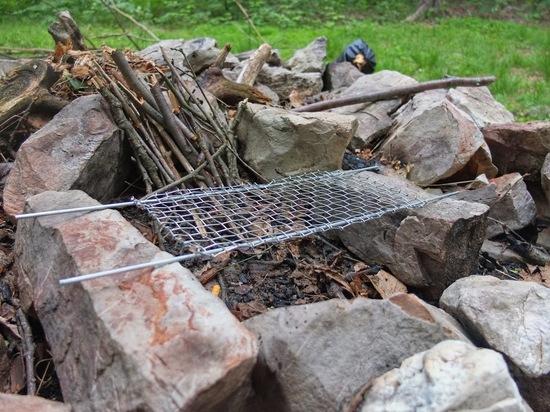

Set up on rocks

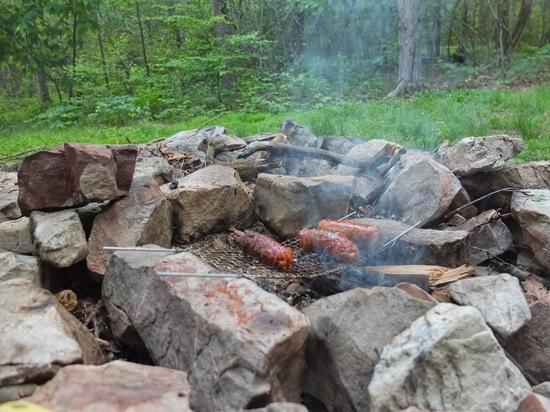

in action

PostedJun 19, 2014 at 5:08 pm

I like it. The mesh is a great idea. Defenitly lighter than regular stainless grill. Maybe some middle supports going down into the coals. How do you think the mesh would hold up over time?

Craig J. BPL Member
PostedJun 19, 2014 at 6:40 pm

I think the stainless will hold up, but I'm only going on 2 cooks. The aluminum rods were the weak point. The picture showing the sag was night one of a 2 night trip. I just bent the rods back more or less straight and we used it again. I'm going to get some titanium rod and try that. If that doesn't give as much you could put a pot of water on there and not worry about a stove.

Chad B BPL Member
PostedJun 20, 2014 at 1:09 pm

I've never eaten sasquatch penis, how does it taste?

PostedJun 24, 2014 at 5:23 pm

"I've never eaten sasquatch penis, how does it taste?"

None of us believe you, Chad. I bet you know EXACTLY what it tastes like.

Gary Dunckel BPL Member
PostedJun 24, 2014 at 5:35 pm

Craig, my suggestion is that you go with stainless steel rods to support the sides of the grill. Get some .125" diameter rod somewhere, and that should solve your sag problem. I make the Zia titanium grills, and a few people have mentioned that their grills sagged horribly when supporting a heavy load over a very hot fire. I played around with some options to add support along the sides of the grill. While .125" diameter titanium rod helped a lot, it still tended to sag a bit over time. The real winner was .125" stainless steel rod, which hardly sagged at all. It's a bit heavier, but not prohibitively so in your application. The titanium will be more expensive, especially since you would be buying just a few feet of rod. Titanium Joe can sell you whatever amount of titanium rod you want, but the shipping is fairly hefty for small amounts of it. Metals4U.com would be the place to get the stainless steel rod, and their shipping from I think Texas is reasonable.
