ULA Circuit – A Successful Navy Blue Dyeing Session

  • This topic is empty.
Viewing 18 posts - 1 through 18 (of 18 total)
PostedMay 21, 2014 at 8:52 am

I recently purchased a ULA Circuit in the color 'Purple Blaze' with the intent of dyeing it dark blue. I figured that since purple is right next to blue on the color wheel, the pack would be able to easily go from a purple to a blue (as opposed to those who have unsuccessfully tried dyeing their green Circuits blue, only to end up with a black color).

Since it all worked perfectly, I thought I would share the process with those interested.

All you need is…
-ULA Circuit in the color 'Purple Blaze'

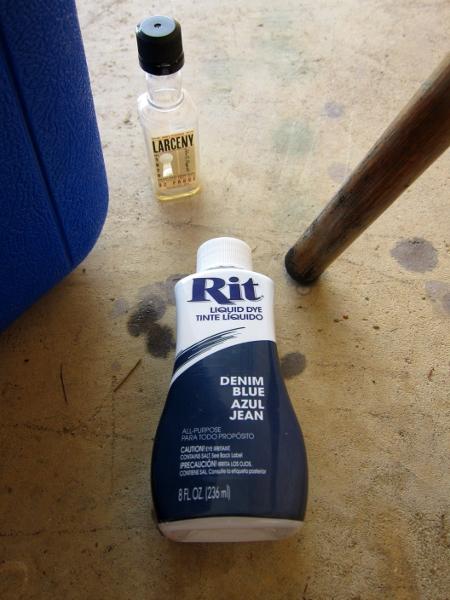

-RIT liquid dye 'Denim Blue' (though 'Navy Blue' may work too, I used the denim b/c it was a bit of a brighter blue and I heeded not to accidentally dye the pack too dark)
-large ice chest with lid, or 5 gallon bucket (My guy had the idea to use an ice chest so as to keep the water toasty. Great idea!)
-broom handle, or other poking/prodding/stirring device
-latex gloves (unless you don't mind a lovely frostbitten color, as my hands are now)
-trash bag (to lie on ground in case of drippage)
-3 gallons of boiling (or close-to-boiling) water
-2 or 3 large rocks (to weigh the pack down in the water/dye)

The process…
Step 1 – Boil 3 gallons of water (a 12 quart pot fits 3 gal. perfectly)
Step 2 – Put pack face down in ice chest (for maximum exposure to water/dye)
Step 3 – Dump boiling water into the ice chest
Step 4 – Pour RIT dye (I poured into the four corners of the chest to be more evenly dispersed)
Step 5 – Use broom handle to poke/prod/stir the pack into the mixture, making sure all of the fabric-to-be-dyed is submersed

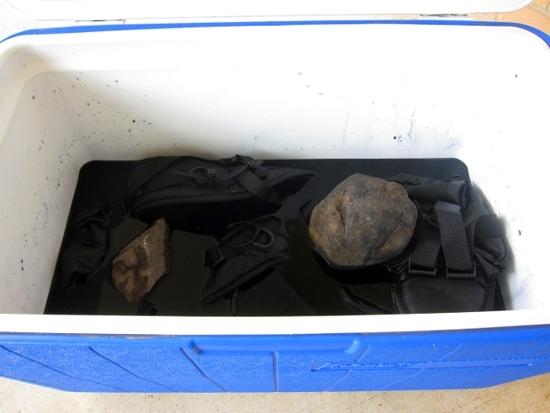

Step 6 – Place large rocks on top of pack, weighing down the colored fabric into the water
Step 7 – Close the chest lid, and relax for 10 minutes before repeating Step 5 again; repeat the process every 10 minutes or so for the next ~45 minutes
Step 8 – Transfer the pack out of the chest and into the washing machine
**Washing machine- delicate cycle, small load, cold-cold (to set the dye), no soap
(This won't mess up the washing machine; I just ran an empty load with soap after I finished in order to rinse out any lingering dye)
Step 9 – Air dry the pack, or put in the dryer with no heat on the 'air cycle'

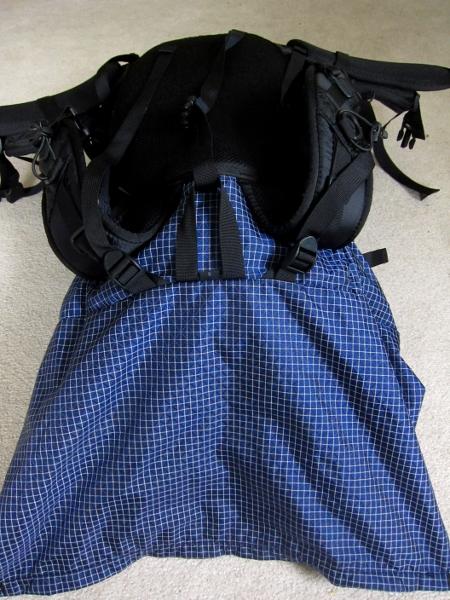

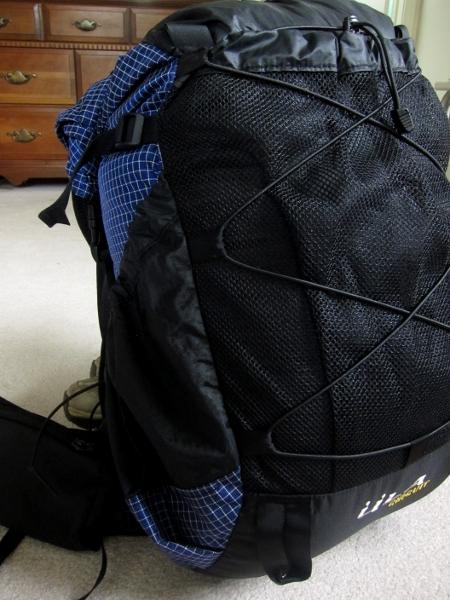

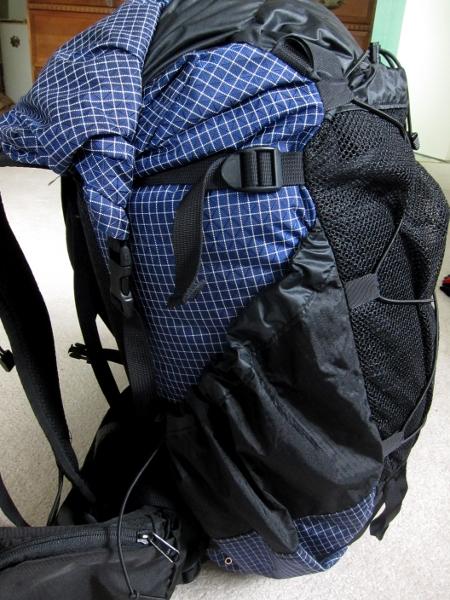

Voila! A successful ULA Circuit in the color navy blue.

–Here are some photos, though I didn't take a 'before' picture, but you can see the color 'Purple Blaze' on ULA's site as their background http://www.ula-equipment.com/ (already sort of a blue color, but still purple)123654

Valerie E BPL Member
PostedMay 21, 2014 at 9:18 am

It looks great, Virginia!

My only concern would be whether the blue dye that got on the hipbelt/shoulder straps would, over time, leach onto my shirt where it contacted my back, chest, and hips. (Especially because of the combination of heat and sweat/moisture in those areas.)

PostedMay 21, 2014 at 9:23 am

Thank y'all!

Valerie, there have been people that have dyed their packs before and they claim that, over time, the dye does not leach. Should be golden!

Eric Osburn BPL Member
PostedMay 21, 2014 at 9:36 am

That looks amazing! I'm really considering doing mine now. Great job!

PostedMay 21, 2014 at 10:16 am

Thanks! If you have any questions that weren't addressed in my how-to, just let me know and I'd be happy to assist :)

Valerie E BPL Member
PostedMay 21, 2014 at 10:32 am

It is SO pretty! (Is that wrong? Should I not care if a pack is "pretty"? But it IS so pretty, LOL.)

I just ordered an SMD Fusion pack, and I wish it wasn't white…so with you as inspiration, I'll consider dying it… (plus the hipbelt and shoulder straps of the Fusion are removable).

Thank you for sharing your method!

PostedMay 21, 2014 at 10:36 am

Nice work Virginia, but gotta say, personally i would have been more than happy with purple (it's one of my most favored colors). But now that it's blue and your hands are too, you can sing that song in your head all day, "i'm blue dadadeedadadeedaahdah, if i was green i would die."

Just a quick suggestion, threads about making or modifying gear fit better in the Make Your Own Gear section.

PostedMay 21, 2014 at 10:47 am

Valerie, color can be therapeutic and morale-boosting, so care if you want about a pack's color! :)

Justin, thanks, now that song is playing in my head. Haha!
Also, is there a way to move this thread to the MYOG section now, or would I have to repost?

PostedMay 21, 2014 at 12:36 pm

Nice-looking pack!

I had similar results dyeing a GG Gorilla from gray to green. I used a 5 gallon bucket, and I did any rinsing and washing in that also.

PostedMay 21, 2014 at 7:10 pm

You could write Roger in the colorful tights, he has the power to move threads. Dave Chenault also i think can move threads. It's not a big deal either way, it was more of a future reference suggestion.

PostedMay 21, 2014 at 10:15 pm

The color looks fantastic. Nice job.

I did a Rit dye on some after-market pockets made out of Dyneema X, and the material expanded a fair bit due to the near-boiling water and dyeing process. They're still usable, but not as effective. Did you notice any expansion of the material when dyeing your pack?

PostedMay 22, 2014 at 4:14 am

No I didn't notice any fabric expansion. Everything seems to be exactly the same except for the color.

And thanks, Justin! I had just reposted it in the MYOG section for those who may have missed it, and who may want to do the same.

PostedMay 22, 2014 at 5:42 am

dumb question(s)….

how did you keep the dye off the embroidered labels in the front?
And I assume the black doesn't dye because it's, well, black?

PostedMay 22, 2014 at 5:52 am

Not a dumb question.
The RIT dye won't take on polyester, hence why the thread from the logo remained crisp and clean.
The black is still black, and I am unsure if the dye even affected it. I do know that from others' reports using RIT to dye their packs, that the dye won't bleed off onto clothing or skin.

Josh Thomas BPL Member
PostedMay 22, 2014 at 10:19 am

Nice work! I dyed my Circuit black about 2.5 years ago. Haven't noticed any leached color, nor any adverse effects on the material, etc. Left me with a sleek – dare I say, sexy – pack!

Nico . BPL Member
PostedMay 22, 2014 at 11:00 am

Looks great! I'm feeling motivated to dye my old ULA conduit black now.

Thanks for the step by step instructions.
