HMG Ultamid 2 BPWD custom inner

[K C]

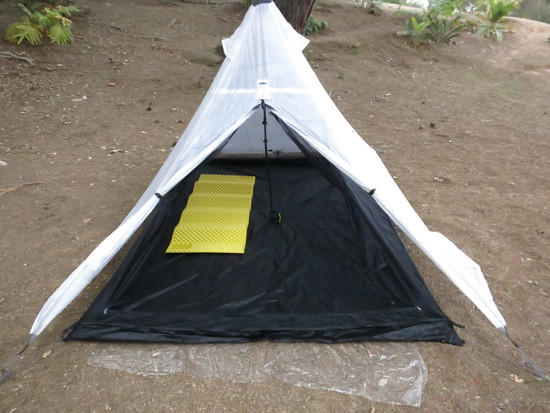

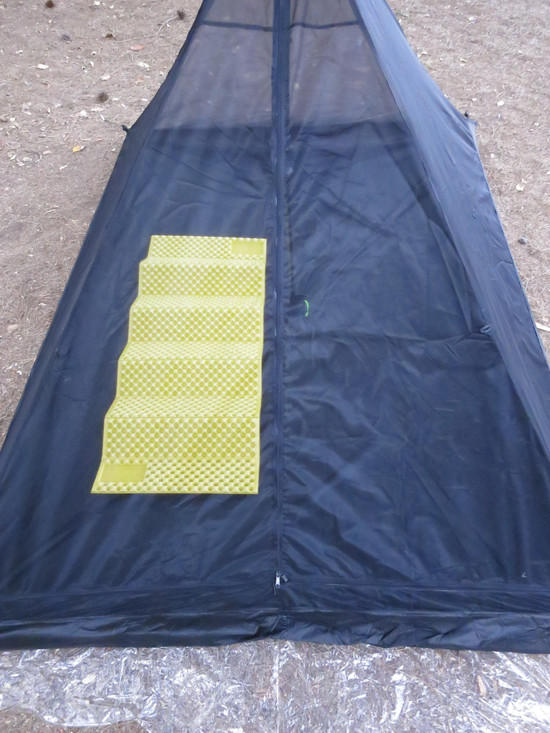

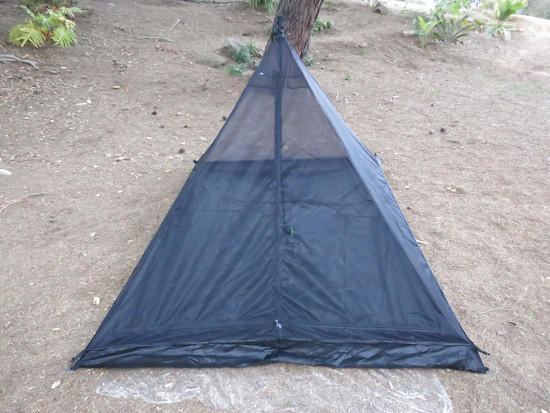

I had a custom BPWD inner made for the Ultamid 2, 73" X 97" X 59" height, 0.8oz mesh upgrade, 30D floor, weight is 21.6oz, inverted T door with YKK#5's. It looks pretty good, I pitched it in about 5 minutes before it got dark so I couldn't dial it in. I plan on doing an inverted V set up with a MYOG Locus Gear DPTE. Also, the walls of the inner can be shock corded to the HMG walls for more inner space. Only problem would be entrance exposure when raining, but you could just crawl in quick from the bottom, I'll have to make a MYOG cuben porch. 4 stakes needed, 2 lb 6oz double wall that could fit 3 people or a palace for 2, the thing is huge and tall. Time to get up to the Sierra!

[Travis Higdon]

Thanks for taking time to share a few pics. It really looks great. As someone who has recently started using the UltaMid 2 I've been looking at a number of bug options. Right now I'm just using my MLD superlight bivy, but that's not a great option for 2 people.

As far as sizing goes, it looks like you went with a length and width that are about 10" short and a height about 5" short compared to the UltaMid 2 measurements. Did this actually translate into a 5" space all around when pitched to the ground? If so, do you think you could have gone any bigger with the net? I've only used this in snow and freezing rain, but I imagine that I'll be pitching this at least 4-6" off the ground for 3-season use. I wonder if that would allow for a larger net tent. I figured that any time I'd need the mid pitched tight to the ground (high winds, nasty blowing rain) the bug load would be pretty reduced anyway. Maybe that's just PNW thinking.

I'm not sure either how to handle the door. I actually considered reducing the length of the net tent even further on the door side to leave a bigger vestibule space between the "sleeping area" in the net tent and the wall of the mid. That might help keep rain out when entering and exiting. I don't know, we'll see. Please keep us updated on how you like it!

[K C]

I went with a 5" reduction all the way around, like the MLD inners, it seems perfect. I wouldn't make it any bigger, perhaps smaller in the front for exposure reasons, and it would be lighter. I usually bring an extra cuben tarp for hanging around under when raining so I'll just pitch it over to make a awning.

[Travis Higdon]

Is it possible to pitch this after the Ultamid is already pitched? That would be a nice option if you're making camp in the rain.

[J Mag]

That thing is awesome

I spent 20 years in Florida and that would be perfect for down there. Lots of mosquito free room and easy to pitch even on the beach or sandy soil.

I'm sure it's perfect just about anywhere actually. Good stuff.

[victor larivee]

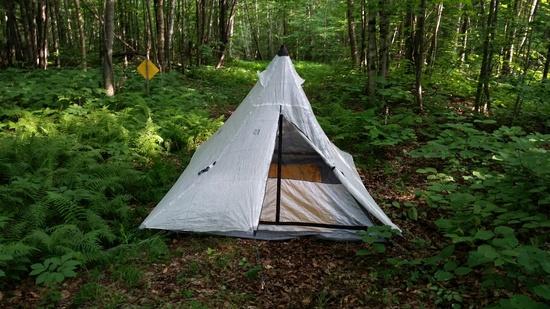

Thanks KC for all your insight, I love the new combo. This is same bearpaws net tent (same dimensions) as KC with an additional 20" of cuben added to the front for rain protection.

[Derrick White]

Victor – Did you go with a cuben floor?

Thanks
Derrick

[victor larivee]

In the picture it might look like the floor is cuben but there is only about 1" of cuben under the zipper before it is sewn to the silnylon ( 30D-color is gray not black).

I am still a little concerned with Cuben as a floor material.

[Derrick White]

Thanks Victor.

I too am concerned about cuben floors. I am in the midst of designing an inner for my Ultamid 2 and have been struggling for months with the floor material choice.

Derrick

[Peter S]

Hi guys, these setups look really good.

How many loops are there, and where are they situated on the inside of the Ultamid?

Thanks

[victor larivee]

There are only two attachment point at the top inside the mid, not useful with the inner. I plan on adding 3 additional loops on the inside of the mid, 1 in the middle of each side panel (not the door panel). These will mate up with the middle tie out loops already on the outside of the net tent. I will be ordering the 2.5" x 2.5" cuben Stick on Loop from zpacks.

[Peter S]

Thanks Victor. That's what I thought. And I would do the same with the zpacks ad ons.

I wish HMG would make an inner in choice of different wall materials. Here in Scandinavia I would almost always prefer at least half solid walls on the innertent.

[Derrick White]

When I bought my tent, I asked for attachment points. HMG sent 6 circular (2 inch) diameter stickons with tiny D rings. Will post picture if you like. They are a little neater and cleaner looking than the ZPacks. You may want to ask HMG.

Derrick

[Peter S]

Derrick, thanks, those sounds nice. You don't have to post a picture, I can only imagine that they are good looking coming from HMG themselves.

Now I should go and purchase a ultamid 4…
