Topic

Attaching gossamer gear tips to poles?

  • This topic is empty.
Viewing 5 posts - 1 through 5 (of 5 total)
Nick Smolinske BPL Member
PostedFeb 24, 2014 at 9:02 pm

So I was inspired by several posts I've read on bamboo trekking poles, and decided to order some trekking pole tips from GG when I got a thinlight a couple of weeks ago. Unfortunately, I haven't found anything suitable to use as a "double male" to fit inside the trekking pole tip. I found the bottom half of a golf club (with the club already taken off) and it was too wide to fit more than half an inch into the tip. Same with the bent aluminum ski poles that I got for free.

Has anyone done DIY poles with these tips and found something that fit all the way inside? I'm thinking aluminum rather than carbon fiber (it should be all shear strength and not tensile). I might be able to make something out of wood fairly easily, but I don't know if it would be strong enough.

And of course, I've been trying to match the taper of the tip. There may well be something completely outside of the box that I'm missing here. Maybe just a thin rod that fits down, and forget about the taper? I could make up the taper by just filling the entire gap with epoxy. When I worked for a conservation corps we had a 16 pound sledgehammer that we epoxied the loose head on, and it took an amazing amount of abuse. Any recommendations on epoxy? I might ask my old boss if he remembers what we used on that sledge…

Dale Wambaugh BPL Member
PostedFeb 24, 2014 at 9:53 pm

I had the broken bottom section from a typical aluminum trekking pole and cut it off so I had 3" of aluminum shaft left sticking up from the plastic tip. I cut a bamboo staff off at the joint, leaving the hollow section open. I just glued the aluminum shaft in with silicone adhesive. Epoxy would be good if the fit was relatively tight, but the silicone was fine. I assume you get some shock absorption with it too. You could use polyurethane (Gorilla) glue too.

If the shaft is thick enough at the top, all you need to do to mount a strap is to bore a hole straight through and slip a loop of webbing through with a fat knot on the other side. For a thinner shaft you could lash the loop on, like whipping a rope end.

My version wasn't any lighter than a typical aluminum pole, but the natural material had a nice feel. If you can find bamboo of the quality of the old cross country ski poles you might end up with a fairly light pole.

So, for you male-male connection, a section of aluminum pole or perhaps a golf club shaft should do the trick. A chunk of old ski pole shaft might work too. I'm think that as tapered end would be best to naturally fit into the pole tips.

BTW, you can buy replacement tips from Black Diamond too.

Nick Smolinske BPL Member
PostedFeb 24, 2014 at 10:23 pm

I like the strap idea, that's more or less what I was thinking of doing. I'll probably put on a 3/4 inch webbing strap and not bother with a grip and see how that goes. I find the strap more important than the grip for the way I use poles.

It's interesting that yours weighed as much as aluminum poles – other reports I read were giving weights in the range of 4-5 ounces per pole, which would be half the weight of my current aluminum poles. I guess I'll see what I find at walmart. Maybe I'll walk in there with my scale tomorrow. ;)

I'm still not sure what I'll use as a double male, unless I get black diamond tips – I don't think any golf clubs will seat fully into the GG tips. But I'll try a long bolt or threaded rod. An alternative would be to cut the end off of the aluminum poles and epoxy a bolt into that, then epoxy that whole assembly onto the GG tip.

Do you remember which silicone adhesive you used? Although I think I'm gonna try gorilla glue epoxy anyway, because I don't have anything appropriate in the house, and if I'm gonna buy something I might as well get really strong stuff. The gorilla glue epoxy is also advertised as gap-filling, which is essentially my application.

PostedFeb 25, 2014 at 7:09 pm

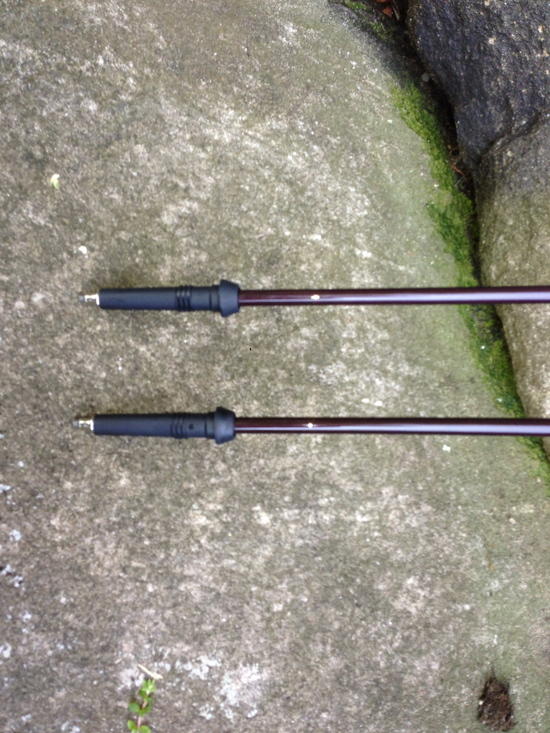

I used these tips with golf driver shafts. Just jammed them in with some two-part epoxy. fit perfectly. Very solid.GG tips on golf shafts

Nick Smolinske BPL Member
PostedFeb 26, 2014 at 7:04 pm

David, did the shafts go all the way into the poles? If not, how much have you used them? I just don't trust the plastic on the tips to be load-bearing. I have a golf driver shaft, but it only seats in about an inch. It feels solid if I jam it in there, but I just don't trust it.
