    Here's the latest test version of my myog external frame pack.

    here

    here

    here

    I've been fiddling with this basic design for 15 years or so. I started with a 5 lb MSR external frame pack and kept reducing weight while maintaining function and capacity. I've posted other versions here before.

    The pack in the photos weighs about 6.8 ounces (pack, frame, full suspension waist belt and shoulder straps) and has a back bag capacity of about 4000 cubic inches. Stuff can also be lashed to the top bar and a front bag can be added. So the potential capacity can be increased to the 6000-7000 cubic inch range. I'll be testing it over the winter with daily trips to the gym and grocery store. I routinely carry 30 lbs or less but have carried 40 lbs in/on previous versions.

    The pack can be taken apart and put back together without tools in a few minutes. Here is a group shot of the components prior to assembly. Left to right: (1)vertical frame spars (Skyshark 300s)=1 ounce (2) Shoulder straps and top bar of frame=2 ounces (3) waist belt = 2.1 ounces (4) Back bag = 1.7 ounces Total Ounces = 6.8.

    here

    Here are individual shots of items 2-4.

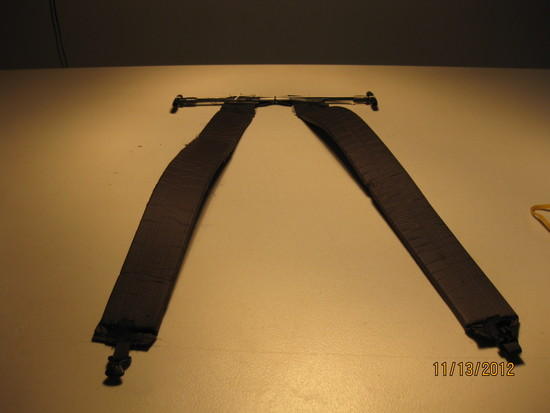

    (2) Shoulder Pads and Top Bar=2 ounces

    here

    (3) Waist Belt = 2.1 ounces

    here

    (4) Back Bag =1.7 ounces
    Back bag is a simple flat bag 26" wide X 30" tall) made from Thru Hiker's Momentum 50 fabric.

    here

    #1928062
    d k
    BPL Member

    @dkramalc

    Looks like you've updated the connections from the top bar to the side spars. What are you using there now?

    I'd also love to see more detail on how the side spars connect to the waist belt.

    I like that you keep refining this pack. By the time I finally get around to trying one myself, you should have it perfected ;)

    #1928079
    Daryl and Daryl
    BPL Member

    @lyrad1

    Locale: Pacific Northwest, USA, Earth

    dk,

    "Looks like you've updated the connections from the top bar to the side spars. What are you using there now?"

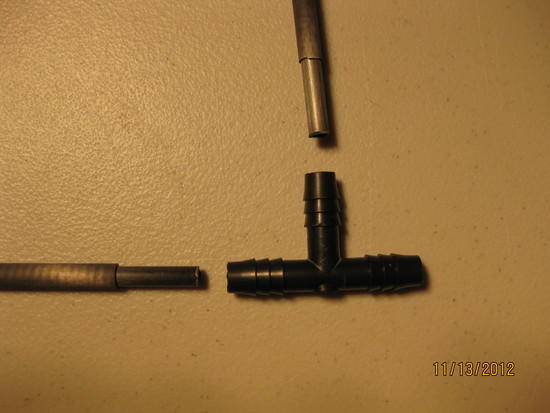

    Photo below shows the latest incarnation of my top corner connections. The larger diameter tubing is a wrapped Skyshark. The smaller diameter ferrule is .24 inch od pultruded carbon fiber tubing. Barbed fitting is 3/8" od. The id of the fitting is too small for the Skyshark to enter. The od of barbed fittings is specified. The id is variable, depending on the maker. I think the one shown is from McMaster-Carr.

    here

    "I'd also love to see more detail on how the side spars connect to the waist belt."

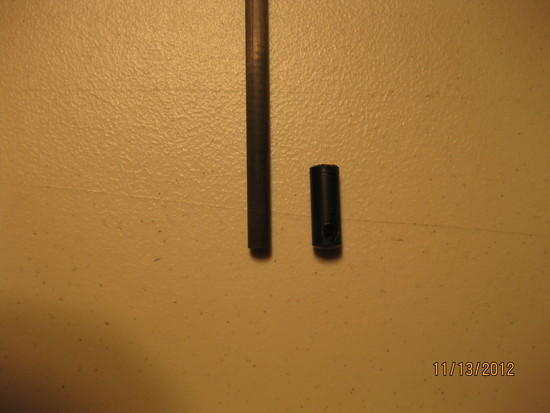

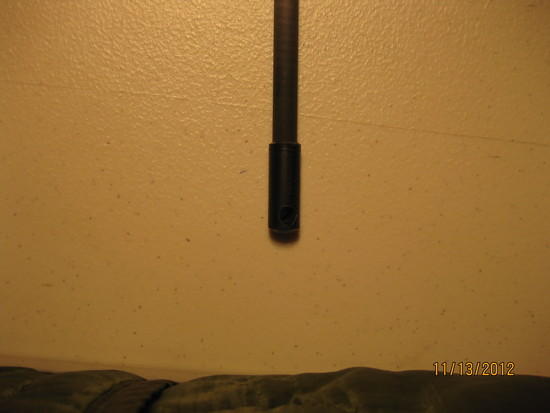

    Photos below shows how they are connected. A Skyshark end cap from Kitebuilder.com is simply tied to a webbing loop on the the waist belt (see small hole in end cap) and the bottom of the Skyshark is inserted.

    here

    here

    here

    here

    Neither of these newer ideas are well tested. Time will tell.

    #1928193
    Sam Farrington
    BPL Member

    @scfhome

    Locale: Chocorua NH, USA

    Great idea to use the PVC or ABS plumbing T's at the top corners.
    Still on the cutting edge of the ultimate ultralight pack.

    Ummm – What do you use for a rain cover over the M50?

    #1928197
    Franco Darioli
    Spectator

    @franco

    Locale: Gauche, CU.

    Looks to me that the center of balance is still way away from your body so negating the weight advantage.

    #1928204
    W I S N E R !
    Spectator

    @xnomanx

    Can't help but notice Enstrom's "Grace" on the wall behind you.
    Though I'm not a religious man, I've always loved that image.

    Reminds me somewhat of Caravaggio's "St. Jerome in Meditation"

    1

    Sorry…carry on.

    #1928253
    Daryl and Daryl
    BPL Member

    @lyrad1

    Locale: Pacific Northwest, USA, Earth

    Samuel,

    "Ummm – What do you use for a rain cover over the M50?"

    I put sleeping bag, dry clothes, and anything else I want to keep dry in a trash compactor bag. I don't use a pack cover. I just let the rain run through and out. I switched to non-waterproof pack fabric many years ago. I guess you could call me a maverick.

    Come to think of it I think Kelty used to make packs out of uncoated nylon.

    #1928259
    Daryl and Daryl
    BPL Member

    @lyrad1

    Locale: Pacific Northwest, USA, Earth

    Franco,

    "Looks to me that the center of balance is still way away from your body so negating the weight advantage"

    The photo probably says more about me than the pack. I have a very curved back (think turtle) and, for me, all packs tend to lean backwards like you see in the photo. I typically use a front bag which moves the center of balance forward so there is no backward pull. To address this problem with my old MSR pack I would carry heavy things near the top and then let the pack tip forward a bit to move the center of gravity forward. With any pack I typically attach webbing to the top corners of the pack frame and use them as arm rests in the front of my body. That pulls the pack forward and balances things better. I'm probably not the best person to be modeling backpacks. I think I'll go back to modeling lingerie.

    My wife and friend also use packs I made for them (same basic model) but have straighter backs and don't have my problem. See photos below.

    same

    here

    My wife just returned from Nepal and she used her myog pack so I can now say this pack has gone to the Everest base camp. (whoop t doo)

    Here's another photo of me, with front bag, and things more in balance.

    same

    #1928268
    Daryl and Daryl
    BPL Member

    @lyrad1

    Locale: Pacific Northwest, USA, Earth

    Bucktoof,

    That picture is often in my photos and is often commented on. Seems to be very popular. My wife's parents bought it many years ago because they liked it and their last name was Enstrom. Also strikes me as similar to the one you posted.

    #1928436
    Sam Farrington
    BPL Member

    @scfhome

    Locale: Chocorua NH, USA

    If you wanted to, you could add a couple horizontal cinch straps to pull the weight more forward. That you haven't says to me the CG has not been an issue.

    Oh yes, the compactor bag in the pack. Didn't think of that. Thanks.

    #1928546
    Mark Dijkstra
    Member

    @markacd

    I will make a pack like this for myself. I need to finish my tent first though. A sleeping bag is also a little higher on the list as well.

    #1928552
    Daryl and Daryl
    BPL Member

    @lyrad1

    Locale: Pacific Northwest, USA, Earth

    Mark,

    I've made tents and packs. This pack is way easier than a tent. I've tried to keep it easy to construct and the process easily breaks down into simple, independent steps. The main parts are made separately and then everything is lashed together at the end. For experimenting it is very easy to swap waist belt, bag, vertical spars, shoulder straps, etc. So you can make one part at a time and use any existing waist belts, bags, shoulder pads, etc. you might have until you can get around to making new ones. In other words you can approach the project incrementally.

    I haven't made a sleeping bag but I'm guessing it is more difficult than either a tent or a pack.

    So after you finish the sleeping bag it will be all down hill for you difficulty wise.

    #1928976
    Mark Dijkstra
    Member

    @markacd

    That may very well be, but I have a backpack which I'm, for the time being, very happy with. I'm already working on the tent, so that one needs to be finished first and I need a new sleeping bag. My current bag is far too cold for where I usually take it and my other bag is too small and narrow. So it's not only what I want to make, but also what I need which determines my priorities.

    #1929789
    Jeremy Platt
    BPL Member

    @jeremy089786

    Locale: Sydney

    Hey Darryl,

    Great design, very stripped back and minimalist. I especially like the ability to add front pockets without adding the complexity of other front pocket packs.

    #1929865
    Daryl and Daryl
    BPL Member

    @lyrad1

    Locale: Pacific Northwest, USA, Earth

    Jeremy,

    Yes, front packs are very easy to add. You can hang or clip whatever you want from the top corners of the frame and let it hang in front of you. Adding a tether of some sort from the front bag to the two vertical spars of the frame keeps the front bag from swinging when you lean forward. A typical front bag, depending on size and materials, need not weigh much more than 1 ounce.

    You can also turn your windbreaker into a front bag. Here's one way to do it:
    here
