I searched this forum, but couldn't find anything on DIY headlamps. Has anybody built their own headlamp? I realize that modern, commercial headlamps are pretty light, with good run times and other features, but there might be some interest by the DIY backpacking crowd.
I stumbled across this guy's website. He has a video and directions with pictures on making a $2 headlamp.
http://www.pcbheaven.com/projectpages/Portable_LED_Head_Light/
I can't help but wonder how this concept could be modified by the UL crowd. Any thoughts or ideas?

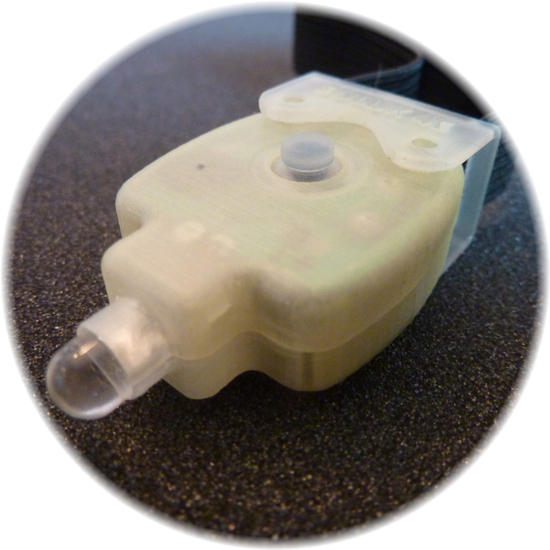

Oct 1, 2011 at 3:22 am #1785453I made this a few years ago. It uses a 1 Watt LED powered by a single Lithium AA using a boost regulator circuit. The main box is 2.5" x 1.7" x 0.9". Total weight including battery is 2.5oz (70g). Cost of parts was considerably more than $2.
Oct 2, 2011 at 1:47 pm #1785830I made this one out of two small LED lights and a headband. It works great and is bright enough for around camp, although it's barely enough for night hiking on a trail. I got caught at night coming down from Vogelsang this summer and the batteries died just as I made it to Merced Lake. W/ new batteries it would probably be ok. Here's a link if you're interested in the details:
Oct 2, 2011 at 3:59 pm #1785862Very nice work guys. I made one earlier this year that came in at 13 grams.
More info here: The O.R.B.
Oct 3, 2011 at 3:56 pm #1786237Very light: 4.5 grams (â 0.16 oz.).

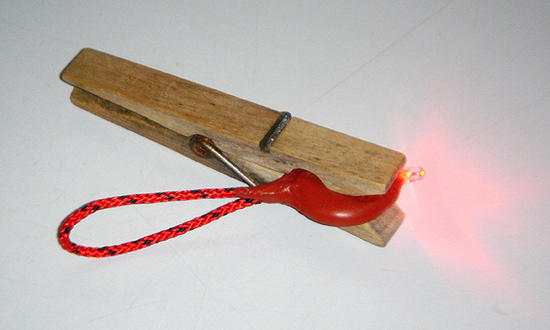

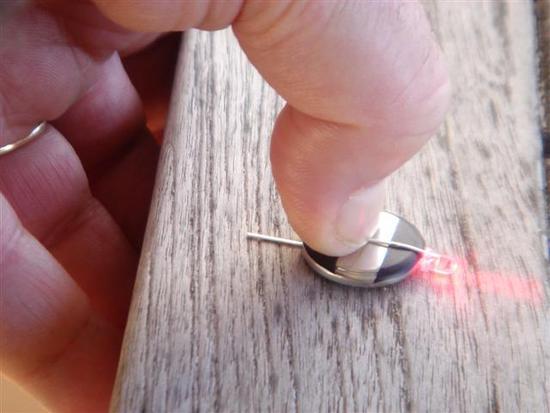

The clothespin is used to show it works.
No secrets – stupidly simple:
Oct 3, 2011 at 7:42 pm #1786309…easily converted into one.
I like the simplicity of that. Looks like you coated the assembly with some liquid rubber type stuff? Does it stay on when pressed, or just when you hold it down?
Oct 4, 2011 at 1:36 am #1786395Hi Steve.
Iâm a great fan of âstupidlyâ simple items (fewer things that can go wrong). The idea isnât mine — I used Rainmakerâs instructions. http://www.trailquest.net/TQaltgear.html#LED
There are several "encapsulation" ideas on Rainmaker's site. I used Method #2 first and afterwards dipped the whole thing in a kind of rubbery paint (thinned it a little). I donât know the word but itâs used for waterproofing roofs. After letting drip down the excessive paint I only had to wipe off the LED âbulbâ. If you go this route, make sure to use as little of the tape as possible; if you use too much, it will either show the wrinkles, or you need too much paint (both -too much tape and too much paint- will unnecessarily increase the weight).
It would be a bit more complicated to turn it into a headlamp because, as you mentioned, it doesnât stay on if you donât hold it down -I think you already supposed so-. This is my back-up lamp. My primary one is a Photon Freedom Micro, sewn to my hat (already posted some pictures of the way itâs attached — could repeat if required). If youâd want the light to stay on, have a look at this (no doubt it will be âa lotâ heavier): http://www.instructables.com/id/Make-A-Mini-LED-Light/
Oct 6, 2011 at 12:50 pm #1787416Stuart, what chip did you use in that circuit? I've looked through that manufacturer's data sheets, and I can't find anything that matches.
–B.G.–
Oct 6, 2011 at 1:28 pm #1787429Oct 6, 2011 at 1:47 pm #1787437Very interesting.
The bare chip costs $4 now, so I don't know if it would be worth my trouble to build one. I could probably do a printed circuit board in one square inch.
–B.G.–
-
