MYOG Monk Tarp

  • This topic is empty.
Viewing 3 posts - 1 through 3 (of 3 total)
PostedAug 20, 2011 at 10:43 am

Hello all!

Last weekend I spent a few hours working on a super easy starter MYOG projec, a simple 5 X 8 silnylon flat tarp.

I used some silny seconds I got around Christmas from BackwoodsDaydreamer as well as Guterman poly thread and grosgrain ribbon for the tieouts.

Sorry i forgot to take pictures in progress but its so simple it doesnt matter :)

All I did was measure out 8 feet off the 3 yards I had ordered and cut the excess. The sil was aready 5 feet wide so i didnt have to cut anything else.

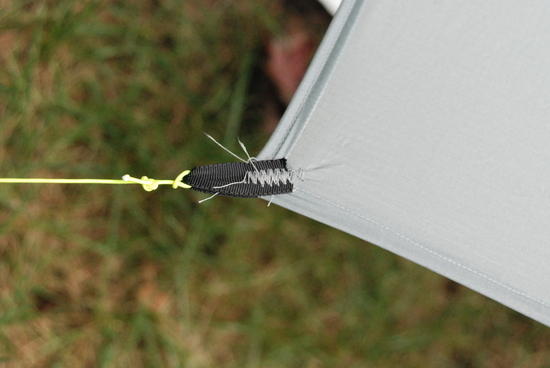

Then I rolled the edges twice about 1/2 inch and sewed a straight stich along that edge. After that all that was left was to sew the 6 grosgrain perimeter tieouts which I did using a zig-zag stich, two mid-panel teiouts (with a square sil reinforcement patch), and a mitten clip for a bivy hood.

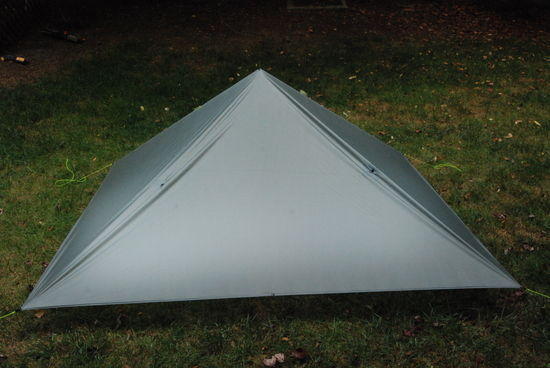

And now, for all to behold!tarp1t2t3t4t5

PostedAug 20, 2011 at 11:36 am

I would reinforce your tie-outs with a sandwich of triangular fabric, capturing the grosgrain, and stitching around the perimeter to distribute the load.

As they are, a Lot of force will be concentrated in a Very small area.

YMMV

PostedAug 21, 2011 at 6:56 am

Nice job Tyler! Thanks for sharing. You look stoked to be under your tarp in that last picture :)
