Topic

New Cuben Backpack

This topic is empty.

Viewing 18 posts - 1 through 18 (of 18 total)

Author

Posts
Jun 23, 2011 at 2:43 pm #1275860

Michael Duke
Member

@mpd1690

Hello all, I finished a Cuben pack today. The pack body is around 1800 cubic in without the collar. The collar adds around 800 or so cubic inches. I am not sure about the pocket capacity, due to the stretch of Lyrca mesh. But with that taken into account, I'd say this is around 50+ L capacity.
I decided to eliminate a front seam needed to attach the closure strap. I was able to do this by running a strip of Cuben sewn to ripstop down the front. This created a solid anchor to attach the closure webbing to, as well as eliminated an extra seam. I also went with a triangle for the closure (pic 4) to disperse some pressure.

The side compression cord is 2.5 mm glowcord. I like having a reflective matterial on packs.
The Cuben is 1.43oz from Joe at Z Packs (I highly recommend him, great service). Green Cuben body, white Cuben collar. The bottom is VX21. The front pocket cuben strip is combined with 1.1oz ripstop nylon. The pack weight, with all removable features (shock cord, side compression static cord, load lifters, sternum strap) is 13.15 oz.

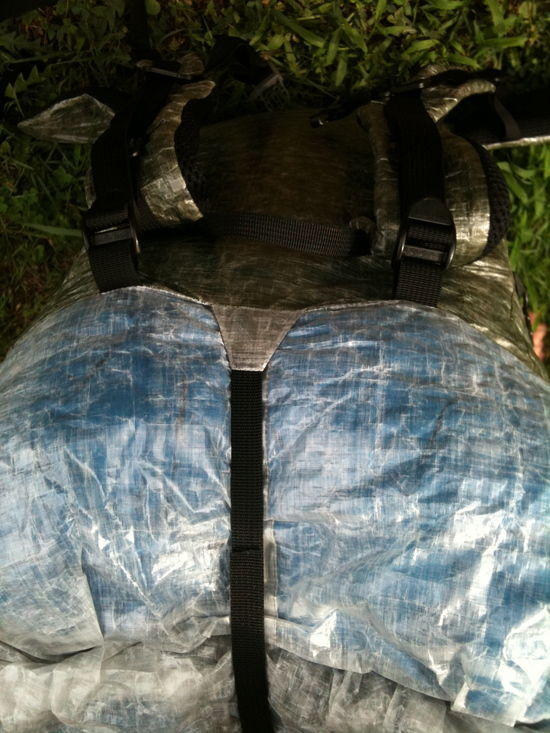

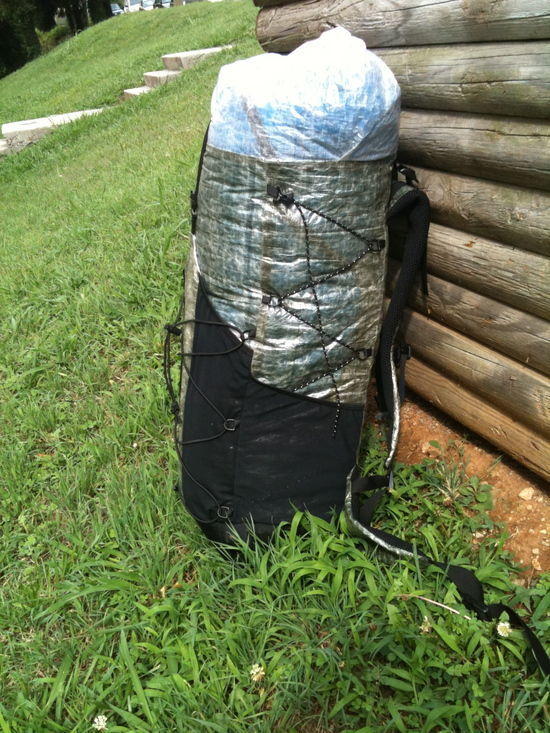

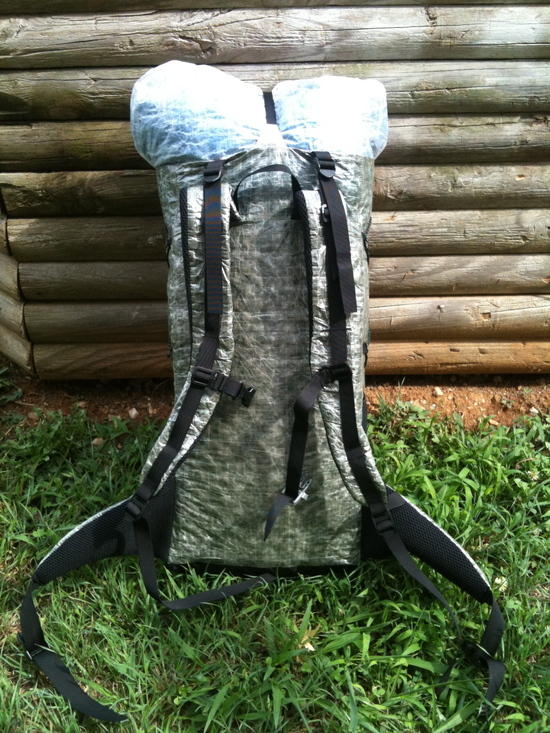

Here are some pictures (any blue seen on top is just my sleeping bag):

Jun 23, 2011 at 3:19 pm #1752584

Levon Jensen
BPL Member

@levonjensen
Locale: Canadian Rockies

awesome!

Jun 23, 2011 at 4:04 pm #1752599

Brendan Swihart
BPL Member

@brendans
Locale: Fruita CO

excellent work! the closure is awesome.

Jun 23, 2011 at 4:58 pm #1752627

Christopher Zimmer
BPL Member

@czimmer
Locale: Ohio

Hey great looking pack, very nice! You are on a roll so don't stop now, whats the next pack going to be? Don't keep us waiting too long :-)

Nice job the pack looks great.

Jun 23, 2011 at 5:03 pm #1752631

Michael Duke
Member

@mpd1690

Thanks, I really appreciate the kind words!

Christopher, I have no idea, but at this rate I'm sure it will be soon ha.

Jun 23, 2011 at 5:34 pm #1752639

John Donewar
BPL Member

@newton
Locale: Southeastern Texas

Lycra, see through cuben, elastic shockcord, mesh, black VX21 and glowcord string compression. This backpack should be Xpac rated. ;-)

Did I get it all? L O L

Being from southeast LA I'm gonna tell you that is quite a "gumbo" you cooked up there 'cher!

If it carries as good as it looks you've got a real winner in that pack.

I really like how you tied in the top closure strap with the front pocket compression for a top to bottom "tightening" effect. This coupled with the side compression and the front bungee cord ought to make for a really tight pack.

Nicely done Michael.

Party On,

Newton

Jun 23, 2011 at 5:37 pm #1752641

Eugene Smith
BPL Member

@eugeneius
Locale: Nuevo Mexico

Lookin' good man.

Jun 23, 2011 at 5:49 pm #1752646

Michael Duke
Member

@mpd1690

Haha yes, Newton, you certainly got it all, except I forgot to add there is ccf foam in the straps ha.

I am taking it out this weekend, so I will get to see how well it carries. I have loaded it down, and my Z-lite transfers weight extremely well. I'll know for sure this weekend.

Jun 23, 2011 at 6:19 pm #1752654

Colin Krusor
BPL Member

@ckrusor
Locale: Northwest US

I agree with John. The design of the closure and the compression cordage is very elegant and clever. It is very clean-looking. Congratulations on an excellent design. The craftsmanship also looks flawless.

Jun 23, 2011 at 6:28 pm #1752658

Michael Duke
Member

@mpd1690

Thank you for the kind words Colin! I'm very excited to try it out this weekend.

Jun 23, 2011 at 7:10 pm #1752672

Carl Holt
Member

@sundown

So is the bottom fabric sewn on top of the cuben to add abrasion resistance or is it instead of the bottom?

Any issues with the seams?

Thanks!

Jun 23, 2011 at 8:03 pm #1752698

Michael Duke
Member

@mpd1690

The bottom is just VX21. The seams are at least double stitched and stress points (anchor points, compression points, elastic top points) are all reinforced with either a box stitch or a bar tack.

Jun 23, 2011 at 10:17 pm #1752748

Jared Dilg
BPL Member

@village
Locale: Texas

Very cool pack! The "skunk strip" really makes it stand out and is a great idea. I'm also a sucker for an XPAC/Cuben combo :-)

Jun 24, 2011 at 5:32 am #1752790

Shane Bailey
Member

@shane112510

Very nice job on the pack, Michael. Love the front pocket/webbing closure. Reminds me of REI's Flash 50, though I'd bet your pack is much more comfortable than that one. Keep up the good work.

Jun 24, 2011 at 7:00 am #1752806

Joey Dawson
Member

@inabag
Locale: Northern VA

Big fan of the closure and front pocket. Will keep that in mind for future projects.

Jun 24, 2011 at 10:35 am #1752880

Michael Duke
Member

@mpd1690

I'm glad you like it. I added pleats to it in order to make up for the lack of stretch from the center stripe, which I think is a good idea if you decide to go this route.

Jun 26, 2011 at 8:30 pm #1753583

Dan @ Durston Gear
BPL Member

@dandydan
Locale: Canadian Rockies

Sweet pack. I love the ULA Ohm style side compression. This system is the best.

Jun 26, 2011 at 8:58 pm #1753587

Michael Duke
Member

@mpd1690

Thanks Dan, I agree with you about the compression. It is light and effective, as well as compatible with a side pocket and lower on the pack compression. I had an overnight trip this weekend. The compression and the way the pack carried were very nice.
