Adhesive Backed Ground Cloth

  • This topic is empty.
Viewing 4 posts - 1 through 4 (of 4 total)
PostedMar 5, 2011 at 5:35 pm

Here’s an idea that might appeal to some of you. How about using adhesive backed carpet protector as a ground sheet. It weighs about 2 ounces per square yard so it would be about the same weight as tyvek.

One could stick it to the bottom of the tent before a trip and leave it there during the trip. It would eliminate the hassle of laying out the ground sheet each time you set up the tent. One could also be quite precise about where to use it so you might get by with a smaller sized ground sheet.

Here’s a link to what I’m talking about.
surface shield

I tested it on samples of uncoated ripstop, urethane coated ripstop, silnylon and mosquito netting. It stuck to all with the best adhesion being on the uncoated nylon and the poorest being on the silnylon. I soaked all samples in water overnight and the film was still adhered to the samples the next day.

I subjected a larger piece (uncoated nylon) to a more rigorous test. I left it outside in the rain and mud for a couple of days and periodically wrinkled it up like I was putting it into a stuff sack. I then dried it out. Film was still well adhered to the uncoated nylon.

I also did a knee test with the product. I placed it on wet muddy ground and placed one knee on it with most of my weight. No water came through.

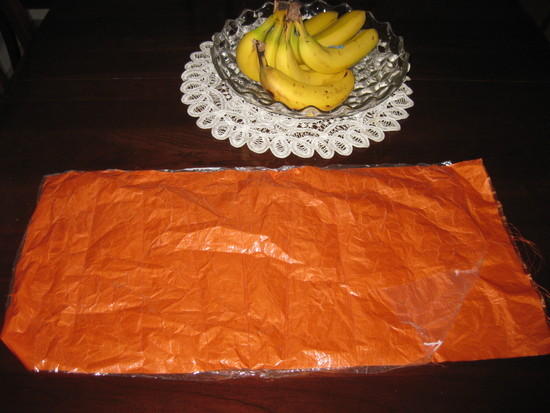

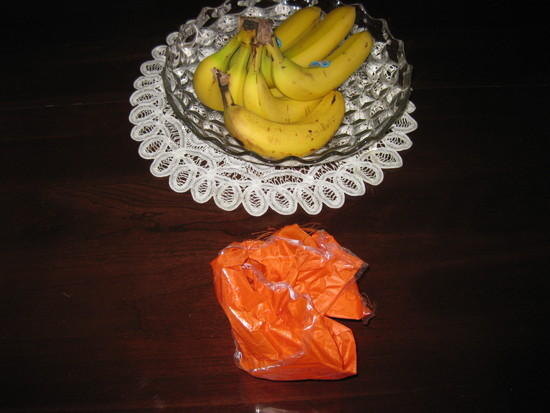

Here are a couple photos of this larger test piece.

Surface Shield

Surface Shield

I haven’t given it a test in the field so there could be some surprises (as always). For example what happens when things get hot or the sun hits it. I’ve only tested it in wet cloudy weather with temps in the 20s and 30sF. The link says it won’t permanently adhere to things if removed within 30 days. But that’s indoors.

PostedApr 4, 2011 at 8:08 am

I left the adhesive backed plastic stuck to the bottom of my tent for a month and recently left the tent up in the yard during rainy weather with water logged ground for about 10 days.

The tent floor still easily passed the all-my-weight-on-my-knee test with no hint of moisture coming through. There was no delamination of the plastic from the uncoated tent floor.

My other concern was that the plastic would permanently adhere to the tent floor so I removed it to check on that aspect. It was stuck very tightly but came off with steady pulling and didn't leave any fragments stuck to the fabric.

This transparent plastic would make excellent temporary (and possibly permanent)patch material.

John Nausieda BPL Member
PostedApr 4, 2011 at 10:17 am

Can it be reused? Can it be stored /rolled up with something like wax paper or whatever adhered to it?

PostedApr 4, 2011 at 11:29 am

Theoretically one could use it. Probably putting it back on the roll would be the best method because that's the way it came.

In reality, however, it would be very difficult to save it back to the roll. It is stretchy and capricious as it is taken off. Sticky seems driven to mate with sticky. Think flypaper.
