Jan 20, 2011 at 5:34 pm #1268009
@jordanclymerLocale: The Columbia Gorge
I have been a lurker on these forums for several months. I decided I would make a diy post as my introduction. I made a really simple, cheap, and light diffuser to help convert a bright headlamp into a table lamp for creating ambient light that isn't so direct and blinding. This is great for lighting up a tent, or as a light source for playing cards, ect.

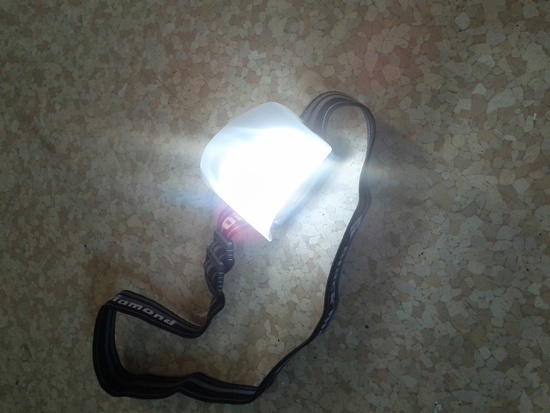

A before and after shot of my diffuser in action.

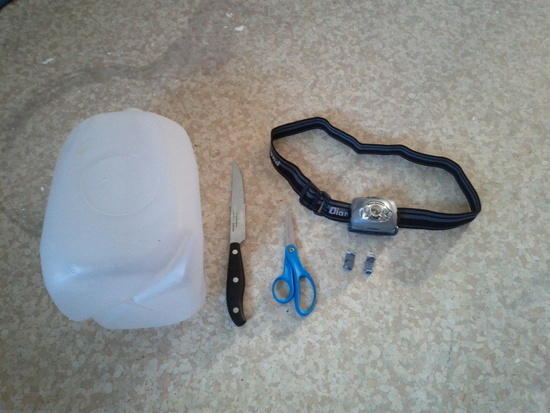

So the list of materials needed are:
1- semi-opaque milk/juice jug
2- small pieces of sticky sided velcro
1- pair of scissors
1- small paring/steak knife (optional)

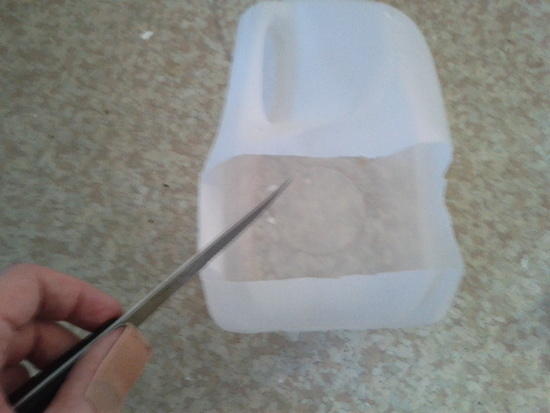

First, rinse out the milk jug. Then, using the knife, cut out a strip of plastic. Try to find the flattest portion plastic.
Now roughly shape the piece of plastic to a rectangle shape. Keep it long enough to reach across the length of the lamp.

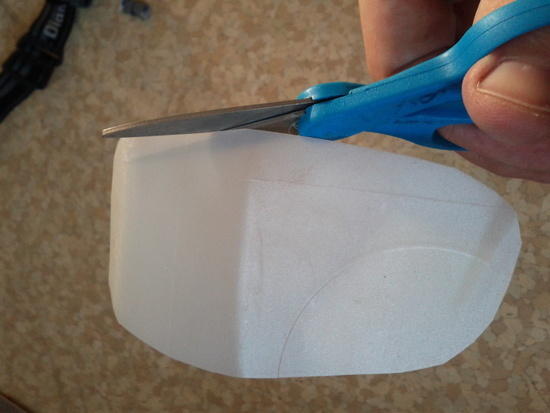

Round off the edges to make sure it is smooth so you don't risk cutting/puncturing anything with the corners.

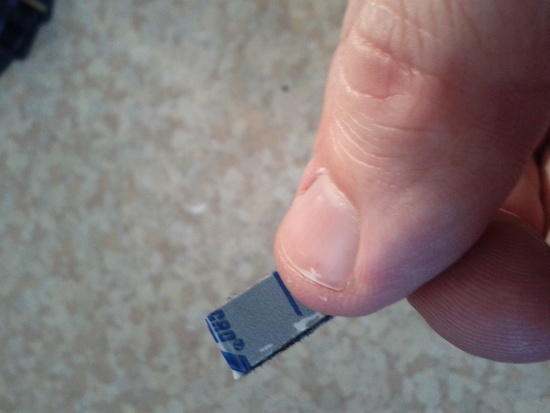

Now take the velcro and cut it into two small squares.

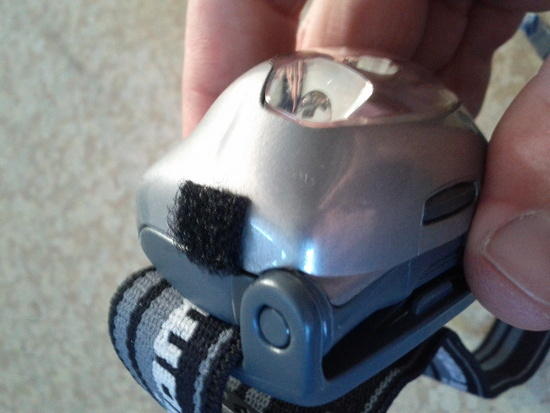

Peel off the backing for the fuzzy side and attach it to the lamp. One tab on each side.
Now put the hook side of the velcro onto the fuzzy side thats on the lamp. Before peeling the backing, do a mock up with the plastic to make sure it is in the right position. Then peel off the backing and adhere it to the plastic. The reason you want the hook side on the plastic is so you can secure it on to other things. I attach mine to the elastic headband.

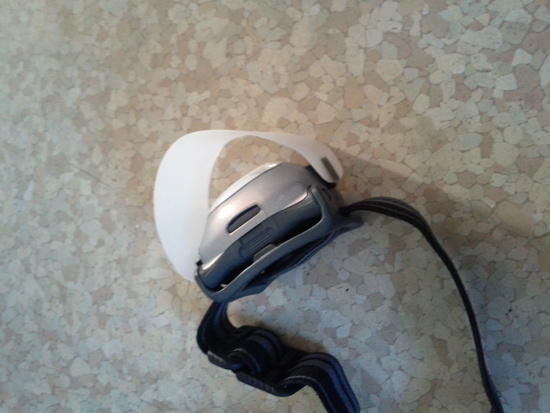

It should look roughly like this.
The weight is nearly negligible, and the added function for a headlamp makes this modification worthwhile. Hope this is useful for someone here. =)
JordanJan 20, 2011 at 9:56 pm #1686522
Franco DarioliBPL Member
Try sanding (lightly) the inside part . Worked for me.(extra diffusion)
FrancoJan 20, 2011 at 9:57 pm #1686523
Jared DilgBPL Member
I've been thinking lately where I could find an opaque bottle to suspend a disposable LED keylight in to use in my hammock for reading. Now I think the answer is not a bottle but like what you did with a sheet of material. Appreciate it!Jan 20, 2011 at 10:27 pm #1686532
Konrad .BPL Member
Nice! I do the same thing with my fenix e01 flashlight and a white chapstick cap. Makes an excellent lantern at 1oz total weight. But I like your method…I can probably leave the e01 at home now since my headlamp will be multi use
