Jan 11, 2011 at 7:02 pm #1267599

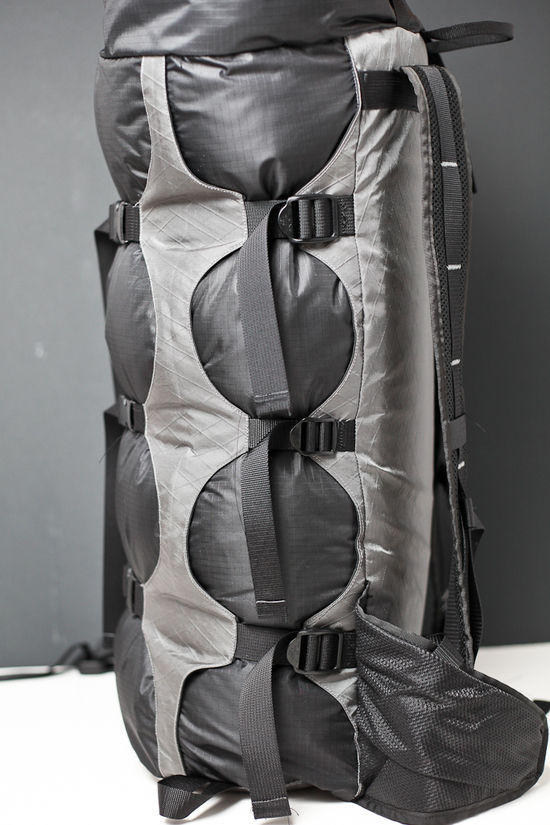

Well I wanted to finish up using what was left of my 2 yards of xpac so i decided to make another backpack. I am just having way too much fun making these things. All I had left was the dark Grey and I did not have enough of that to make a whole pack so I used some 70d silicone coated ripstop for the main body of the pack and I used the xpac for the back, bottom and strap connections of the pack. The pack is around 2200 cu in and weighs 19oz. Looking back I got a little carried away with straps on this thing. it has straps everywhere. I was hoping that by using the 70d ripstop that it would weigh a little less then it did, but the webbing and hardware really add up. On the plus side when I tightened the straps down on my gear it really makes the pack feel solid. I have been walking around all afternoon with it loaded with all my gear and it really feels nice.

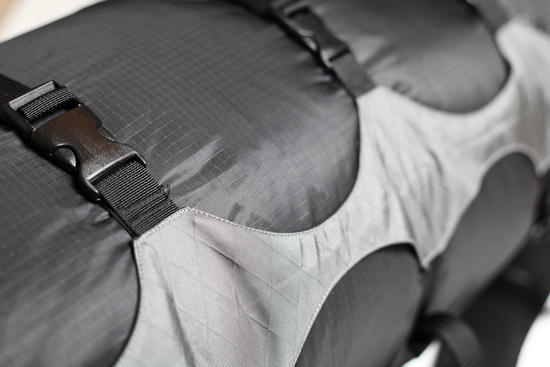

I didn't want the back of the xpac strap connection pieces to just be the raw back of the xpac so I sewed cordura to the back of it. I also wanted the xpac strap connectors to be attached to the seam of the pack so they did not flop around if the straps were loose. Here are some photos to illustrate what I am trying to convey . Creating these straps was the most difficult part of this pack project. I was real worried that the curves of the straps would not turn out nice at all, but I am pleased with how they turned out.

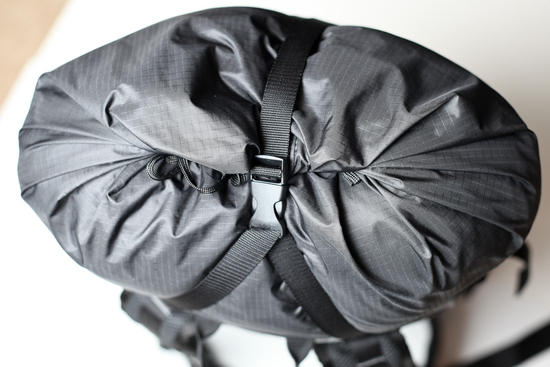

These last two photos are of the top and bottom of the pack.
Now I am all out of xpac and left wanting more! But hey 3 backpacks out of two yards of xpac and some ripstop is not bad at all. I will have to try and talk the wife into letting me order some more xpac, although she just did let me order some 1.43 oz cuben fiber!Jan 11, 2011 at 7:25 pm #1682965
Very clean Christopher. Love the monochrome color scheme.
A lot of straps as you say though, and I can pretty much guarantee you the majority of your weight is in that webbing, and all the associated hardware. Honestly considering the amount there, I'm amazed it's only 19oz.
I know that vertical swath of fabric attached to the webbing should help for very effective side compression, although I question the effectiveness of it on the front.
Seems to me though like you could be just as effective using cord on the sides (much lighter) and putting a pocket on the front?
Anyway, very professional. I'm guessing you're getting alot of PM's right now asking when you're going to start selling packs. ;)Jan 11, 2011 at 7:26 pm #1682966
Jason DelsoBPL Member
That. Looks. Awesome.
When are you opening up your store, did you say? ;)Jan 11, 2011 at 7:28 pm #1682968
Beautiful bi-chrome color scheme.
Not that you asked, but for the 9 compression straps, why not use 3 and let each "pass through" all around so they can be adjusted and locked using just 3 ladder locks instead of 9? Will save weight and adjustment tedium.Jan 11, 2011 at 7:37 pm #1682974
Yeah good call on only using 3 ladders, don't know what I was thinking at the time?Jan 11, 2011 at 7:42 pm #1682975
Thanks, glad to help. It's still a thing of beauty no matter what. Congrats!
Do you take project orders from those of us who can't / won't sew — but are willing to pay? :)Jan 11, 2011 at 7:43 pm #1682976
Jamie ShorttBPL Member
@jshorttLocale: North Carolina
Christopher, I have been watching these posts and have been absolutely stunned by your designs and craftsmen skills. The results are incredible. I'm basically speechless, but at least wanted you to know how impressive I think your work is. Please keep posting.
JamieJan 11, 2011 at 8:02 pm #1682985
Jim ColtenBPL Member
Very Very Nice!
Do detect a bit of Granite Gear Virga influence in that design? (but with more of a hip belt)
Properly packed and with all those compression straps I bet it'll carry Real Nice.Jan 11, 2011 at 8:11 pm #1682989
And Osprey influence too… :)Jan 11, 2011 at 8:23 pm #1682991
John DonewarBPL Member
@newtonLocale: Southeastern Louisiana
Very glad to see that the "therapy" is going very, very well. :-)
Ripstop leads to XPAC and XPAC leads to cuben fiber.
See I told you MYOG was addictive. Make sure to continue with your therapy on a regular basis and post early and often so we can revel in your obvious talent.;-)
NewtonJan 12, 2011 at 5:19 pm #1683306
Thanks for the nice comments guys, it really is nice to be able to share projects like these with other like minded people! Yeah there is some resemblance to the Virga or Vapor trail there, I have always really liked granite gears packs. Speaking of which anybody know of any place that carries that kind of Cordura, it has a smooth finish unlike regular cordura. I asked them at rockywoods and they had no idea what kind they use.Jan 12, 2011 at 7:36 pm #1683366
Matt FBPL Member
It seems like you are a pretty quick study when it comes to this MYOG stuff – I've worked my way through dozens of projects and still don't expect my work to come out looking as good as yours. Keep it up! I'm also impressed by your creativity: your projects don't just look like cottage-gear copies (like some of mine do).
Thanks for sharing, and keep sewing.
MattJan 13, 2011 at 1:14 am #1683428
Stuart RBPL Member
"I was hoping that by using the 70d ripstop that it would weigh a little less than it did, but the webbing and hardware really add up."
Yeah, my guess is that the fabric accounts for less than half the total weight of this pack. Like I suggested before, you really need to weigh all the component pieces to find out what is really adding the weight, only then you can work out how to make a lighter pack.
