Aug 28, 2010 at 2:50 pm #1262728

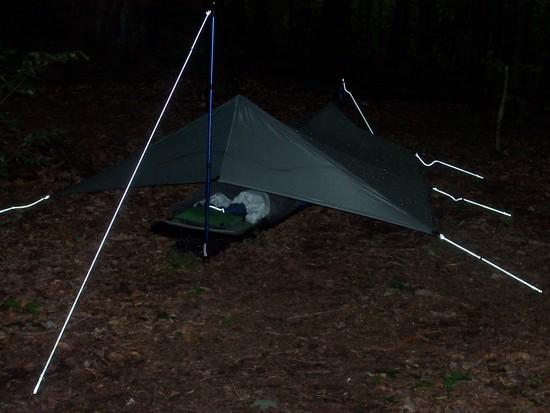

During my last trip I found out that I did not like slithering under the front beak of my silnylon tarp to gain entry.
I made up my mind to find a cure for this problem when I returned home. My first remedy was to construct a flat tarp with multiple pitch options.
I gained height of entry, multiple pitch options and some bulk. :-(
My new spinnaker flat tarp weighs .59 ounces more than my silnylon tarp did.
Unfortunately or fortunately for me it is pouring rain. This gave me time on my hands and the opportunity to let my imagination and my sewing machine run wild. I set about making the entry of my sinylon tarp easier / higher.

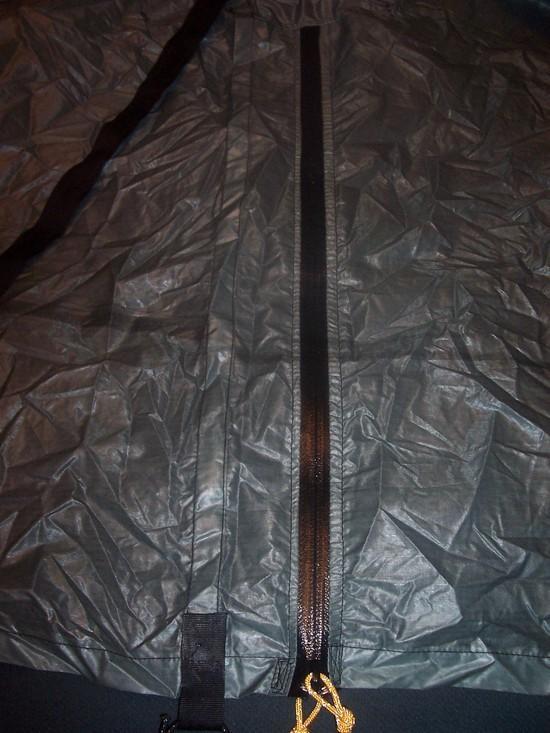

With some #5 waterproof zipper from Quest Outfitters, a roll of Gutermann thread, some sharp scissors and some nerves I set about my task.

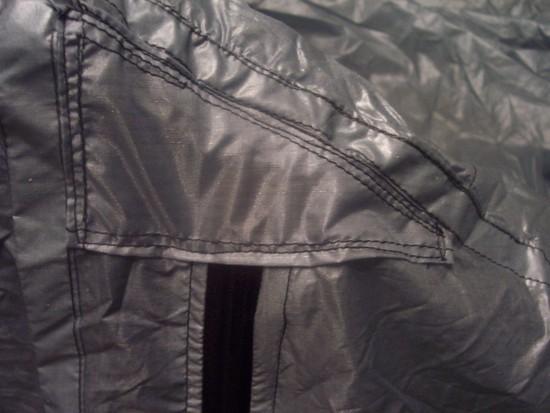

I stitched a "patch" of sorts at the top to reinforce where the zipper was cut into the silnylon beak.
I stitched across and right through the zipper at the top to locate the reinforcement and make a "zipper stop".

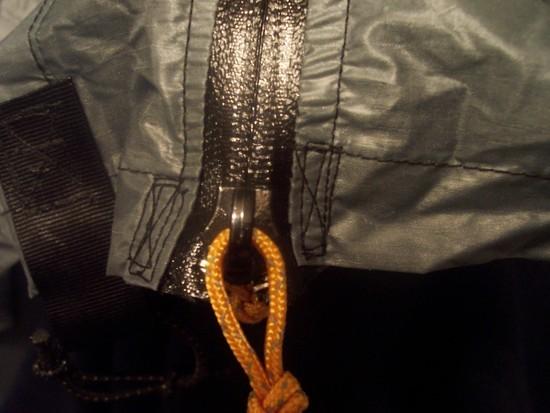

The bottom zipper stops are actually top stops from Quest. I cut off the metal zipper pulls and replaced them with short pieces of Triptease.
The ends of the zipper tabs were box stitched for strength and reinforcement.
After the addition of the waterproof zipper my silnylon tarp now weighs 13.05 ounces. That's still .6 ounces less than my flat spinnaker tarp. :-)
BTW all of the tarp weights are with lines and tensioners attached.
I am now in a bit of a quandary. Use the flat tarp or the beaked tarp? :-)
NewtonAug 29, 2010 at 12:11 pm #1641378
Dan DurstonBPL Member
Nice work. That should be a great mod.Aug 29, 2010 at 12:22 pm #1641381
Roger BBPL Member
Sounds like a large flat tarp in Spinnaker, what is the dimensions?Aug 29, 2010 at 4:47 pm #1641420
Thanks for the kind words. :-)
8' x 10' rectangular flat tarp made out of Polymax 42 Spinnaker fabric. I used 3/4" grosgrain ribbon to make six tieouts and put 1/4" brass grommets in two of them for placement of trekking poles to support the ridgeline. The weight with lines attatched tips the scale at 14.10 ounces.
After rechecking the weight difference I noticed that the wieght difference is only .6 ounces more than my nylon tarp. Decimal points are really important. ;-P
It is still rather bulky stuffed in its sack.
I need to edit the weight in my original post.
I added two loops of 1/2" grosgrain on the underside of the tarp for support of my bivy's bug net.
NewtonAug 29, 2010 at 5:49 pm #1641434
@thedanarchistLocale: Hampton Roads, VA
Wow. Good work. When the rain stops, please post pix of the silnylon tarp, pitched, with the zipper in action.
I, too, hate the slithering. And I'm tall, which makes it more difficult to avoid. I guess I need to learn to sew.Aug 29, 2010 at 6:42 pm #1641455
Thank you Dan. Pictures will be forthcoming as soon as I can fit inbetween the raindrops. According to the Weather Channel's website that won't be until next Sunday. >-b
I took over my wife's sewing machine in November of 2009 and haven't looked back since. ;-)
Find a used all metal geared machine. Good ones are out there to be had for under $100.00. Have it cleaned, oiled and adjusted. Dive in with some cheap material and "good thread". Practice making stuff sacks and straight seams. Once you are comfortable with your machine move on to felled seams and larger projects. When you can do felled seams and stuff sacks with drawstring closures you're ready to do a pack or a tarp.
Read the articles in the MYOG forum by Jay Ham. He has articles regarding sewing primers, more advanced stitches and an articles describing how to make a stuff sack, pack and tarp similar to my nylon tarp out of 5 yards of spinnaker material.
Almost all of the projects I do involve nothing more than a straight seam. It just looks more complicated. ;-)
NewtonAug 31, 2010 at 2:18 pm #1641963
Weather seems to want to cooperate but my schedule doesn't.
Here is a link to my inspiration for this modification.
Pictures of mine will be forthcoming. ;-)
NewtonSep 3, 2010 at 1:01 pm #1642852
The weather and my schedule finally cooperated.
Here are the pics hot off of the SD chip. ;-)

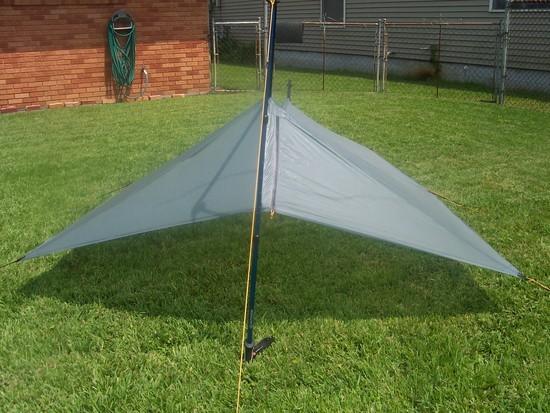

It is 31 inches from the tops of the blades of grass in my yard to the zipper tab fully open. It's not a skyscraper but now I can fall into my shelter with ease rather than crawl into my shelter slithering like a snake. ;-)
Many thanks to my lovely, loving wife for taking the pictures of me under my shelter.
NewtonSep 4, 2010 at 8:11 am #1642980
@thedanarchistLocale: Hampton Roads, VA
That looks great. So does your grass, by the way. For that reason, I'm being careful not to let my wife these photos.
