woodburning stove

That is a nice design but very heavy. Try making it from titanium sheet. The aluminum might give out after 30-40 mins.

0.5 mm 6Al4V Ti sheet – about 100 g or 3.5 oz.
Interesting idea.

Cheers

Very nice work. A bit heavy for my neck of the woods, but a quality job for sure. Keep it up.

I like it. It is perfect as an original conception.

I assume it packs like a dream and is fun to put together.

That said have you checked out the Nimble Will Nomad stove?

I notice your construction technique is similar.

I like your tall narrow shape. Better for convection and heat reflection creating a cleaner, hotter burn.

The one thing you might take from the Nimble Will design though are the notches on the top. They make superb places to put stakes to improvise a grill if you wanted too.

FYI, I also agree about the weight. It's a little heavy considering its size though you might consider some design modifications if you did want to go to titanium.

I assume much of the weight is because of the design. I.E. the tops of the plates holding up the pot need to take considerable weight and hence need to be sufficiently thick.

If you can get enough airflow through the nimble will style notches or by putting additional holes beneath (or by some entirely different and original approach) then your pot support will be more stable and you'll be able to use thinner metal.

Of course what's a couple ounces. Ease of use, enjoyment, well packing. Like I said, it is in a way perfect in its original conception.

Er… um… but it's ALUMINUM. Won't that fail with heat from a wood fire? +1 the Ti idea.

It may be a bit heavy and it may be aluminum but you can't beat free. If the aluminum gives out after a bit I've still got a whole stack of them. If I had the money to make it out of ti I wouldn't be making it myself. :)

thanks for the comments

> ALUMINUM. Won't that fail with heat from a wood fire?

Definitely borderline. May last a while though.

Cheers

I actually own one made out of titanium by Robert Kelly.

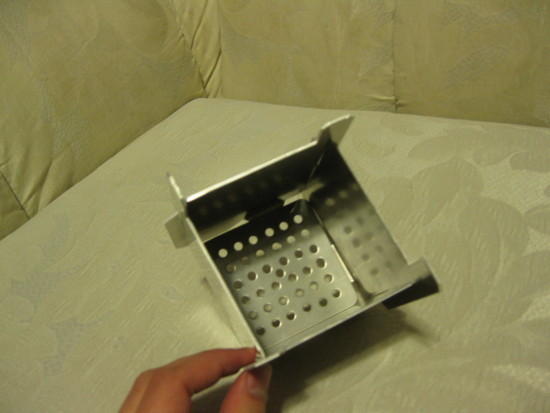

I haven't had a lot of experience with it yet. It does seem to burn better and start faster than the Nomad's stove. I think that's because of the holes in the bottom plate, but that could easily be done with the Nomad's design.

It weighs approx. 4 oz. with nylon fabric case and packs very well.

I believe that an aluminum version would warp right away from the heat and oxidize in no time. Thin sheet steel would be a bit better. Very thin stainless steel would be the best option if titanium is out of your price range.

Looks like a Makaira Metal SPS

http://www.makairametal.com/outdoorgear.htm
