Jan 14, 2009 at 8:47 pm #1233250
Big thanks to my mom for sewing this for me…

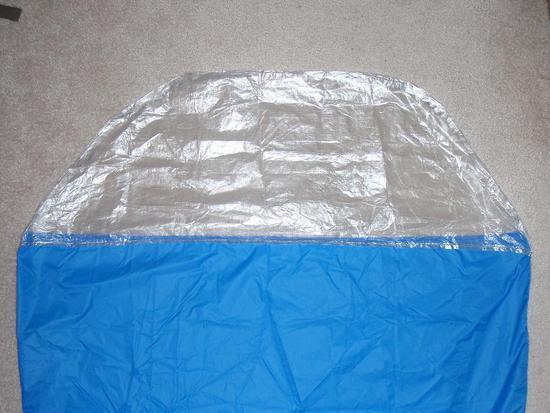

Bottom and Hood material is Cuben Fiber, Torso material is Momentum 90. The hood is only 12 inches to allow my breath to exit easily through the opening but still protect my head from any rain splash while under my poncho. No zipper, no head net…86" Long, 34" opening, tapered to 22" at the foot. Slightly smaller then the standard but still fits my WM Versalite. I was going to make a stuff sack, but it fits easily into a sandwich bag which is waterproof, cheap, and weighs only 3 grams.
Best part…Bivy = 77 grams (2.72 oz.)
Bivy w/ stuffsack = 80 grams (2.82 oz.)

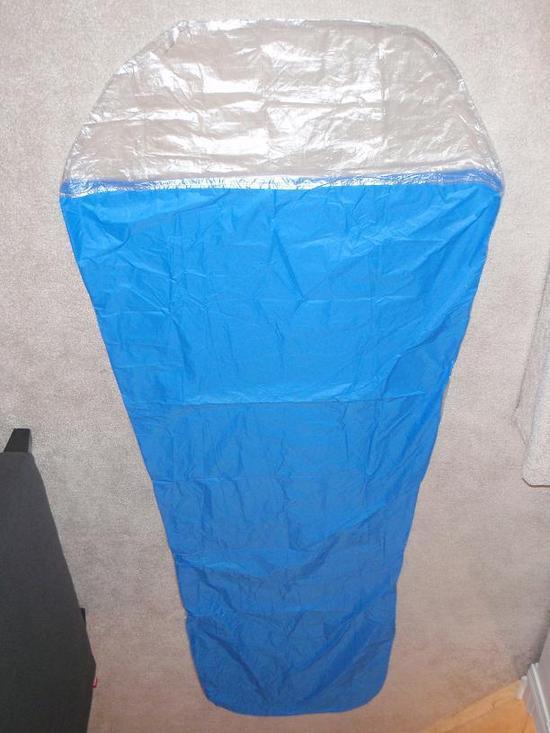

Full Bivy Pic

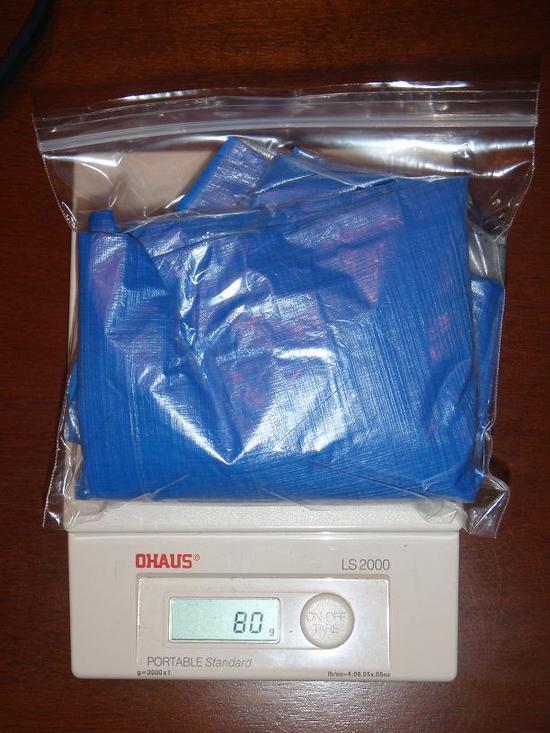

Bivy and stuffsack – 80 grams on Scale
Jan 15, 2009 at 3:14 am #1470302
Where did you get the Cuben and Momentum from?Jan 15, 2009 at 5:27 am #1470312
You can buy Momentum from Thru-Hiker and 0.6 Cuben Fiber from Zpacks.Jan 15, 2009 at 7:24 am #1470338
Momentum is from Thru-Hiker, and Cuben is from Quest Outfitters…as Matt mentions, there are a number of different resources with the same product.
Off topic: Matt, did you do a follow up on BPL about your trip? I couldn't find the original thread you posted.Jan 15, 2009 at 7:43 am #1470340
Did you do any seam sealing?Jan 15, 2009 at 12:13 pm #1470403
I did not seam seal the bivy. I don't see it necessary as I will use this with a poncho/tarp and I always use a closed cell pad (GG 1/8" thinlite) as a ground sheet. Short of rolling into a puddle of water (poor site selection), you would be hard pressed to have water enter the bivy. I haven't sealed any of my other bivys and have been good so far…but I guess we'll see.Jan 15, 2009 at 3:47 pm #1470448
@retropumpLocale: The Antipodes of La Coruna
I love it. I'm contemplating something very similar, but will probably add a short zip. Excellent seamtressing!Jan 18, 2009 at 7:19 am #1470975
Wow, this has to be the lightest bivy I've ever seen. I'd be interested to hear some notes from the field on this.Jan 18, 2009 at 9:26 am #1470988
Your Bivy looks real nice.
I made my Cuben / Pertex Quantum Bivy back in 2006 and have a thread here.
Bivy with a long balloon to hold the hood up.
I have a BPL.com Vapr Bivy and made my Cuben / PQ Bivy the same size. It weighed 2.68 ounces but then I added some snaps inside the Bivy to connect to a Climashield Combat Quilt. This increased the weight to 6.82 ounces.
I have used the Bivy /Quilt a lot and one night down to 42 degrees and was nice an warm.
On the ground in Georgia, October 2006.Jan 18, 2009 at 10:34 am #1471002
Thanks Allison, I'll pass it on to my mom. :)
Haven't taken out in the field yet, and probably won't until the weather is nicer, but I'll let you know.
I saw your bivy a few years back. Nice work…I assume you used the .33 oz/yd cuben? How is it holding up?Jan 18, 2009 at 10:59 am #1471007
The Cuben I used was the 0.32 / 0.33 ounce per sq yard version.
I use it with a light ground cloth for insurance and to help keep it clean.
It has held up very well. I used it a few nights ago to take a nap in my backyard when the temperatures went down to about 30 degrees. The Bivy is just big enough so I can get my sleeping pads inside it or my Warmlight Down Air Mattress along with another quilt when necessary.
I need to made one or two more Bivies and I am way behind on getting them finished.Jan 21, 2009 at 10:32 am #1471765
Steven and Bill:
Can you guys give me a ballpark estimate on how much it cost to make your bivy's?
Thanks in advance.Jan 22, 2009 at 7:07 am #1471971
I think I paid about $25/yard for the cuben and $15 for the momentum. I bought a role of thread from thru-hiker a while back but can't remember how much it was…maybe 10 bucks.
I used a little less then 3 yards of cuben and less then 2 yards of momentum.
You could invest $115 and make this bivy, and then have some material left over…but it took my mom and I the majority of a day to trace, cut, and sew it up – I'm sure we could have done it faster if we knew what we were doing :)Jan 22, 2009 at 8:38 am #1471987
I bought my Cuben direct so at that time it only cost me about $17 a yard. I did have to buy 9 yards at a time.
The Pertex Quantum cost about $16 a yard and I had to buy 5 yards. This was back around 2004.
Add these two items and both my Bivy and Steven's Bivy are about the same cost.
The problem today however is that Pertex products can not be sold retail.
I have always said when asked that I would use Thru-Hiker Momentum as a direct substitute if / or when I run out of Pertex Quantum.
You may think $25 a yard from Quest is high, I just bought the min.9 yards of the 0.33 ounce material and paid Cuben $25 for shipping and Handling on something that only weighed 3 ounces. That is $2.77 a yard for shipping from Cuben. Quest is paying a high rate for their shipping just like I / we have to.Jan 22, 2009 at 8:45 am #1471991
Appreciate the information guys. Very interested in this project and your photos and comments help!Apr 8, 2009 at 9:22 am #1492362
It looks like in both Steve's and Bill's bivys that they are two flat pieces sewn together, with an additional piece for the hood. Did either of you consider making a bathtub-like floor for your bivys?
This would keep seams off the ground, but I haven't figured out how to do it exactly without cutting, yet. I can do it with a square/rectangle, but the bottom is mummy shaped. Thanks.Apr 8, 2009 at 9:29 am #1492367
This was my first bivy (I didn't even sew it, my mom did) so I wanted to keep it as simple as possible. You'll have to let Bill or someone else chime in to get exact directions on how it is done. I have an idea but don't want to give out an incorrect (or more difficult) technique. :)
I'll be looking forward to a response aswell.Apr 8, 2009 at 11:10 am #1492402
"Did either of you consider making a bathtub-like floor for your bivys? This would keep seams off the ground"
Yes, but I use a GG very light ground cloth to help protect the Cuben bottom on my Bivy so it isn't necessary. I also use that Bivy in my Hammock so I am not on the ground that much. Sliding in an out gets easier with practice.
The main reason I use Pertex Quantum as the top piece is to help dry out my cloths over night if they are damp.
I could make an "all" Cuben Bivy with a venting option on the foot end that should weigh under 2 ounces.Apr 8, 2009 at 11:52 am #1492411
@kegelhoffLocale: Southern Cal
I made my Cuben/Momentum bivy with a bathtub fllor and no seams. Just folded up the Cuben corners so I wouldn't have to worry about seams and leaks. Here is the old thread.
KevinApr 8, 2009 at 12:04 pm #1492416
Thanks! That is exactly what I was thinking about. It just wasn't working conceptually in my head. Great!
(That said, I just got an MLD Superlight from the Gear Swap, the exact bivy I was looking at. Shipping today/tomorrow. I'll file this one for later use.)
