Heineken/Cat/Esbit Stove

  • This topic is empty.
Viewing 9 posts - 1 through 9 (of 9 total)
PostedJan 6, 2009 at 9:34 pm

I'm planning a solo 56 mile one night trip and have been goofing around with minimal cook systems using esbit tabs.
Due to mileage, I want to do this as SUL as I can- I'm not big on the idea of using a Heineken pot on a regular basis, but it makes sense for this.
I'd go without a cook system but I find that something hot boosts morale at the end of a long day.

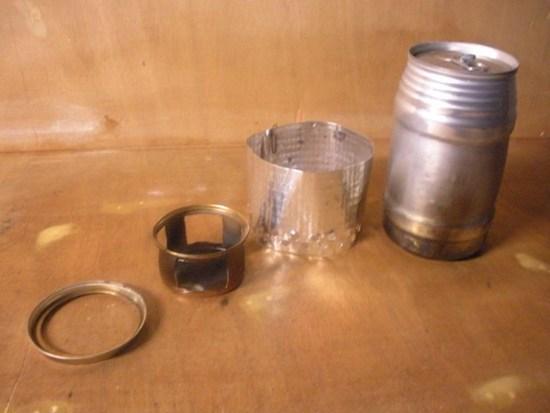

So I came up with this-cook system

The ring on the left is a Heineken lid (removed with a safety opener) with the center cut out.

The can is a 3oz. cat can with cutouts.

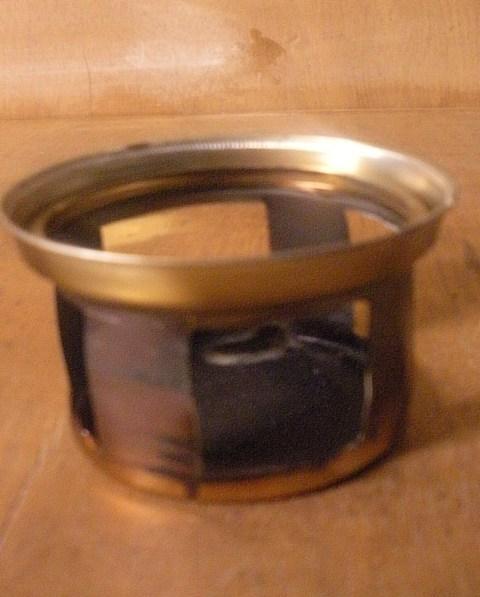

I found that the Heineken lid stacks perfectly (very secure) on the cat can, like this:stove

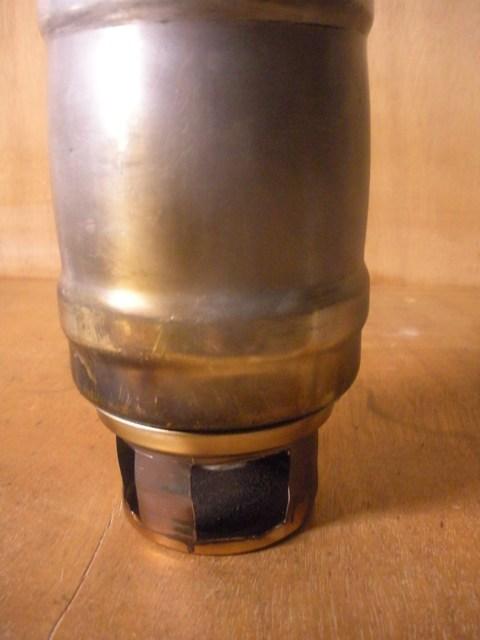

The Heineken pot then nests on this perfectly (also very stable):pot/stove

Just another solution for a simple, light and stable pot stand for the Heineken pot. Without the ring cut from a spare lid, the Heineken pot won't balance on the cat can very well.

The whole setup weighs 1.5 oz (including screen) and boils 2 cups of water in about 10 minutes.

Thought I'd share.
Cheers.

Sorry for the crummy second photo.

todd BPL Member
PostedJan 7, 2009 at 7:06 am

Craig,

Very nice adaptation! I'm gonna try it.

Thanks, Todd

PostedJan 7, 2009 at 10:43 am

Nice!

I haven't tried this but I've seen other people cut the bottom out of the can and use it upside down as the pot. You may be able to eliminate the adaptor ring if you do this as the top is flat.

PostedJan 11, 2009 at 4:59 pm

Couple questions:

What is the windscreen made from?

What's a safety opener (to get the ring out of the can) and where do I get one?

PostedJan 11, 2009 at 7:31 pm

The windscreen is cut from a heavy foil oven pan (like the lightweight disposable pans people cook turkeys in).

The safety opener is a can opener that cuts from the side, thus creating a lid and rim that do not have sharp edges- pick one up at any grocery store.

PostedAug 29, 2009 at 3:08 pm

How do you cut out center of heinekin lid. I tryed several ways and ruined lid.
Thanks,shootera3

Jay Wilkerson BPL Member
PostedAug 29, 2009 at 3:47 pm

Mine is a OXO top-opener I purchased at Wholefoods. It works or opens the can very easily!!

todd BPL Member
PostedAug 29, 2009 at 4:30 pm

take a Utility knife and score it over and over and the center will fall out.

PostedAug 29, 2009 at 7:40 pm

I just found another way, I had a large hole saw, and it made a perfect cut. I nailed the lid to a board, so it was unable to turn, worked fine.
Thanks.
