Topic

Need help stretching can for stove

  • This topic is empty.
Viewing 6 posts - 1 through 6 (of 6 total)
Jamie Shortt BPL Member
PostedOct 21, 2008 at 5:04 pm

I've made a few stoves using the template from zenstoves.net for the V8 can side burner. It makes a nice stove for mugs. My problem is I am getting the base stuck whenever I try to stretch it. I've made a can stretcher based on the directions and at least 3 of 4 cans I try to stretch get stuck. The instructions say to apply heat and it should pop off…mine do not, I have to destroy the bottom piece to remove it and start over. I'm spending a fortune on V8 just to make a single stove. Does anyone know how to solve this problem?

Thanks, Jamie

PostedOct 21, 2008 at 7:22 pm

G'Day
The problem I found was the airlock. Try this
• I just cut a small strip about 5mm wide from the waste can material,
• Bent the end over so I could hold it.
• Lube the end of a full can as the stretcher.
• Sat the thin strip down the wall of the can to be stretched.
• Then pushed the full can inside.
• Removal was easy as air could pass along beside the thin strip.
Hope that helps.
P.S
If you are concerned about wasting cans, do what I do, use cans that have your favourite alcoholic drink in them. The more you waste the less you care
Darren

PostedOct 21, 2008 at 10:37 pm

Did you make the can stretcher by pressing an unopened can into the bottom portion of a similar can? If so did you polish the bottom (stretcher) portion with fine steel wool, to remove the paint and smooth it? If it still sticks you might try spreading a drop of oil, or silicone spray, on the stretcher can before stretching the stove can. I've never had mine stick. That would be a real pain.

Note the small hole in the bottom of the stretcher can, which allows the unopened can to bottom out.

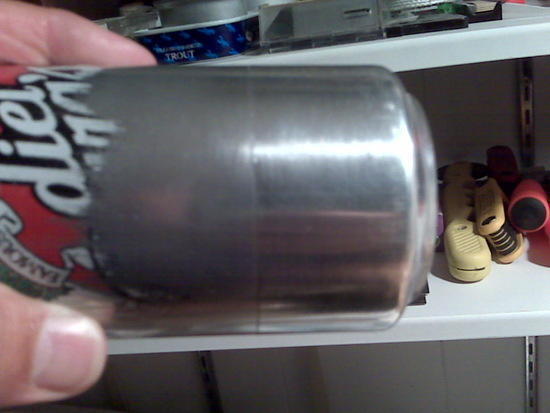

Stretcher Can Side View
Side view of Stretcher Can

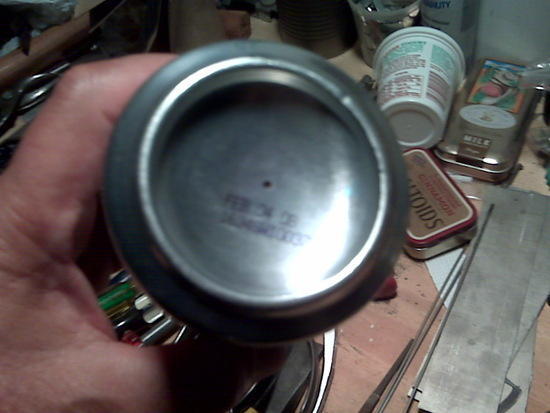

Stretcher Can End View
End view of Stretcher Can

Jamie Shortt BPL Member
PostedOct 22, 2008 at 6:24 pm

Great ideas guys thanks! Let me go cut off last nights disaster and see if I can get it to work.

Yeah my can stretcher is made by pressing an unopened can into the portion of another half can but no I have not "polished" it, I sanded most of the paint off. I'd better go polish it.

But good news is that the one stove I made last night (using like 8 cans) did turn out to be a success. I just tested it. But as I experiment with different hieghts and hole sizes I need to be able to make more without so many cans:)

Thanks for the input,
Jamie

PostedOct 22, 2008 at 6:46 pm

Polish is important. Use very fine steel wool and lots of elbow grease. Be gentle and let the steel wool do the work. A mirror like finish is to be desired.

D LARSON BPL Member
PostedOct 24, 2008 at 4:09 pm

As others have mentioned, some steel wool to shine it up might help. I just checked out my own can stretcher because I couldn't remember if I had polished it. As it turns out it's not polished but I haven't had your problem.

When stretching a can I can feel the air pressure build up as I press down. When I release it the air pressure helps to push the can off the stretcher.

On rare occasions I have to carefully push the can off the stretcher with my thumbs but I suspect this has to do with using a variety of different cans that may be slightly different in diameter.
