  • #1231306
    Tony Beasley
    BPL Member

    @tbeasley

    Locale: Pigeon House Mt from the Castle

    After thinking about this project for two years, I recently finished modifying a JetBoil PCS pot to be a 550ml pot (I call it the JB550), I also cut the JetBoil stove-mounting ring off.

    The weight of the JB 550 pot and new lid is 100.3g the pot grip sleeve is 6.4g.

    The weight of the BPL 550 is 53.3 with lid.

    I have run a few tests to compare the JB 550 with the BPL 550.

    The JB 550 is around 20%-30% more efficient than the BPL 550 depending on burn rate.

    With the JB550 the tests used between 4.3g/80ºC and 6.6g/80ºC and averaged about 5g/80ºC.

    The BPL550 used between 5.3g/80ºC and 7.5g/80ºC and averaged about 6.3g/80ºC.

    At the same burn rate the JB 550 is at least 20% quicker than the BPL 550.

    The stove used is one of my MYOG stove specially designed for small pots but I had to do some minor modifications to get it work with the flux ring JB pot.

    Conclusions: (1)The flux ringed JB550 pot gives approximately a 25% fuel saving over the BPL 550 pot and using a Coleman Max 170g canister 17 liters of water could be boiled, compared to about 12.5 liters with the BPL550.

    (2) For shorter trips the Flux ring JB550 pot would not see any weight reduction advantage but for longer trips or in very cold condition they would be a great advantage.

    A full report will with data and more graphs be published soon.

    Tony

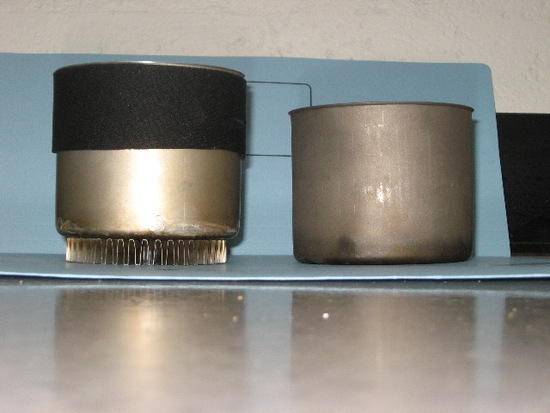

    JB 550 and BPL 550
    JB 550 pot alongside the BPL 550 pot

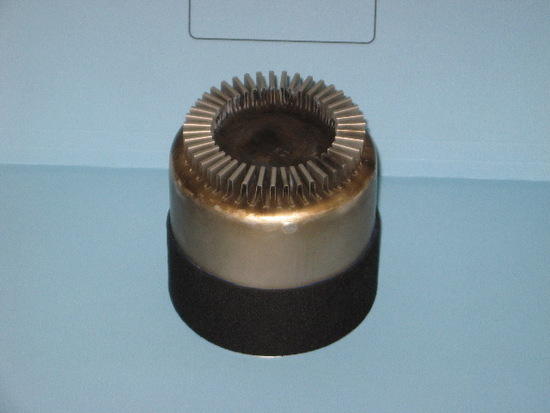

    Bottom of JB550 pot
    Bottom of JB550 pot

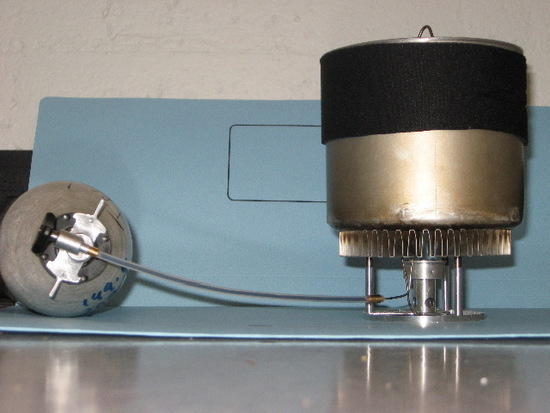

    JB550 on stove
    JB550 on stove

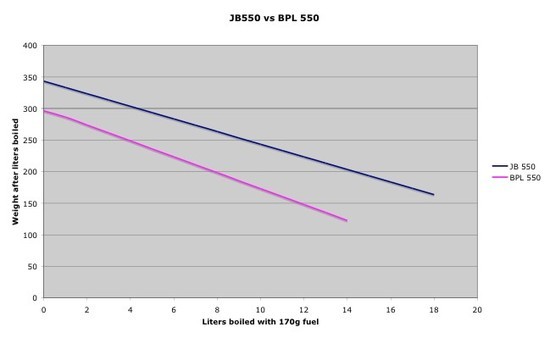

    Graph JB550 vs BPL550
    Graph of weight loss vs water boiled

    #1452499
    Yukio Yamakawa
    Member

    @jsbjsb

    Locale: Tokyo,JAPAN

    Tonyさん、こんにちわ、JSBです

    改善したJB550ポットを使うと
    25パーセントの燃費向上になることは、素晴らしいですね!

    http://www.backpackinglight.com/cgi-bin/backpackinglight/forums/thread_display.html?forum_thread_id=15736

    前例の無い、道具ですので、奇妙に思うでしょうが
    純正の蓋よりも、シリコン製の膜(0.3mm厚み)を水面に浮かべる
    ほうが沸騰時間を短縮出来ます。
    その理由は湯気の発生を抑えるためです。
    水が気化するときに失う大きな潜熱を防ぎます。
    水面から遥か上に被せた蓋は、湯気の発生を防止出来ていません!
    私の実験は、ラフなやり方でした。はっきりとは掴めていませんが
    およそ5パーセントぐらい燃費向上になりそうです。
    200mlを沸かして2秒の差でした。
    1000mlを沸かす場合では、データも採り易いと思います。
    、、、、、、、、、、、、、、、、、、、、、、、、、、、、、、、、、
    Hello,Mr. Tony

    And improved use of pot JB550
    25 percent will improve fuel economy, great!

    Without precedent, tools, so you may feel strange
    The lid of a genuine, rather than silicon film (0.3mm thick) floating on the water
    You can shorten the time to boil more.
    The reason is to reduce the incidence of steam.
    When you lose water, a large latent heat of vaporization to prevent.
    被SETA far from the surface of the water on the roof, to prevent the occurrence of steam is not good!
    My experiments, was a rough way. What is clear is not掴ME
    About 5 percent better fuel economy is expected to be around.
    200ml of the difference between 2 seconds and was boiled.
    If you boil 1000ml, the data also easy picking.

    #1452502
    Rog Tallbloke
    BPL Member

    @tallbloke

    Locale: DON'T LOOK DOWN!!

    Hi Tony,
    Thanks again for the drawings you sent me, one day, I'll get around to using them!

    If I uderstand your graph correctly, youare are saving around 20g fuel over a 170g propane mix, but giving away a bit more in the weight of the flux ring heat exchanger. Great performance efficiency wise anyway.

    Rog

    #1453542
    Tony Beasley
    BPL Member

    @tbeasley

    Locale: Pigeon House Mt from the Castle

    Hi JSB,

    Sorry for not replying earlier, I have been away on holidays to paradise (Norfolk Island).

    Thankyou for your silicon lotus link, I have been aware that a layer of oil on top of heating water makes a big difference (http://www.bioenergylists.org/stovesdoc/Aprovecho/HeatLoss_Berick.pdf) to evaporation but I think the silicon on top is a very good idea. I will try and get some suitable silicon and make a silicon lotus and do some testing and post the results.

    Tony

    #1453544
    Tony Beasley
    BPL Member

    @tbeasley

    Locale: Pigeon House Mt from the Castle

    Hi Rog,

    >If I understand your graph correctly, you are are saving around 20g fuel over a 170g propane mix, but giving away a bit more in the weight of the flux ring heat exchanger. Great performance efficiency wise anyway.

    I get the the figure closer to 34g to 51g which on a long trip is not insignificant.

    Strangely the extra efficiency that I am seeing with a canister stove with the JB550 pot does not happen with alcohol stoves, I think I know what is going on but I need to do some more testing.

    Tony

    #1453545
    Franco Darioli
    Spectator

    @franco

    Locale: Gauche, CU.

    Hi Tony
    Welcome back to reality. Apart from the huge drop of the AU $ and the finance world crash, nothing happened while you were away….
    Now that I have a 550ml Ti pot and realised that it is big enough for me, your cut down JB looks interesting .
    Following the above discussion I discovered that the Ti lid of my 550ml fits (but of course does not "lock on") the JB and is less than half of the weight of the original (about 15g against 35 g for the JB) I am not sure that a silicon version would be lighter (?)
    I was wondering if the flux ring as well as capturing more heat also disperses , like a heat sink, more heat than a pot without . What I had in mind was how it would work with a pot cozy. The plan is to still use the Caldera Cone for 3 days or less and gas for longer.
    Franco

    #1453723
    Tony Beasley
    BPL Member

    @tbeasley

    Locale: Pigeon House Mt from the Castle

    Hi Franco,

    >Following the above discussion I discovered that the Ti lid of my 550ml fits (but of course does not "lock on") the JB and is less than half of the weight of the original (about 15g against 35 g for the JB) I am not sure that a silicon version would be lighter (?)

    The lid that I use is from the BPL550, I am hoping to track some silicon down soon and will try JSB's idea.

    >I was wondering if the flux ring as well as capturing more heat also disperses , like a heat sink, more heat than a pot without . What I had in mind was how it would work with a pot cozy. The plan is to still use the Caldera Cone for 3 days or less and gas for longer.

    I do not think the flux ring diperses any heat from the pot water as heat travels from hot to cold and the flame temperature is hotter than 100C. I have not run tests on pot cozy efficiency yet.

    I recently recieved my Caldera Cone 550 stove and have run some tests, the JB 550 pot fits into the BPL 550 cone but on the prelimenary tests it does not work as well as the BPL 550 pot, I used the stove that came with the Cone. More on the CC 550 cone tests later.

    Tony

    #1453734
    Roger Caffin
    BPL Member

    @rcaffin

    Locale: Wollemi & Kosciusko NPs, Europe

    > I am hoping to track some silicon down soon

    Try Jehbco: http://www.jehbco.com.au/

    Cheers

    #1453739
    Tony Beasley
    BPL Member

    @tbeasley

    Locale: Pigeon House Mt from the Castle

    Hi Roger,

    thanks for the silicon info

    Tony

    #1789763
    Adam Kilpatrick
    BPL Member

    @oysters

    Locale: South Australia

    I know its more than 3 years ago now, but did you progress any more in this area Tony? Did you work out why you didn't see any efficiency gains using alcohol stoves? What about esbit?

    Know of anyone who has cut down a JB Sol Ti pot and how much that would weigh?

    Cheers,

    Adam

    #1790181
    Tony Beasley
    BPL Member

    @tbeasley

    Locale: Pigeon House Mt from the Castle

    Hi Adam,

    >I know its more than 3 years ago now, but did you progress any more in this area Tony? Did you work out why you didn't see any efficiency gains using alcohol stoves? What about esbit?

    Know of anyone who has cut down a JB Sol Ti pot and how much that would weigh?

    Cheers,

    Adam

    I have been a bit distracted in the last three years and I have not gone back to the JB 550 pot.

    I think the reason I do not see any efficiency gain by the JB550 over the BPL 550 is that with alcohol stoves they require a good amount of air flow around the stove and pot to get efficient combustion , the flux rings on the bottom of the pot stifle the air flow reducing the combustion efficiency and therefor the flame temperature.

    Tony

    #1790506
    Hikin’ Jim
    BPL Member

    @hikin_jim

    Locale: Orange County, CA, USA

    Hi, Tony,

    Thanks for your insight into the use of heat exchangers with alcohol stoves. What you're saying makes a lot of sense.

    Hope that "distraction" is fully behind you now.

    HJ
