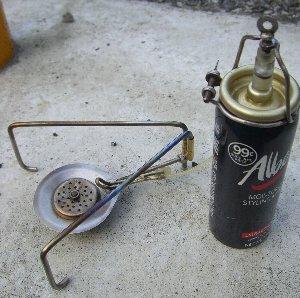

35g mini GAS stove

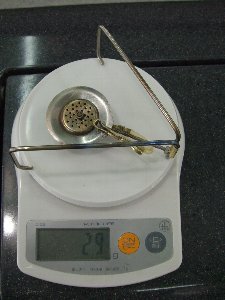

The main body is 29g

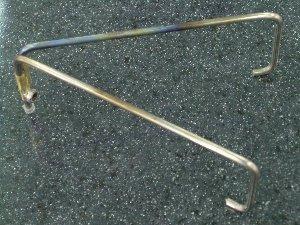

The titanium stands are 12g
The valve is 6g

YOUTUBE=
http://jp.youtube.com/watch?v=VLsgnniwqQw

too sweet
If you can you make it use liquid gas it would be close to perfect.

I want one!

Hi Junichi,

Nice work.

Hi Vick,

"If you can you make it use liquid gas it would be close to perfect. "

If you look carefully Junichi's stove has a pre-heat tube, the stove can handle liquid gas.

Tony

what does the empty canister weigh?

Thank you for all of you comment

Hi! Herman
canister weigh 18g
gas 40g

.

Hi Junichi

Impressive.

Is the pot stand titanium wire? if so what thickness?
Do you find the wire sags when it is red hot under the weight of a full pot?

Cheers

Hi Junichi,
I had one more question. After the fuel is preheated and enters the main brass body of the stove, how is the fuel delivered up to the burner? It looks from your video that you have a bolt travelling from the bottom to the top. Is there adequate room along the sides of the bolt for the fuel to make it to the burner plate? Thanks! Mark

Hi!Mark
I am not good at English; please understand it。

I put a figure on the my blog．
>> http://obakanahibi.blog31.fc2.com/blog-entry-280.html

Attention:The jet hall is equal to or less than 0.2mm

Hi！　Roger Caffin
The titanium wire is 3mm。
I use Beer　POT　
Titanium wire is warped and does not do the present place

Arigato Gozimasu Junichi!
Thats exactly what I was looking for! Ja mata, Mark

Hi Junichi

Thanks.
Be careful with silicone hose. It is not recommended with propane or butane. Teflon or PFA hose would be better.

Cheers

Hi Junichi,
Is there an advantage to using the mousse can instead of a butane canister? Thanks! Mark

Thanks!　Roger .
I knew that silicon was not suitable
However, it is easy to use silicon most.
Therefore I change it frequently.

Hi!Mark
Of the gas replacing it is a self-responsibility.
(It is the same in Japan)
Replacing it is simple.
http://plaza.rakuten.co.jp/marui000/diary/200703010000/
I do not write it in detail, but will agree with URL

こんな形状のバルブギアもあります。６ｇです。
/JSB

Heineken　BEER　Can　小さい缶に納まりますので
取り出して、直ぐに使えます

Hi Junichi!
What stainless steel parts did you use to make the burner and circle disk shaped piece below it? And did you take the jet from another stove and modify it? Thanks! mark
