Thoughts on This Tent Idea


Forum Posting

A Membership is required to post in the forums. Login or become a member to post in the member forums!

Home Forums Gear Forums Make Your Own Gear Thoughts on This Tent Idea

  • This topic is empty.
Viewing 8 posts - 1 through 8 (of 8 total)
  • Author
    Posts
  • #1226095
    Kyle Purcell
    Member

    @dufus934

    Locale: North Texas

    Does anyone see why this design wouldn't work? It's going to be made out of Silnylon, and the poles are going to be my Leki hiking poles.Google SketchUp Rough Draft

    It is 4ft high at highest peak, with 6'6" fully covered for sleeping. The front is so high because it is made as a vestibule for me to sit under during rain. The back is low to save weight because I don't need the room near the "foot box".

    Let me know about any questions. Thanks!

    #1411135
    Kyle Purcell
    Member

    @dufus934

    Locale: North Texas

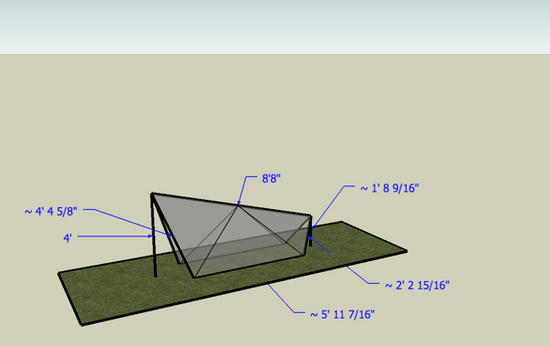

    Here's a better pic of the tent with the measurements.Tent design w/measurements

    #1411142
    Jim Colten
    BPL Member

    @jcolten

    Locale: MN

    That's not so different from this

    A tad shorter and somewhat lower at the foot.

    #1411164
    Paul Tree
    Member

    @paul_tree

    Locale: Wowwww

    a curve in the fabric takes out some of the looseness.catenary

    #1413744
    Tim Marshall
    BPL Member

    @marshlaw303

    Locale: Minnesota

    may it's just me but i think 6'6" is really tight. i'm 6'2" so maybe i'm taller than you?? i like 9' ridges, yeah it's long but i never have to worry about the weather. I like ultralight that still works. It doesn't matter how light it is if you're soaked.

    #1414422
    Mike Hinsley
    Member

    @archnemesis

    Locale: England, UK

    Seriously consider putting a door on the front and/or back. I've found that a door gives better weather protection for weight than the extra fabric required to do the equivalent as just tarp.

    I've done a lot of tarp camping this year in the UK and so have weather tested lots of designs.

    A closed end is the minimum weatherproof design:

    Ultralight Small Solo Tarp

    Simple with doors both ends here:

    Ultralight Solo Tarp/Tent

    I've also started to use a mixture of toggles and velcro for door closures because of weight and simplicity.

    I've not worried about caternary ridges too much – a decent bit of tension in the guy ropes is often good enough…

    I'm 6ft tall and I've found that although a 2.5mx1.8m flat tarp will weather a storm if pitched low and in shelter it is far from a fun way to spend a night. A shaped tarp with doors weighs less and gives more weather protection.

    I also must declare that I match the tarp to the weather – if good weather is expected I take a smaller and lighter tarp…

    #1422384
    Kyle Purcell
    Member

    @dufus934

    Locale: North Texas

    It took me forever, because I got busy, but I finished this tent!!! It really is an awesome tent for my first project. The only bad thing about it is that I found out the the fabric that I'm using is really a ripstop nylon with a DWR finish on it. However, I am still real pleased with the design, and I am probably going to put a door, bug netting, and tie-out loops on the tent. I just want to completely finish this project that has really turned into a prototype. Thanks for the input, and I'll try to get a pic or two up, but my camera is out of comission right now.

    #1422595
    peter kvamme
    Member

    @karacolor

    Locale: midwest

    I have had several projects turn into prototypes, and every time the next version turns out better. Aside from realizing things you could have done better, I find the whole process much easier the second time around.
    Good luck on the next edition, looking forward to photos.
