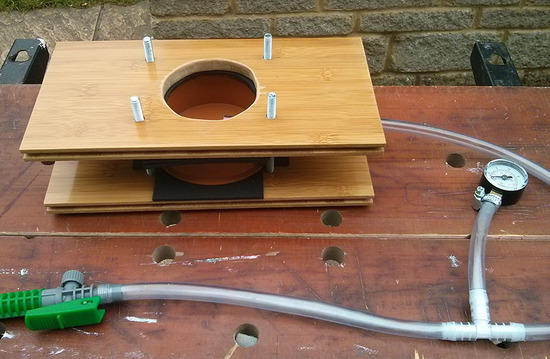

HH Meter V2 It Works !!!!!

Looks good to me.
That's the thing about pressure-testing fabrics: you tend to get a bit damp …

Interesting that you got micro-jets almost before you got small leaks. But the measured HH looks better than some of the stuff around. Details?

Cheers

yep its an outdoor sport for sure :)

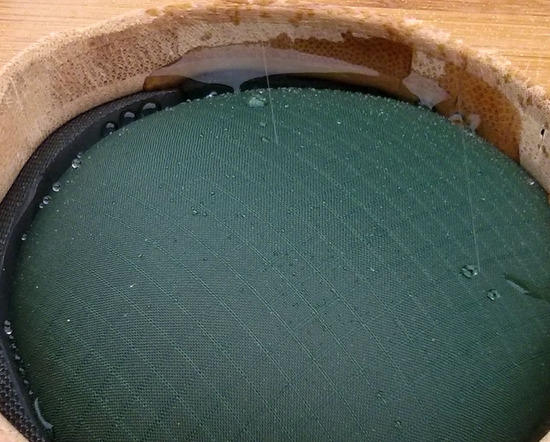

I had the three bubbles,
then pushed if further,
removed the bubbles with a tissue, and then the jets appeared,
maybe the surface tension of the bubble held the jets back ?

those winter nights will fly by :)

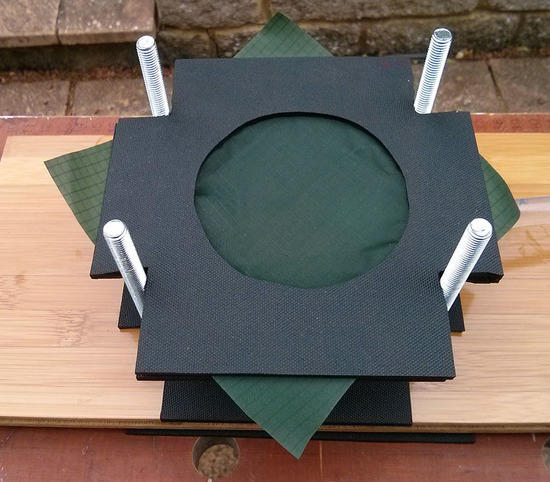

the fabric used in the test was this one as my standard

http://bit.ly/1clCojE

Silnylon 40D
Properties: 2 layers of smooth silicon-coating all in all on both sides, 40 denier high-tenacity Ripstop Nylon
Hydrostatic head: 3500 mm (even when folded 5000 times in the laboratory)
Weight: app. 55 g/sqm
Width: app. 150 cm
Tear strength (DIN EN ISO 13937-4): min. 17,8kg
Complies with Oeko-Tex Standard 100 Class II and REACH

Great job Gary!

Ryan

Hey Gary,

Can we send you in some fabric pieces to be tested?

I would hate for you to have to buy a bunch and spend an unnecessary amount of money for what many of us have multiple of laying around.

Nice job!

i have loads of fabric waiting to be tested,
But if you want any tested no problem, I am in the UK

As its home made i cant guarantee the accuracy
But it seems to be pretty accurate with known fabric matching to spec.

The testing needs x3 15cm square pieces of new fabric
Then I can do abrasion and folding tests as well.

I know the other chap on here can give you formal testing.

:)

Gary….I believe the person you are referring to is Richard Nisley an excellent person to contact.

http://www.backpackinglight.com/cgi-bin/backpackinglight/forums/profile.html?u=richard295

yes thats the chap i believe he can provide professional testing
:)

Gary,

I believe you have just raised the bar for myog projects.

You've given me the confidence to resume work on my myog time machine.

Cheers,
I am swamped with flux capacitors if you need one :)
