Topic
42.5gram (1.5oz) low profile remote canister stove
Forum Posting
A Membership is required to post in the forums. Login or become a member to post in the member forums!
Home › Forums › Gear Forums › Make Your Own Gear › 42.5gram (1.5oz) low profile remote canister stove
- This topic is empty.
-
AuthorPosts
-
Sep 13, 2007 at 4:56 pm #1225041

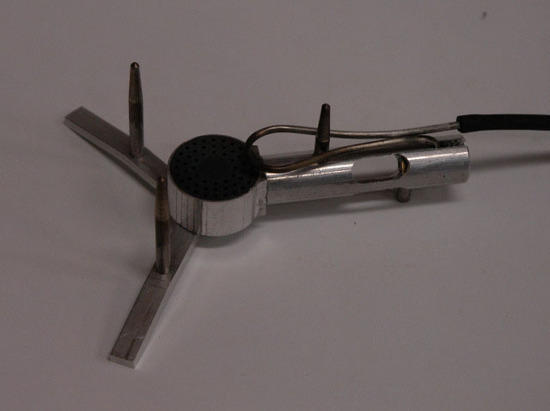

This is my latest stove, a SUL low profile side feed remote canister stove that is designed so it can be used with a windshield or the pot supports can be removed so it can fit under a Caldera cone.
The stove is still in its early development and is a concept that I have been working on for a few months the stove still needs some tuning.

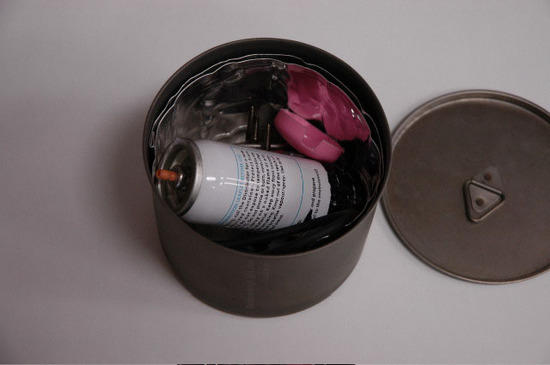

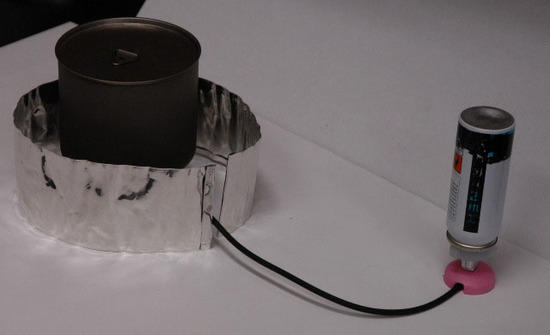

The canister is a small Butane canister that fits into the Firelite 550 pot along with the stove. The total weight of the stove, canister (empty), windshield (end2end Trail Supply) and pot+bag is currently 136.8g (4.825oz), the canister can hold up to 30g (1.058oz) of fuel, which can boil 3liters of water. The pot sits 36mm (1.417”) off the ground on pot supports that are at 25mm (0.984”) radius and. The stove feet fold under the mixing tube so it can be packed away into a small bag.

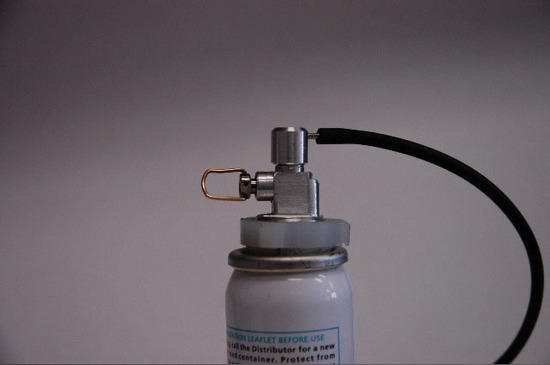

The stove and valve with pot supports weigh in at 42.5g (1.5oz) and without the pot supports 39.4g (1.39oz).
Tony
Sep 13, 2007 at 5:00 pm #1402112WOW! Nice job Tony! What did you use for the fuel line? Also, that windscreen looks a little low. Have you tested it outside and is it effective?
Sep 13, 2007 at 5:08 pm #1402115Hi Jason,
"Have you tested it outside and is it effective"
Not yet I only finished it yesterday, I am going bush tomorrow and I plan to use it then. It still needs some tuning an some more weight reduction.
Tony

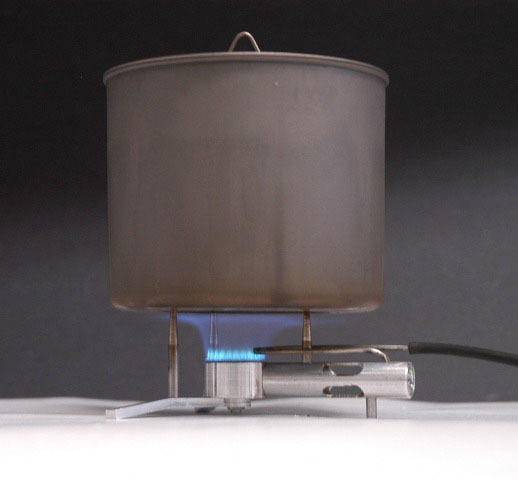

Sep 13, 2007 at 6:03 pm #1402118Nice looking flame color and pattern!
Can this stove be regulated, is there a valve?Sep 13, 2007 at 6:48 pm #1402124Fantastic – Fantastic – Fantastic
Does it require priming to pre-heat the generator?
Sep 13, 2007 at 6:49 pm #1402125Hi Michael,
Yes I can regulate and I can also set the maximum flow.
Tony
Sep 13, 2007 at 7:00 pm #1402127Beautiful work!
I always wondered why there wasn't a similar stove on the market: a butane-burning equivalent to an alcohol burner, if you will. Low-powered, ultra-low weight, and useful with a real windscreen. Why on earth is the lightest remote canister stove still 6 ounces, and massively over-engineered?
Planning to go into production?
EDIT: PS if you build such a burner to work in a Caldera cone, may I humbly suggest that you omit feet altogether? If possible, just allow a titanium tent peg to be inserted straight through the center of the burner and into the ground, pinning it in place. No muss, no fuss, and probably more stable than any other stove!
Sep 13, 2007 at 8:04 pm #1402137Hi Brian,
“Planning to go into production?”
I wish I could, even if I can come up with a stove that could be produced cheaply, canister stoves have to be approved by the relevant organizations in each country, in Australia it can cost between $2000-$10000 let alone what the US gas authority would charge. I do not have these sorts of funds behind me, designing and making stoves will have to stay my hobby.
“just allow a titanium tent peg to be inserted straight through the center of the burner and into the ground, pinning it in place. No muss, no fuss, and probably more stable than any other stove!”

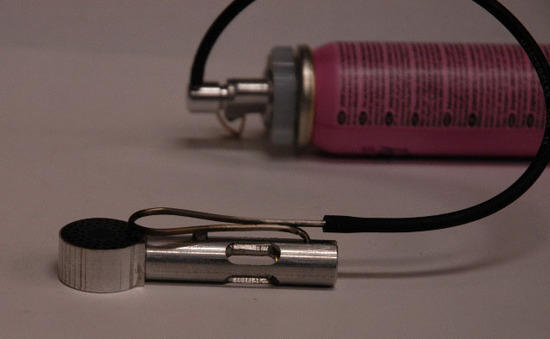

Yes it is possible to put a stake in the base and I have considered this option before. The Caldera option is actually fairly stable with no feet and the stove weighs 33.4g without them, the burner is 14.6g of that. The feet are not that heavy and would help to locate the burner in the middle of the base of the pot.
Tony
Sep 13, 2007 at 8:10 pm #1402141Hi Tony
Brilliant! You sure have been busy while I was away. That is looking really good.
Cheers
RogerSep 14, 2007 at 7:40 am #1402172very, very nice… very cool too…
Sep 14, 2007 at 12:57 pm #1402196Hi Dan,
"Does it require priming to pre-heat the generator?"
I have not tried it in cold conditions yet but as the generator tube is thin wall SS tubing it should not need priming.
Tony
Sep 14, 2007 at 1:26 pm #1402200Hi Tony,
I thought the gnerator was the thin tube extending over the burner jets.
Why does the thin tube extend there? Is a pre-heat function?
In one of your photos you show the fuel canister in the upside down position. Is it feeding liquid through the tube to the burner?
Sep 14, 2007 at 2:24 pm #1402207Hi Dan
Tony has gone walking this weekend, so I'll fill in for him.
> I thought the gnerator was the thin tube extending over the burner jets.
> Why does the thin tube extend there? Is a pre-heat function?
'Generator' because the first versions were used to generate kerosene vapour from liquid kero in the first Primus stoves. Yes, it is also called a pre-heat tube.> In one of your photos you show the fuel canister in the upside down position. Is it feeding liquid through the tube to the burner?
Yep, that's the idea. Winter use: rather than freeze up the canister by evaporating the liquid inside it, you use the flame heat to vaporise the liquid gas at the burner. Just the same as a liquid fuel stove: it IS a liquid fuel stove.Cheers
Sep 16, 2007 at 4:39 pm #1402393Tony,
Just say the word.(I have been looking at Roger's stove set-up and holding off on a canister type but am eager to have a light alternative to alcohol/esbit for use on main range etc).
Sep 16, 2007 at 8:12 pm #1402429erm, I didn't mean "officially" go into production. That involves regulation, royalties, certifications, and worst of all *taxes*!
I meant something decidedly more, well, low-key. Just to make your hobby self-sustaining ;)
Jan 23, 2011 at 8:41 pm #1687603Wow. An astounding stove. And amazingly light. Would that I were a machinist.
HJ
Jan 24, 2011 at 1:46 am #1687684Hey Jim
I am no machinist either, but with a little ingenuity it is still possible to make a 105g remote canister stove.Jan 24, 2011 at 9:18 am #1687792like a toolroom job to me, would go nicely w/ my new pack.
Jan 24, 2011 at 5:03 pm #1688000Thanks for the comments.
This is the stove that I now use for solo use, Roger has done some CO testing on it and the CO readings are very good. It can use STD canister and Coleman Max canisters.
Tony
Jan 24, 2011 at 5:09 pm #1688005Tony, what is the largest size pot of water that would be practical to try to boil with that thing, assuming that a simple wind screen is used?
–B.G.–
Jan 24, 2011 at 5:35 pm #1688016Hi Bob,
>Tony, what is the largest size pot of water that would be practical to try to boil with that thing, assuming that a simple wind screen is used?
I have used a 1.5 liter pot on it but the stove burner is a bit small for that size and it was a bit slow, I now use a 1 liter ally pot.
Tony
Jan 24, 2011 at 5:59 pm #1688022"ally?"
Aluminium, or aluminum?
One liter is a good size.
–B.G.–
Jan 24, 2011 at 8:07 pm #1688059Tony – what kind of connections do you use from the metal tubing (generator, output tube from canister valve assembly) to the flexible tubing, and what kind of tubing are you using – both metal and flexible?
Jan 24, 2011 at 8:18 pm #1688066alumium if you want to be original.
Here we spell it the English way…
FrancoJan 24, 2011 at 9:00 pm #1688081Hi Paul,
> what kind of connections do you use from the metal tubing (generator, output tube from canister valve assembly) to the flexible tubing, and what kind of tubing are you using – both metal and flexible?
The flexable tubing is PFA tubing the metal tubing is some hard drawn SS hypodermic, the connections are homemade, I silver soldered on some brass sleeves on the end of the generator tube and the plastic tubing is crimped on with some brass crimp sleeves.
Tony
-
