Has anyone modified a rolltop closure on a Pack?


Forum Posting

A Membership is required to post in the forums. Login or become a member to post in the member forums!

Home Forums Gear Forums Gear (General) Has anyone modified a rolltop closure on a Pack?

  • This topic is empty.
Viewing 22 posts - 1 through 22 (of 22 total)
  • Author
    Posts
  • #1317119
    mik matra
    BPL Member

    @mikmik

    Locale: Brisbane AUSTRALIA

    I love my ULA Circuit BUT it's my first and definitely last pack with the 'roll top closure'. I find it a waste of material and was wondering has anyone modified their roll top closure to a drawstring one? Or a zip one?

    Any ideas, comments, pictures?

    Thank you.

    Mik.

    #2105308
    Max Dilthey
    Spectator

    @mdilthey

    Locale: MaxTheCyclist.com

    I look at rolltop as extra "emergency" space.

    I believe a drawstring is the most useful solution, though.

    #2105309
    mik matra
    BPL Member

    @mikmik

    Locale: Brisbane AUSTRALIA

    I meant that to 'shut' the pack you need to roll it up with the back and front flaps of material…..surely that is a heavier option and a pain in the buttocks option than a drawstring!

    #2105312
    Bob Gross
    BPL Member

    @b-g-2-2

    Locale: Silicon Valley

    If it is done correctly, I think the rolltop closure might be more weatherproof.

    A drawstring will work, but it typically needs an extra rain flap over the top of it.

    A zipper will work, but if you put too much pressure on it, the zipper could separate.

    –B.G.–

    #2105326
    Glenn S
    Member

    @glenn64

    Locale: Snowhere, MN

    When I use mine, I don't roll it up unless there's bad weather. Otherwise I just fold it over the back and clip it down, same as I do with my GG Murmur.

    #2105344
    Ken Thompson
    BPL Member

    @here

    Locale: Right there

    Do you have the ability to set a grommet or make a button hole? If you won't mind losing a bit of space just make it into a drawstring top. I'm doing this to a SMD Starlite pack this weekend.

    #2105353
    Robert Perkins
    Spectator

    @rp3957

    Locale: The Sierras

    I have the same issue with my Circuit. I picked one up from my neighbor for free and really like the way it fits, but I just think my gear volume is too low for what I need for this pack and I keep 'futzing' with the roll top to figure out a way to make it easier and functional. I can see the extra space coming in handy for a winter trip, or where more gear is needed though. I'll be curious to see if anyone has done any mods? I did make a small slit in the top to allow the top strap to go either over the Circuit roll top enclosure, or under. It sounds odd, but with less volume it works better for me to go under the roll top and then the extra material just gets pulled down and clipped to the angled side straps and it is more functional for me. Still too much extra fabric though for my needs.

    Ken, are you still upgrading your newly died Starlight? I hope it's working out well for you! I picked up a close out Swift pack from SMD, but I just don't see myself going back to a Z Rest for my sleeping pad, so I haven't even taken it out yet! You did a great job on that Starlight pack, if it's the same one. I wouldn't mind seeing the new mods when they're done!

    #2105354
    Ken Thompson
    BPL Member

    @here

    Locale: Right there

    I am Robert. Very comfy pack. A few issues to be rectified. But that is what the sewing machine is for. I will take some photos as I go along. I'll start tonight.

    #2105364
    Robert Perkins
    Spectator

    @rp3957

    Locale: The Sierras

    I'll look forward to seeing the finished product! Have fun and best of luck on it. Have you taken it out much? They really are a comfortable pack and simple design. I actually preferred the external pad access like yours compared to the internal pad pockets. I enjoyed the easy access on extended breaks to whip out the Z Rest! Do you use just the Z Rest, or do you supplement it with another pad?

    The roll top of the SMD seem to be of a more functional design than the ULA Circuit pack.for some reason. It's trivial, but I find myself always scrambling to find the buckles one the side of the Circuit.

    #2105387
    David Chenault
    BPL Member

    @davec

    Locale: Queen City, MT

    Rolltops are heavier per unit of capacity than drawstring closures, but to make the later waterproof you have to either significantly under pack or add a flap or lid (which is almost always heavier than the roll top).

    It'd be easy to make your Circuit a drawcord job. Cut the roll top off, and depending on the height you want either roll down the existing material and sew it around a bit of cord (add grommet, etc), or sew on a drawcord sleeve made of silnylon or something else.

    #2105741
    Ken Thompson
    BPL Member

    @here

    Locale: Right there

    Hope this is useful.

    046

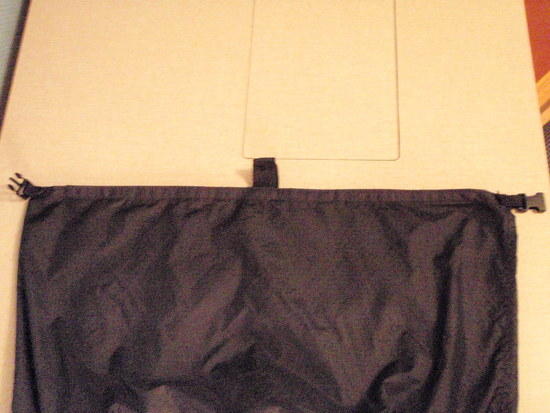

    Standars rolltop closure

    047
    Cut that sucker off.

    048

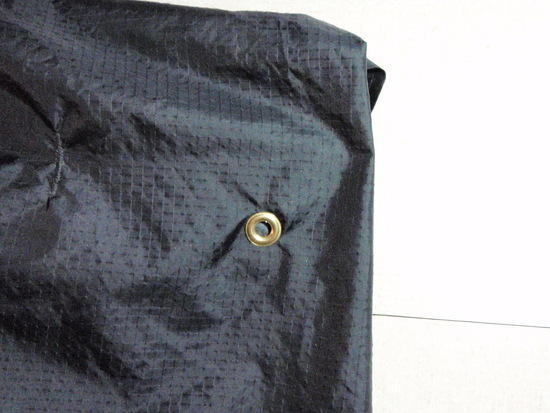

    I copied the closure on my Ohm. So used a grommet. Took measurements for placement.

    049

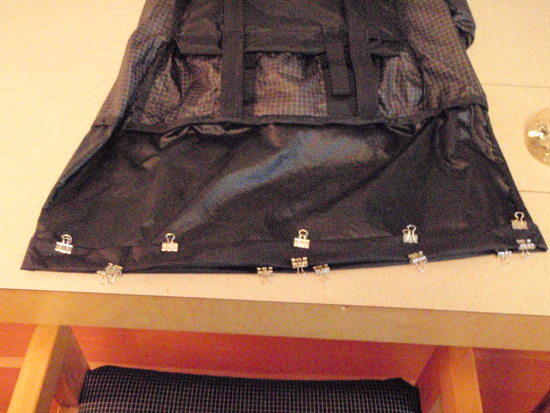

    Hem clipped into place. I find binder clips to be indispensable at the work table.

    050

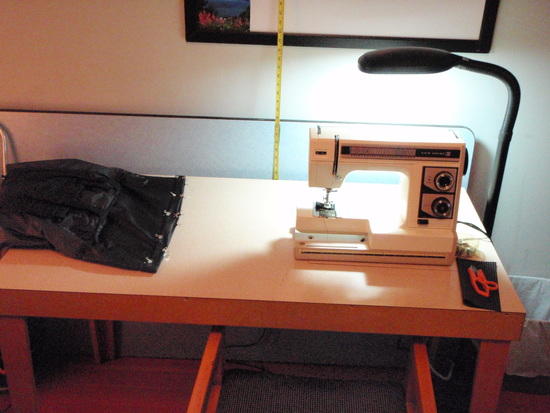

    Ready for sewing.

    051
    Check my work. Trim the loose ends.

    052

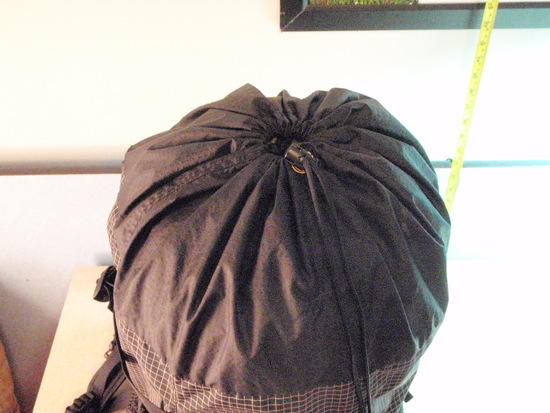

    I used paracord sheath as the drawcord. Works like a charm. Looks like it came that way.

    Took as much time as it did to upload the photos and write this post.


    @Robert
    . A few trips with it now. No Z rest. Using an old school full length Thermarest in the fantastic pad pocket. Love the shoulder straps. You didn't happen to buy it as a factory second by chance? That load lifter and stay pocket issue is the next thing to address.

    #2105758
    mik matra
    BPL Member

    @mikmik

    Locale: Brisbane AUSTRALIA

    I think my circuit has a longer front piece of material but no biggie I can still do what you have shown. I'll even save some weight for sure.

    Thank you again :)

    #2105788
    Robert Perkins
    Spectator

    @rp3957

    Locale: The Sierras

    Looks great Ken! No, I bought it straight from SMD. It really only saw a couple seasons of use, with the longest stretch being a JMT trip,before it's large volume and my shrinking gear became an issue. I don't remember any specific issue with the load lifters on mine, but if have a friend that had issues with his on a trip last summer and he ordered his within a month or so of me.

    #2105797
    Dale Wambaugh
    BPL Member

    @dwambaugh

    Locale: Pacific Northwest

    Very nice!

    An alternative is to take the Gossamer Gear approach and turn the extra fabric into a variable fold-over top, with a couple straps or lines to tie it down on the front. GG adds a zippered pocket on the top side as well. That system eats up the spare fabric when you want to reduce the volume. Their design could incorporate a drawstring as well, when maximum volume is needed and all the extra top collar length could be utilized. The Mariposa does have a buckle at the top to reduce the opening and would close tight enough around/over a bear can, but not as fully as a drawstring.

    #2105828
    John Donewar
    BPL Member

    @newton

    Locale: Southeastern Texas

    I have to play devil's advocate on this thread.


    @Ken
    ,

    Did your original roll down closure have buckles that had to mate down the sides of your pack to keep it closed?

    FWIW when I close my roll down top closure I roll it downward 2 or 3 times and buckle the two sides together on top of the bag. Mine is made using a male and female single buckle set. Picture the top closure on a dry bag.

    In cutting off you original roll down closure and creating the drawstring closure wouldn't your capcaity be minimally reduced?

    How do you seal out the weather a.k.a. rain from the hole in the top?

    In creating the drawstring channel how many times did you roll down the material before sewing the channel?

    I don't see the method that I use as all that heavy or complicated to use.

    Congrats on your project. It seems to have turned out very well and your workmanship is excellent.

    Party On,

    Newton ;-)

    #2105843
    Ken Thompson
    BPL Member

    @here

    Locale: Right there

    "Did your original roll down closure have buckles that had to mate down the sides of your pack to keep it closed?"
    No.

    "In cutting off you original roll down closure and creating the drawstring closure wouldn't your capcaity be minimally reduced?"
    If it did I can't tell. But must have, a bit.

    "How do you seal out the weather a.k.a. rain from the hole in the top?"
    I use a pack liner to keep the key things dry. I usually ave enough left over material to roll over the top and the top strap keeps things closed.

    "In creating the drawstring channel how many times did you roll down the material before sewing the channel?"
    Just once with about a half inch folded under for a neat edge.

    "I don't see the method that I use as all that heavy or complicated to use."
    Aren't choices great!?! Two buckles and a velcro closure vs, a cord lock and loosening a strap. It is certainly quieter. Plus I won't snag stuff on the velcro. I don't like velcro…

    "Congrats on your project. It seems to have turned out very well and your workmanship is excellent."
    Thanks very much. I am pleased with the way it turned out.

    #2105862
    todd
    BPL Member

    @funnymo

    Locale: SE USA

    Ken,

    I have a Starlite and I like your mod! Thanks for all the pics.

    Todd

    #2105870
    John Donewar
    BPL Member

    @newton

    Locale: Southeastern Texas

    " I don't like velcro…

    Neither do I!;-/

    Velcro and the original bottom entry on the Hennessy hammock is one of the reasons that I sold it.

    "Aren't choices great!?!"

    Yes they are great!

    I am pleased that you are happy with the outcome. ;-)

    Party On,

    Newton ;-)

    #2107062
    Ken Bennett
    Spectator

    @ken_bennett

    Locale: southeastern usa

    I used a Starlite for a bunch of years – great pack. I liked the pad pocket especially. Now we have several Circuits, and I found the Starlite roll top closure much easier to use than the Circuit. Maybe it's the Velcro, maybe it's the clips. I do see on my wife's brand new Circuit that one can now clip the two ends of the roll top together, forgoing the side clips which I found to be a total PITA.

    When I had the opportunity to order a custom Circuit a couple of years ago, I asked for a standard drawstring closure on the top, and the stretchy mesh front pocket from the Ohm. These two mods make the Circuit much better, IMHO.

    #2107096
    mik matra
    BPL Member

    @mikmik

    Locale: Brisbane AUSTRALIA

    Looking at the pictures posted and extra info I think I might have a go at this project. Thank you guys :)

    #2107106
    Justin Baker
    BPL Member

    @justin_baker

    Locale: Santa Rosa, CA

    My ohm has a drawstring but I just roll the excess material before sinching it down using the top strap. That seals off the top just fine.

    #2107115
    Mike W
    BPL Member

    @skopeo

    Locale: British Columbia

    I added a draw string closure to my MLD Newt a few years back (this was the first release of the Newt).

    I didn't like the roll-top closure system on the Newt, so I cut it off and added a small extension collar with a draw string. The small extension collar more than made up for the volume I lost by cutting off the roll-top.

    I also added a small compression strap over the top for when the pack is under filled. I used coated rip stop for the extension collar. I also added the large mesh pocket on the front of the pack which is why the pack looks so different in the before and after pictures.
