Better Esbit Ti Folding Stove idea


Forum Posting

A Membership is required to post in the forums. Login or become a member to post in the member forums!

Home Forums Gear Forums Make Your Own Gear Better Esbit Ti Folding Stove idea

  • This topic is empty.
Viewing 25 posts - 1 through 25 (of 63 total)
  • Author
    Posts
  • #1300883
    Jon Fong / Flat Cat Gear
    BPL Member

    @jonfong

    Locale: FLAT CAT GEAR

    I like the Esbit Titanium Folding Stove as it is clever design and pretty easy to use. As I have designed Esbit stoves before and thought that I would see if I could tweak the design and come up with a more efficient design. Well, I think that I have done this and I also think that this is a great DIY project. The idea is to add a ring to focus the airflow into and out of the Esbit cube (see the picture below):

    Esbit Foccus

    By doing so, I believe that this has increased the efficiency of the stove. Compared to a control test, I was able to heat up 4 cups of water 15 F hotter when using the ring (n=1). As I said earlier, I think that this is a great DIY project and who share this initial discovery with you. This design is far from optimized and there may be a lot more gains to be made by further tweaking of the concept. Best regards – Jon

    If you wish, I made a video of the idea and test:

    YouTube video

    #1969641
    Nick Larsen
    Member

    @stingray4540

    Locale: South Bay

    Hmmm. Nice idea.

    What about making the ring taller to act as your windscreen as well? You could also cut notches in the bottom so it slips over the arms and sits lower to the ground, then you could play with how much air to give it to get the best efficiency.
    It also might be worth playing with a larger diameter, or even an inverted cone…

    #1969685
    Ian
    BPL Member

    @10-7

    Looks like taking the bottom off of a cat food can will get the job done? I'm going to try this when I get home to see what this does for my kit.

    Thanks for sharing Jon!

    #1969714
    Dan Yeruski
    BPL Member

    @zelph

    Locale: www.bplite.com

    Great idea, thanks for sharing.

    #1969841
    Michael Gillenwater
    BPL Member

    @mwgillenwater

    Locale: Seattle area

    What was the difference in the residue deposited on the posts after each burn? That would tell you something about efficiency as well.

    Plus, did I understand the video correctly. Was the tab you used with the focusing ring broken? If so, then the added surface area for combustion could potentially explain the higher temperature you got with the experimental case versus the control.

    #1970254
    Jon Fong / Flat Cat Gear
    BPL Member

    @jonfong

    Locale: FLAT CAT GEAR

    Michael, I don't think that the cracked Esbit would make a difference. If I broke up the Esbit into four pieces to increase the area I would increase the burn rate but have little effect on efficiency. Besides the overall time to flame out was close betwen the to test. Jon

    #1970256
    Jay Wilkerson
    BPL Member

    @creachen

    Locale: East Bay

    Excellent stuff and Thanks! I will play with your great thoughts soon.

    #1970257
    Michael Gillenwater
    BPL Member

    @mwgillenwater

    Locale: Seattle area

    I am just guessing here, but I would not be surprised if the flame out time is not the best measure here, as it assume the same energy output pathway over time. But regardless, the easy way to answer this is just do some more trials to see if the results are repeatable. Preferably with a more identical experimental set up (i.e., unbroken tab)

    #1970260
    Jon Fong / Flat Cat Gear
    BPL Member

    @jonfong

    Locale: FLAT CAT GEAR

    Michael, I agree more testing should be done. Here is the way that I looked it: if the focussing ring increased the final water temperature by 15 F for 4 cups, then when boiling 2 cups, it should be ~30F. Even with some experimental error, getting Esbit to output a 30 F change is in the direction of goodness. Since I am not a die hard Esbit user AND there a lot of them on this forum, I thought it would be a good DIY project. The Esbit Ti folding stove has some physical limitations that might limit optimization (particularly the overall height). So, I posted this finding as a starting point for others to tweak and optimize. At the end of the day, this group might come up with a pretty slick and efficient system. Jon

    #1970271
    Michael Gillenwater
    BPL Member

    @mwgillenwater

    Locale: Seattle area

    exactly. I am a user of the esbit wing stove (not surprisingly given my interest). and in theory i should shut up and do the testing myself. right after I figure out how to get away from this computer and do some real hikes. if someone else beats me to it, though, I won't complain.

    #1970523
    Jay Wilkerson
    BPL Member

    @creachen

    Locale: East Bay

    Here is a simple idea at 0.1 Gram a Starbucks Double Shot can cut to fit. It is like the Gram Cracker. I might punch some holes in the top of Starbucks can top to see if the flames spread better.
    004
    005

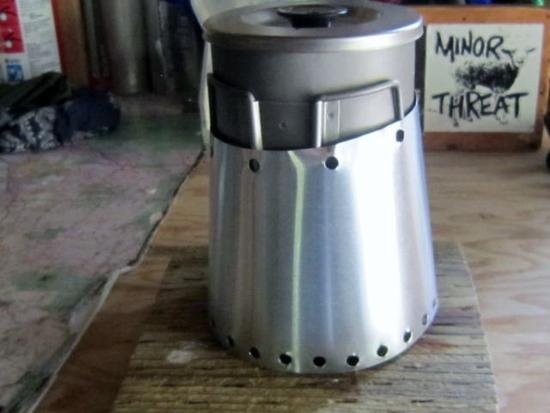

    002

    #1970527
    Michael Gillenwater
    BPL Member

    @mwgillenwater

    Locale: Seattle area

    my thinking exactly, in terms of materials (cheap Al can). eager to see your results.

    #1970538
    Jon Fong / Flat Cat Gear
    BPL Member

    @jonfong

    Locale: FLAT CAT GEAR

    I think that you will find that the aluminum will get too hot and anneal to a very soft state. It would probably be better to get some titanium foil and make the shape. Send me a PM and I can probably send you a scrap piece or two that would be the right size. Jon

    #1970545
    Jay Wilkerson
    BPL Member

    @creachen

    Locale: East Bay

    Jon, I have a hole punch and was thinking of putting maybe 4-5 holes around the top to see if this spreads the flames a little better underneath the pot. The aluminum can is recyclable and I a can use a different Double-Shot can on every trip. But Ti does last longer and I would like to try it out if you have some to spare. I will PM you.

    Thanks,
    Jay Wilkerson

    #1970602
    Jay Wilkerson
    BPL Member

    @creachen

    Locale: East Bay

    006
    I will test the theory this weekend. Ti Wing/Kinda Gram Cracker

    #1970661
    Jay Wilkerson
    BPL Member

    @creachen

    Locale: East Bay

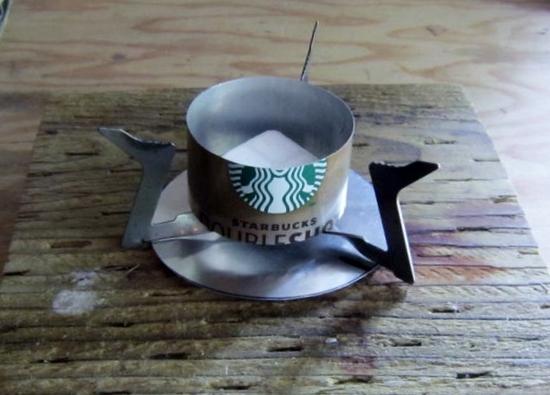

    004
    Starbucks Double Shot can at 0.1 gram- Almost a Gram Cracker

    #1970698
    Ian
    BPL Member

    @10-7

    I started this thread a week or so ago.

    http://www.backpackinglight.com/cgi-bin/backpackinglight/forums/thread_display.html?forum_thread_id=74560

    The cat can idea I had at that time didn't work out at all. I read this thread and figured that I'd give it one more try. I cut a 1/4" off the bottom and it fit perfectly on the stove. If you follow the link, you'll see that the can is well ventilated.

    I first tried it with a .25oz Coghlan tablet. There was no difference in burn times or the temperature obtained. I then tried it with the .5oz Esbit tablet. Once again, no notable performance difference.

    I have some aluminum from a craft store that I use for my windscreens. I'm going to play around with it and try to figure this one out. I'm sure using reflective material will probably help but I suspect that ventilation plays a key role in this project as well.

    The cat food can will be officially retired to the garbage can.

    #1971473
    Jay Wilkerson
    BPL Member

    @creachen

    Locale: East Bay

    Hey Jon, You were correct about the aluminum. It started to catch fire then it got bent out of shape and wrinkled up quickly! It seems like Titanium is the only answer. I will try that next. Thanks

    #1971496
    Jon Fong / Flat Cat Gear
    BPL Member

    @jonfong

    Locale: FLAT CAT GEAR

    Start with the 6 ounce steel can and dial in the design. Then switch over to titanium or stainless steel. The titanium foil that I sent you should arrive early in the week. Jon

    #1971501
    Jay Wilkerson
    BPL Member

    @creachen

    Locale: East Bay

    Thanks Jon, I will look for a steel can to cut to shape.

    Jay

    #1971541
    John Donewar
    BPL Member

    @newton

    Locale: Southeastern Texas

    I'm not so sure that aluminum is a complete no go for this idea. I used Home Depot aluminum flashing on a somewhat similar project and saw these results.

    I was using a tray stove like the one pictured below.

    Tray stove

    It was set up under my 1 cup cook pot as seen in the next picture.

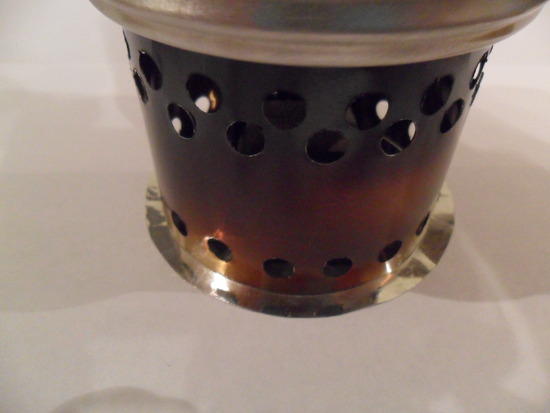

    Combo windscreen and tray stove under 1 cup cook pot

    After a test burn and boil my combo windscreen and pot support looked like this…

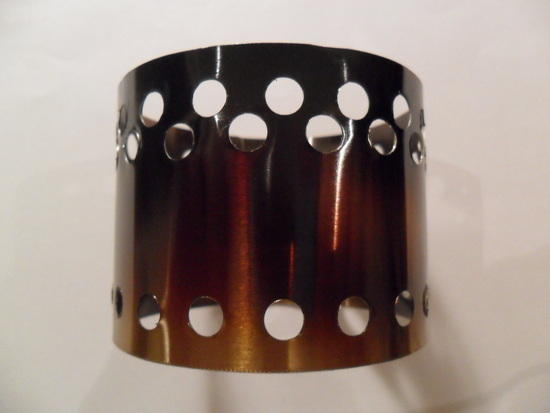

    Coppertone patina but not destroyed

    …it developed a copper toned patina due to the discoloration of the coating on the aluminum flashing material. The good news was that it maintained its shape and mechanical strength.

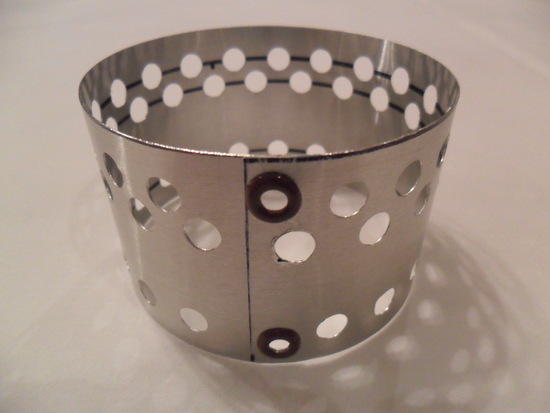

    Combo windscreen before test burn

    The ends were joined with eyelets and the holes were punched with a standard paper hole punch.

    Based on my results I'm pretty sure that a serviceable focusing ring for the tri-wing Esbit stove can be made from aluminum flashing.

    My combo windscreen weighed in at 7 grams. I am interested in seeing what a focusing ring made of Ti weighs for the tri-wing Esbit stove

    Party On,

    Newton

    #1971551
    Bob Gross
    BPL Member

    @b-g-2-2

    Locale: Silicon Valley

    Newton, the advantage of the Trail Designs Gram Cracker is that it folds down to almost nothing. Yours looks like it might be durable enough, but bulkier.

    Yup, you can do a lot with aluminum roof flashing. I wonder why they don't sell titanium roof flashing!

    I used to call it a flame concentrator. You call it a focusing ring.

    –B.G.–

    #1971566
    John Donewar
    BPL Member

    @newton

    Locale: Southeastern Texas

    I was only showing the components of what I used in my tests. I believe the tray stove puts the fuel tablet in roughly the same height from the "ground" as the tri-wing stove.

    The picture of the stove was only there to show what was used and not in comparison to the Gram cracker or a Tri Wing Esbit stove.

    If you view the video at…

    http://youtu.be/TtECThifq70

    …you'll see it was Jon who dubbed it a focusing ring. I actually call mine a combo windscreen and pot stand. Look closely in the second picture of my post, the "combo" is supporting my cook pot, resting on the reflective surface and encompassing my tray stove.

    My post was meant to show that I think the aluminum can version failed only because it was too thin and not because it was aluminum. The first line of my earlier post should have made that clear.

    Happy Easter Bob. ;-)

    Party On,

    Newton

    #1971654
    Roger Williams
    Spectator

    @kaydub

    Locale: N. Idaho

    It seems like if I could mount 2 wings on the long sides of the platform, I would have a gram cracker with a potstand, & I would just use the windscreen I use with my cat can stove.
    So what is the height of the pot over the Esbit when suspended in the Caldera Cone?

    #1972123
    Thayne N
    BPL Member

    @teethless

    Locale: Four Corners

    but nice minor threat sticker ya got there Jay!
