Topic

Cat tarp out of DIY sil


Forum Posting

A Membership is required to post in the forums. Login or become a member to post in the member forums!

Home Forums Gear Forums Make Your Own Gear Cat tarp out of DIY sil

  • This topic is empty.
Viewing 14 posts - 1 through 14 (of 14 total)
  • Author
    Posts
  • #1300099
    Daniel Saunders
    Spectator

    @boulderman

    Locale: Front Range

    Just for fun, I made a tarp out of jo-ann's ripstop. It's the first tarp I've made, and learned a lot. Cat cuts on all edges, grosgrain tie outs, etc. Happy with how it turned out. If I like it and use it, I'll probably make one out of pre-made silnylon next time..!

    To mix the sil, I put the silicone in an empty milk gallon and then eyeballed an appropriate amount of mineral spirits and then shook it all together. The mix was viscous enough to brush on with a bristle brush. I did one side, then flipped it over and did the other, just to be sure. I then wiped the whole thing down with paper towels to absorb any excess. If anything, I erred on the side of applying too much, but I didn't want to do too little…

    It's still drying/curing outside, so I don't know how heavy it is yet. It was about 9 oz before sil application.

    Tarp 1

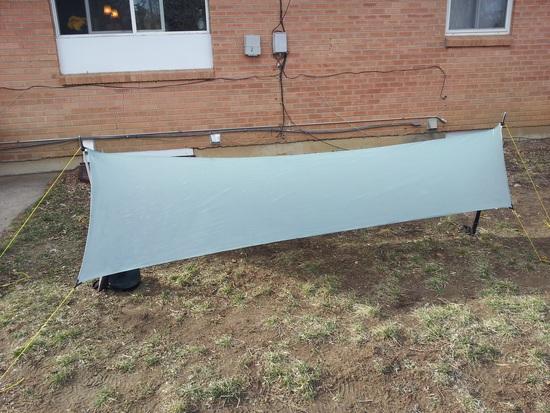

    tarp 2

    #1962328
    Jerry Adams
    BPL Member

    @retiredjerry

    Locale: Oregon and Washington

    Nice experiment. It will be interesting to see what the weight is and how waterproof it is.

    The ultimate test of waterproofness, would be to put something that absorbs water, like a sleeping bag, touching the inside of the tarp.

    Maybe what you did is easy for a MYOGer, but difficult for a manufacturer – waiting for it to cure, evaporation of mineral spirits into the atmosphere…

    #1962334
    Andrew F
    Member

    @andrew-f

    Locale: San Francisco Bay Area

    Interesting. I'd think it would be hard to match the waterproofness and/or weight of commercial-grade silnylon. Maybe you can convince Richard Nisley to measure the hydrostatic head of a sample.

    #1962336
    Daniel Saunders
    Spectator

    @boulderman

    Locale: Front Range

    I agree, it would be hard to beat pre-made sil. Like I said, this was just for fun.

    I got the idea from this monster thread over at hammockforums https://www.hammockforums.net/forum/showthread.php?t=2011

    People have reported both good and bad results over there, some achieving weight results similar to pre-made sil (i.e. 1.4 oz using 1.1 ripstop)

    #1962453
    Jerry Adams
    BPL Member

    @retiredjerry

    Locale: Oregon and Washington

    and what did they report for water-proofness?

    #1962522
    Daniel Saunders
    Spectator

    @boulderman

    Locale: Front Range

    Results varied based on method. Most of those who sewed the tarp first then brushed on the sil (what I chose to do) reported that their tarps passed a hose or shower test just fine. Some of those who dunked their tarp in a bucket of sil and massaged the liquid into the fabric and then hung to dry/cure reported that there were spots of misting when hosed down (probably caused by residual air bubbles). Others tried spraying it on, and I don't think anyone had good results with this.

    #1962724
    Colin Krusor
    BPL Member

    @ckrusor

    Locale: Northwest US

    Daniel, do you remember if anyone in the hammockforums thread tried airbrushing? I have wondered about that. I'll go read through the thread myself if you don't recall.

    #1962737
    Daniel Saunders
    Spectator

    @boulderman

    Locale: Front Range

    Colin – do you mean out of a paint-type sprayer? If so, I think people tried that and I don't remember them having good results.

    #1962739
    Daniel Saunders
    Spectator

    @boulderman

    Locale: Front Range

    I took the tarp down today to weigh it and the sil added 2.9 oz to the tarp. I'll check how waterproof it is later sometime.

    #1962827
    Colin Krusor
    BPL Member

    @ckrusor

    Locale: Northwest US

    I meant a little airbrush, but that probably hasn't been tried because it would take a while. I've sprayed silicone onto small pieces of fabric with my airbrush and it works well. It is very controllable and a thin, uniform coating is fairly easy to achieve. A paint sprayer is similar, but it would spray a much larger volume of fluid in larger droplets.

    Nice work on the tarp. It looks great and, given the weight, it sounds like you managed to apply a pretty thin film of silicone.

    #1962899
    Daniel Saunders
    Spectator

    @boulderman

    Locale: Front Range

    Yeah I don't recall anyone ever trying an airbrush… Might be worth a shot if you could get good penetration into the fabric, but like you said, it would be very time consuming.

    #1963093
    Dennis rosloniec
    Member

    @lpranal

    Locale: great lakes

    What's the dimensions? I made my own with the same materials, mine's approx. 10 x 12 (thinking about trimming it down) and w/ tie outs and guy lines weighs in at just over a lb. I did the "dunk" method after sewing, and it's completely 100% waterproof – the first night out it survived a torrential hour-long downpour.

    #1963191
    Daniel Saunders
    Spectator

    @boulderman

    Locale: Front Range

    Glad to hear yours is water-tight! I still need to test mine. It is about 9 ft long, about 68" at the head end, and about 48" at the foot end. With zing-it lines and the stuff sack it weighs 12.7 oz.

    Did you seam seal the ridgeline after the sil treatment?

    #1985637
    Daniel Saunders
    Spectator

    @boulderman

    Locale: Front Range

    Just an update – I finally had time to check to see if the tarp resisted water, and it passed a vigorous 5-minute hose test today with flying colors! No water penetration or misting anywhere that I could feel.
