  • #1297115
    Colin Krusor
    BPL Member

    @ckrusor

    Locale: Northwest US

    My usual backpacking photography kit consists of my 5oz camera and my 1.5oz gorillapod. I recently acquired a smaller camera (the 2.9oz Samsung ST30) and I have been looking for a lighter alternative to the gorillapod.

    I had an old mini-tripod, so I dissected it for the mounting screw and ball joint. The mounting screw is aluminum, and the socket component of the ball joint looks like nylon. I drilled a hole in a SmartWater bottle cap, pushed the ball-joint into the opening (it snapped in nicely) and secured it with methacrylate glue.

    I failed to weigh the unmodified cap beforehand, but the modified cap weighs 4 grams. The platypus cap next to it in the photo below weighs 6 grams.

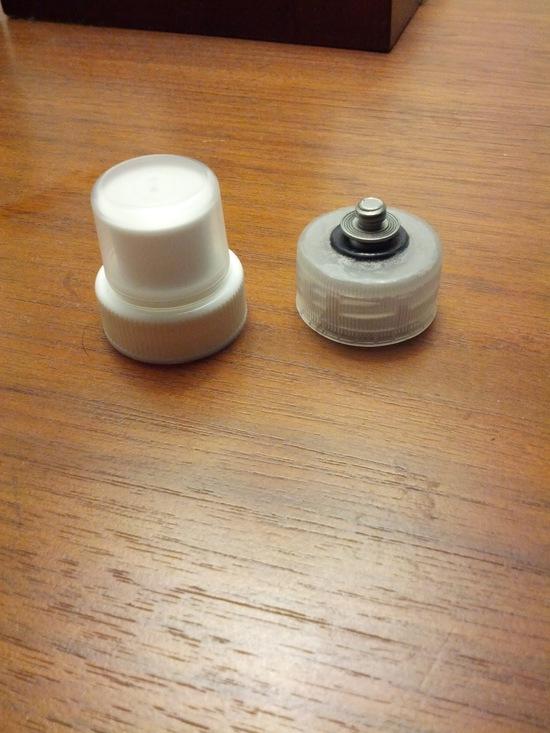

    cap

    cap2

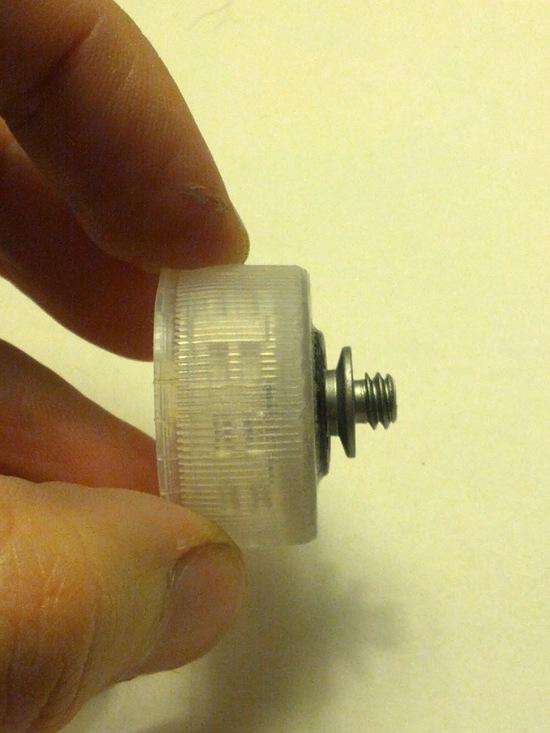

    cap3

    cap3

    It is very stable with the camera attached, despite the position of the mounting point on the camera. The ball joint allows the camera to be pointed up or down or swivelled around.

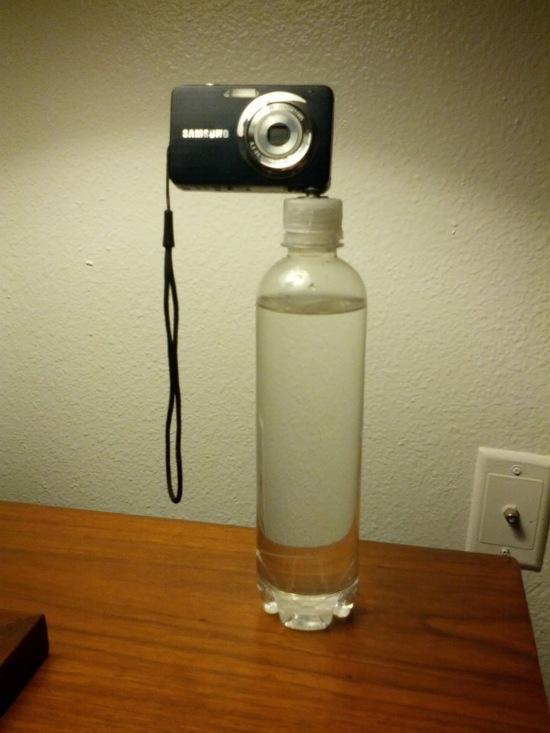

    cap4

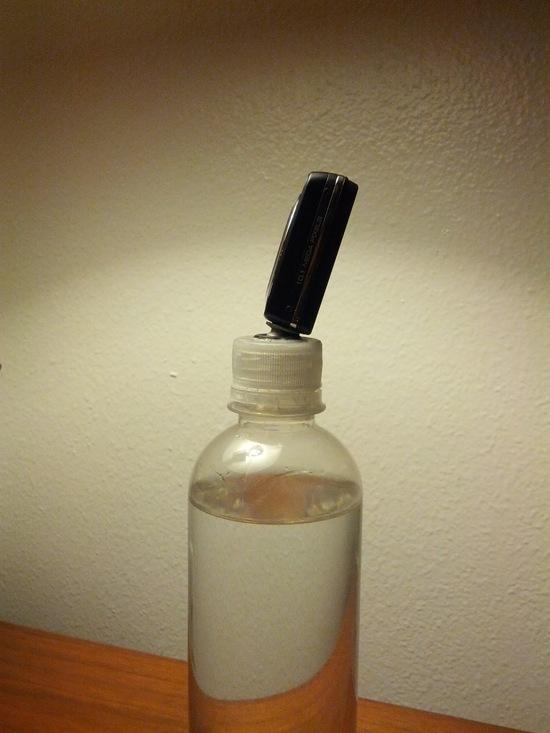

    cap5

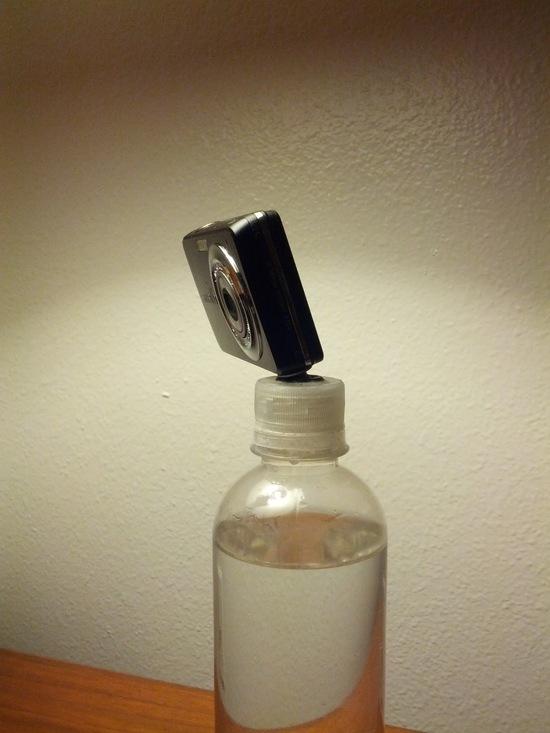

    cap6

    I inverted the bottle and squeezed it hard and the modified cap doesn't appear to leak.

    #1935922
    Daryl and Daryl
    BPL Member

    @lyrad1

    Locale: Pacific Northwest, USA, Earth

    Clever.

    #1936365
    Adrian MITCHELL
    Spectator

    @adie-mitchell

    Locale: Northwest Mass

    just make sure you only need to take photos when your water bottle is full!

    #1936414
    Colin Krusor
    BPL Member

    @ckrusor

    Locale: Northwest US

    Yes, it wouldn't work when the bottle is empty. This bottle is very narrow, though. I would guess that a shorter, wider bottle would be stable with just a few ounces of water in it (in the absence of wind).
