Topic

Roomy 2-person tarptent using 4 poles?


Forum Posting

A Membership is required to post in the forums. Login or become a member to post in the member forums!

Home Forums Gear Forums Make Your Own Gear Roomy 2-person tarptent using 4 poles?

  • This topic is empty.
Viewing 9 posts - 1 through 9 (of 9 total)
  • Author
    Posts
  • #1294456
    Sumi Wada
    Spectator

    @detroittigerfan

    Locale: Ann Arbor

    Has anyone made or thought about making a 2-person tarptent that utilizes FOUR trekking poles instead of the usual two? I'm thinking something like the Squall but using trekking poles (collapsed) instead of the struts.

    My son and I do an annual hike in the Grand Canyon and, last year, the mice were annoying enough that my son has expressed a strong desire to sleep in an enclosed tent if we're in an established camp. Our 2-person tarp that we normally take for rain weighs all of 13oz, so the thought of adding an "ultralight" tent that weighs 2-3 lb is a little distressing. I'm also not in the position to buy a cuben tent.

    So, I thought I'd make one and make it specifically for our intended use. So, we'll have 4 trekking poles but all compact lengths. I'd use silnylon and netting. One door is fine. Rain is actually unlikely.

    I know I could just add netting to the basic ridgeline tarp I have, but I thought I might be able to make something roomier by utilizing 4 poles.

    Any thoughts?

    #1915796
    BlackHatGuy
    Spectator

    @sleeping

    Locale: The Cascades

    Adjust your idea slightly. Add netting to your current tarp, but with tieout points that allow you to stake down the netting on the same slope as the tarp instead of the netting coming straight down from the edge of the tarp, so while the 'top' of your shelter would remain the same, the bottom would offer lots more room. Just cozy up and bring the sides in if it's going to rain/if it rains.

    Hope that makes sense.

    #1915799
    drowning in spam
    Member

    @leaftye

    Locale: SoCal

    It could be a sort of A-frame with a pair of poles in the center with a spreader bar for shoulder room. The other bars would go at the ends. This should allow side entry.

    #1915845
    Sumi Wada
    Spectator

    @detroittigerfan

    Locale: Ann Arbor

    @Douglas, yeah, that's actually what I had in mind when I said "we could just add netting to the basic ridgeline tarp". We already do use the extra poles to prop up one or two corners (like an awning) if it rains without any wind. It's probably the lightest option.

    #1915877
    Franco Darioli
    Spectator

    @franco

    Locale: Gauche, CU.

    Just for fun I set up a Squall using 4 poles.
    As it is of course is not going to work all that well but if made so that the two rear poles are inside a pocket or just have grommets to sit inside it will work.
    Do keep in mind that this is just a quick "mock" set up :
    Squall 4 poles

    #1915901
    Jordo _99
    BPL Member

    @jordo_99

    Locale: Nebraska

    Feeling creative today…I decided to draw up a prototype for fun regardless of whether or not you like the concept.

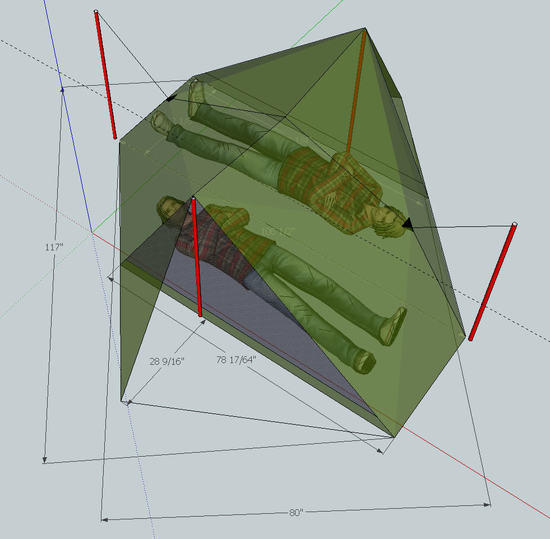

    Tried to think of the most efficient way to make a tent with the least material…here's the single walled tent I came up with that would use 4 trekking poles and most likely weight under 28oz with ease:

    For reference, models inside are sized to be 6'0"

    If using 1.35oz silnylon for the fly and floor and it being a single walled tent with 4" bathtub (just used 1.35oz for the mesh doors as an estimate) it would come in around 25-26oz before adding tie-outs. 36" tall can comment on it later if you're interested:

    prototype

    #1916055
    Sumi Wada
    Spectator

    @detroittigerfan

    Locale: Ann Arbor

    @Jordan, that looks interesting. I came up with a similar concept by looking at the Tarptent Stratospire instead of the Squall. Seems like the top might sag but maybe not if I'm careful about using catenary seams.

    Overall, though, the Stratospire seems like more surface area than the Squall.


    @Franco
    , the Squall is what got me thinking about doing this. I have the Contrail and really like it and expanding that idea toward the Squall seemed like the logical step.

    #1916102
    Jordo _99
    BPL Member

    @jordo_99

    Locale: Nebraska

    Actually the top ridge-line that I drew here dips down a little (4in), similar to a Nemo Meta 2P but not nearly as drastically (close to 8in i think)
    http://www.nemoequipment.com/nemo2011-meta2p-tent

    The concept, is to take a single walled tent like the Meta 2P (just keep referring to that but SMD Haven or Lunar Duo as well as a handful of others are very similar) and shrink it down as much as possible without sacrificing sleeping area. That meant rotating the people 45 degrees and offsetting them slightly but it appears to work.
    There's not a whole lot of head room but the sides are pulled out by the 2nd pair of trekking poles so it should help out to make the 36in height feel roomier. This could easily be made larger (42-48in tall) without adding a lot more weight but it just depends on what you want out of it.

    For reference, here's the thread I have going on a MYOG 2 person tent:
    http://www.backpackinglight.com/cgi-bin/backpackinglight/forums/thread_display.html?forum_thread_id=66065

    I was trying to estimate weights on the one I'm making, which will be quite big for 2 people, and came up with 35oz for a single-walled or 40oz for double walled (detachable, netting/floor) as I haven't quite settled on which I want yet…I'm just working on the fly for now and will figure out the base when I get to it. This is including zippers and but not stakes/poles, thread, or seams and seam sealing…so add another 2-4oz to that and it should be pretty close.

    #1916112
    Jordo _99
    BPL Member

    @jordo_99

    Locale: Nebraska

    I made it 48" tall now…could easily lower the "wall tieouts" to give it a steeper slope. Here are some pictures to reference what I was thinking at least:

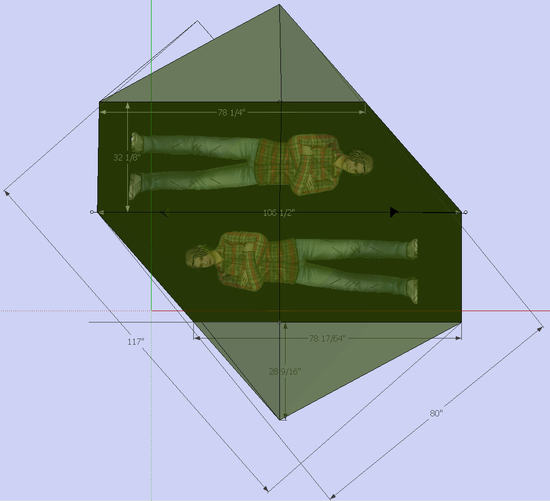

    Top

    Front

    Side

    Angle

    I think the width would need to be shortened slightly if you wanted the walls to be a single piece since it's currently 64" and doesn't allow for making seams where the vestibules connect…would put it closer to 60" to be conservative but the 30" width per person should feel very roomy when laying down.

    *** Just to let you know, I'm not at all trying to push this idea onto you. I just love drawing this stuff up so I get a little gung ho about it. ***
