  • #1286118
    Jim Leonard
    BPL Member

    @mxracer33x

    Locale: West Coast

    Ive been using this technique for a while now with great success so I figured Id pass it along.

    Ive been making wind screens with Titanium foil in the .005 average thickness and it punches easily with a hand hole punch. I made some larger punches for punching acces holes for my stove valves and larger inlet in the bottom as well but it was nice to be able to keep them adjusted at the diameter I wanted.

    I made one windscreen that I could use for my winter pot boiling water or my summer stove "gourmet" cooking in a frypan, all with the same windscreen. A series of well placed holes and a couple of punched tabs allowed me to adjust the diameter to my needs.

    I used a standard $1 hand hole punch and ground the punch head down to 1/2 the size and cut the leading edge out of the hole in the lower "jaw" of the punch. this leaves a nice half circle punched in the sheet. Then you just use a razor to cut both sides of the tab to the desired length. I have found 3/8" – 1/2" to work well.

    PICTURES!

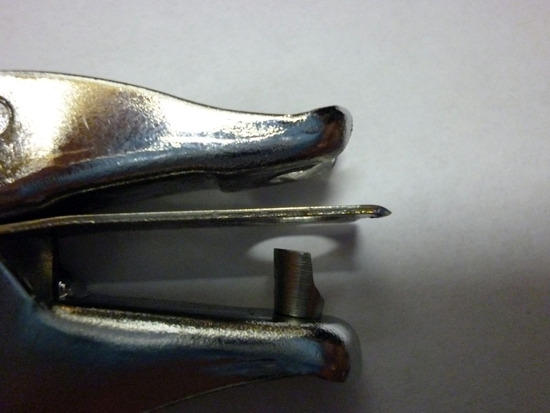

    Ti foil punch 1

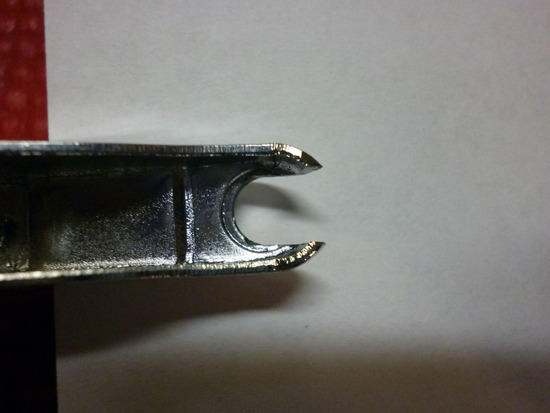

    Ti foil punch 2
    ti tab1

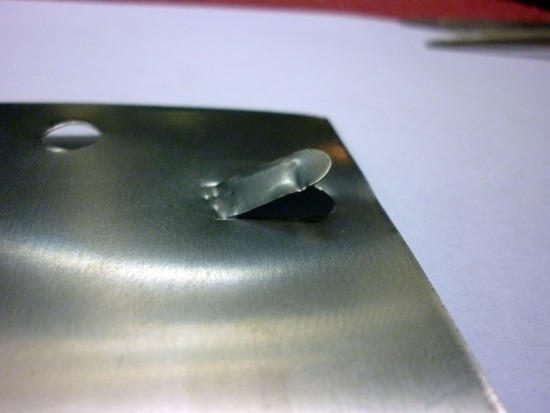

    ti tab2

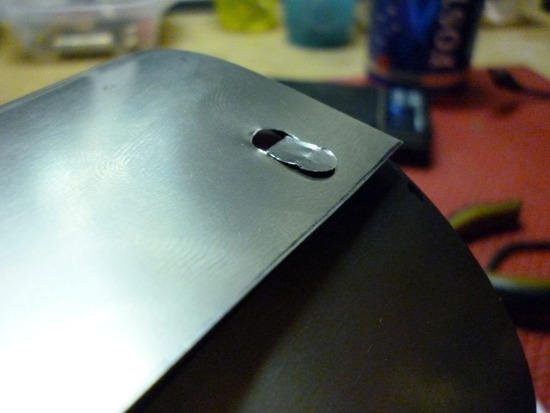

    ti tab3

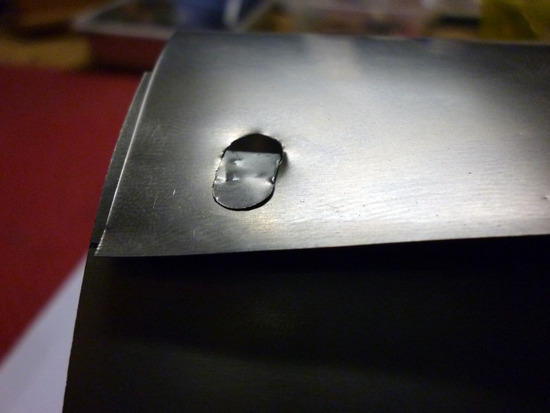

    ti tab4

    #1843949
    Corey Miller
    Member

    @coreyfmiller

    Locale: Eastern Canada

    I usually use my sleeping pad if the wind is kicking my ass. This works if you want to carry it. I use a wood burning stove though.
