1p pyramid Prototype

This topic is empty.

Viewing 14 posts - 1 through 14 (of 14 total)

Author

Posts
Aug 28, 2011 at 8:18 am #1278618

Jason Hung
BPL Member

@moma-moma
Locale: store.picharpak.com

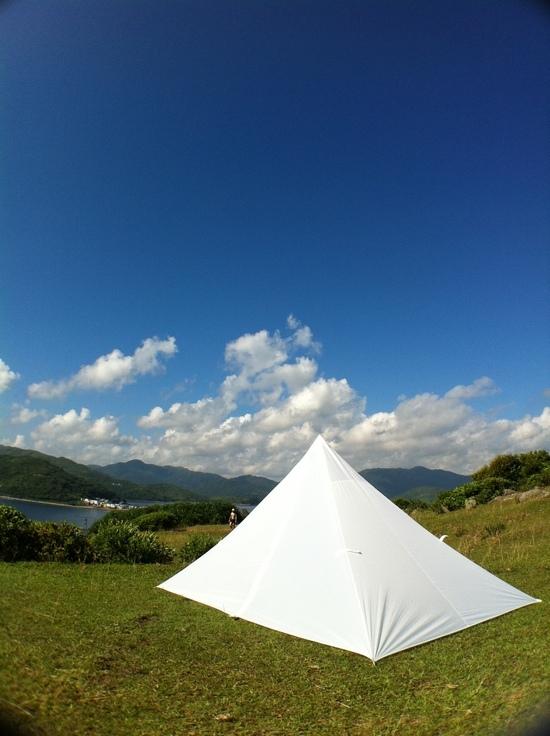

THis is the first pyramid i had made, and using spinnaker .75oz to test the shape and it size, weight around 400g without poles, when the final version will use CT1k.18/NM.32 0.83oz, weight may be similar, But it can keep the sun away !

size 270x160cm

Dual doors

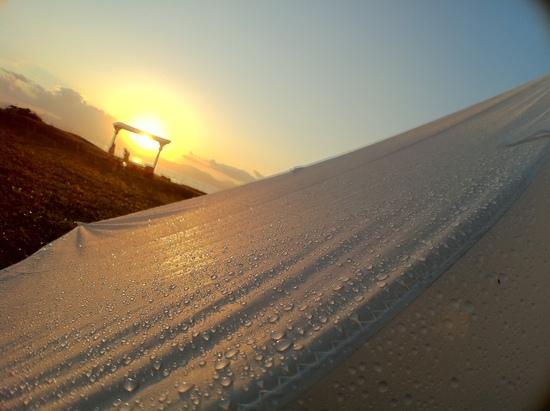

Surprise that it does waterproof

Aug 28, 2011 at 3:36 pm #1773731

Chad Lorenz
BPL Member

@chadl
Locale: Teton Valley, Wydaho

Love the double door design! Very cool!

Aug 28, 2011 at 4:32 pm #1773745

Tim Zen
Spectator

@asdzxc57
Locale: MI

Is there a top vent?

Aug 28, 2011 at 5:47 pm #1773764

Chris Peichel
Member

@momo
Locale: Eureka

That looks very well made, I dig the double doors. It will be cool to see your final version in cuben. Nicely done.

Aug 28, 2011 at 6:51 pm #1773777

todd
BPL Member

@funnymo
Locale: SE USA

Beautiful shelter!

Aug 28, 2011 at 7:59 pm #1773788

Edward Z
BPL Member

@fuzz
Locale: Sunny San Diego

Looks wondeful!

Aug 30, 2011 at 2:15 am #1774213

Jason Hung
BPL Member

@moma-moma
Locale: store.picharpak.com

@Timothy

This one didn't add the vent yet. but final one will definitely adding 1-2 vents at the peak there.

Aug 30, 2011 at 3:42 am #1774217

Tara poky
Member

@littlecats
Locale: HK

Love the double door design! :P The white color is so cool.

Aug 30, 2011 at 8:51 am #1774273

j lan
Member

@justaddfuel
Locale: MN

I don't think adding vents will really do much in terms of reducing condensation.

Smoking pyramid, very nice!

Aug 30, 2011 at 8:58 am #1774277

JASON CUZZETTO
BPL Member

@cuzzettj
Locale: NorCal - South Bay

Winner! I really like it. The double doors are rockin. Great Job!

Aug 30, 2011 at 3:02 pm #1774437

Franco Darioli
Spectator

@franco
Locale: Gauche, CU.

Size
270x270x160 or 270x160x ?
Franco

Aug 30, 2011 at 3:31 pm #1774453

Brian UL
Member

@maynard76
Locale: New England

Are you planning to use a double door net tent inside?
It looks really nice. Nothing like the simplicity of a Pyramid.

Aug 31, 2011 at 7:53 am #1774640

Jason Hung
BPL Member

@moma-moma
Locale: store.picharpak.com

@James,
if by adding vent at the peak there and set the pyramid little bit above the ground it will close to a Tarp function not 100% like a tarp, but i believe it help somehow of the condensation

@ Franco,
Size is 270x160x130

@ Brian
Nesting still thinking how to make it as light as possible. if by adding a nesting tent inside, of coz it should have a double door to fit the pyramid dual door design.

Sep 2, 2011 at 10:45 pm #1775616

Franco Darioli
Spectator

@franco
Locale: Gauche, CU.

Size is 270x160x130

That is what I suspected by looking at your pics and the angle of the walls.
I would strongly suggest that before you make a Cuben version you spend some time inside the prototype on top of the mat you intend to use and inside the sleeping bag too.
Hint : at 5'8" I my shoulders would touch the walls even without a mat under me.
(if you have a shorter torso than legs you will fit better)
Franco
