My 1st DIY Tarp


Forum Posting

A Membership is required to post in the forums. Login or become a member to post in the member forums!

Home Forums Gear Forums Make Your Own Gear My 1st DIY Tarp

  • This topic is empty.
Viewing 4 posts - 1 through 4 (of 4 total)
  • Author
    Posts
  • #1276426
    Philip Carr
    Member

    @unsponsored

    Locale: UK

    I finished the first of my test tarp today. Probably three hours put into this. This includes lots of test pieces for tie out points that were tested to destruction.

    Its made from uber light weight ripstop spinnaker material, apparently original cost is £75 per square metre.

    It's a basic rectangle approx 8ft long and 5ft wide give or take. All of the hems are triple rolled and tie out points have four layers of re-enforcement. Thread is 100% polyester gutterman thread. Tie out points are black 1" grosgrain.

    With a total of 8 guys and line locks plus an Alpkit silnylon stuff sack it comes in at 157g!!!! Its really small and can even compress further than shown in the pics.

    There are already a couple of things I'd change. I tested which side the tie outs should be attached to. Four were done underneath and four above. It looks like atheistically, putting them on top is the way to go.

    Enough talk here's the pics.

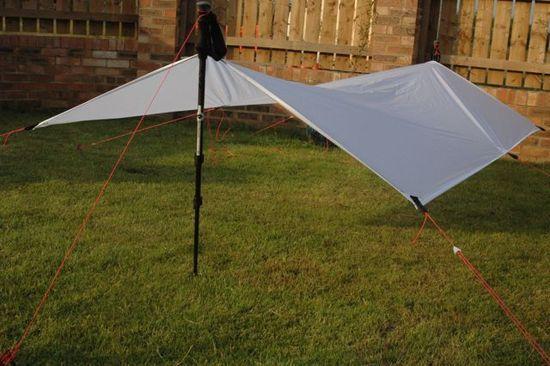

    DIY tarp

    More pics – http://www.bikeandbivi.co.uk

    #1756931
    Jerry Adams
    BPL Member

    @retiredjerry

    Locale: Oregon and Washington

    Nice looking tarp

    5.5 ounces is pretty light

    4 tie-outs underneath and 4 on top – how funny – I hate it when I do that – well, maybe hate is too strong but I try to do them the same just to pacify my ADDness

    Catenary curve? sort of looks like it but there's no seam

    How waterproof is the fabric? I got some spinnaker fabric of about the same weight that wasn't supposed to be waterproof, but when I set it up for days in the rain it stayed dry underneath for days

    #1757803
    Philip Carr
    Member

    @unsponsored

    Locale: UK

    4 tie outs on top/bottom was deliberate as I wanted to check out which appeared to be best.

    No cat cut as the tarp is one full length, no joins at all. It also appears to be pretty waterproof.

    #1759760
    Philip Carr
    Member

    @unsponsored

    Locale: UK

    Started another this evening. Added a walkthrough on my site

    http://www.bikeandbivi.co.uk/php/viewtopic.php?f=2&t=149
