This is my latest and quite possibly final stove creation. It's a titanium and stainless steel two man wood stove. It's sized for my Open Country two quart pot. It weighs in at four ounces, or just two ounces per person. I don't think I'll be carrying an alcohol stove from now on. It's more than just the weight. It's never worrying about whether I can afford to make another cup of coffee or temper a pot of water for washing. I just do it.
Other things I like. Can be used on a picnic table. Bottom air intake makes it wind direction neutral. No direct path for embers to escape. Works in the rain.
Walls, grate ring, plenum baffle disk — 0.005in. titanium foil from Titanium goat. $48.
Legs — 0.125 titanium rod from McMaster Carr. $16
Leg support ring, Chimney base ring: 0.01 stainless steel. scrap on hand.
grate – 0.033 stainless steel aircraft safety wire. scrap on hand.
Assembly: Tab and slot. No rivets, screws or welds.
Tools required: scissors, tin snips, pliers, hacksaw, wire cutters, propane torch (or gas stove)
Patterns were developed using QuickCAD, fixed to sheet goods using 3M artists spray adhesive and cut out using scissors and tin snips.

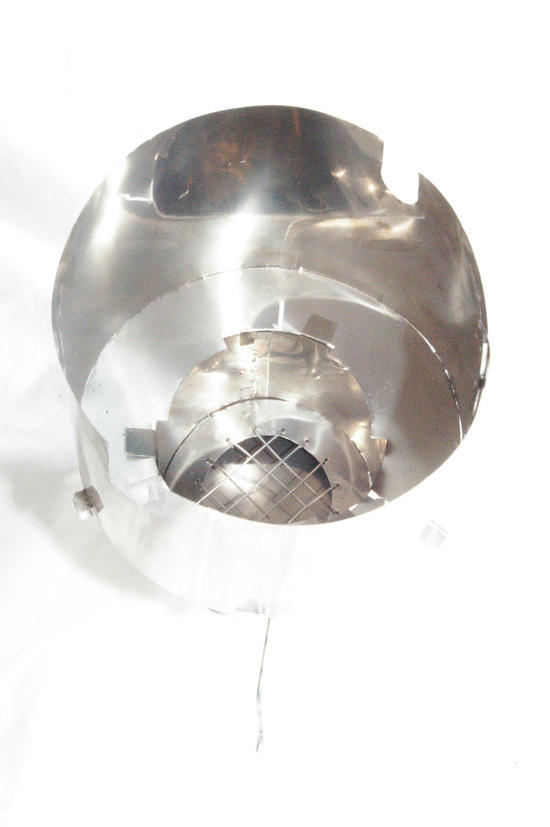

Top view showing interior

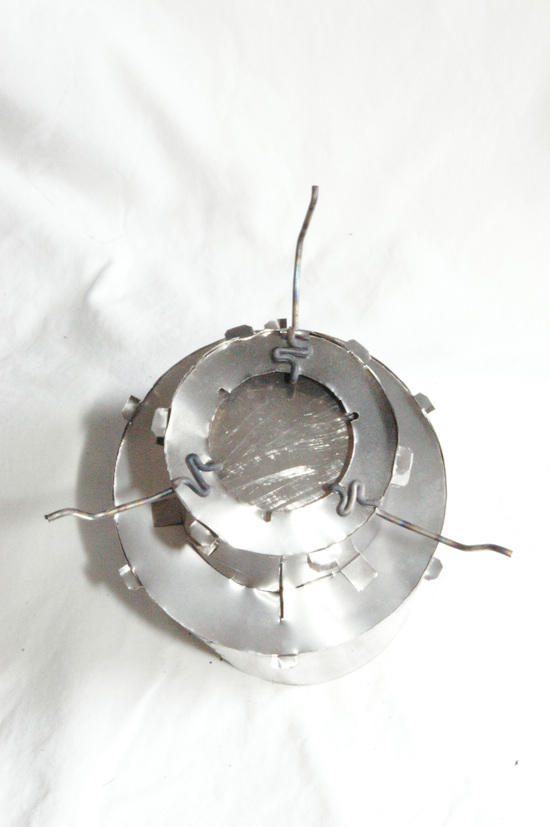

Bottom view showing leg support ring.

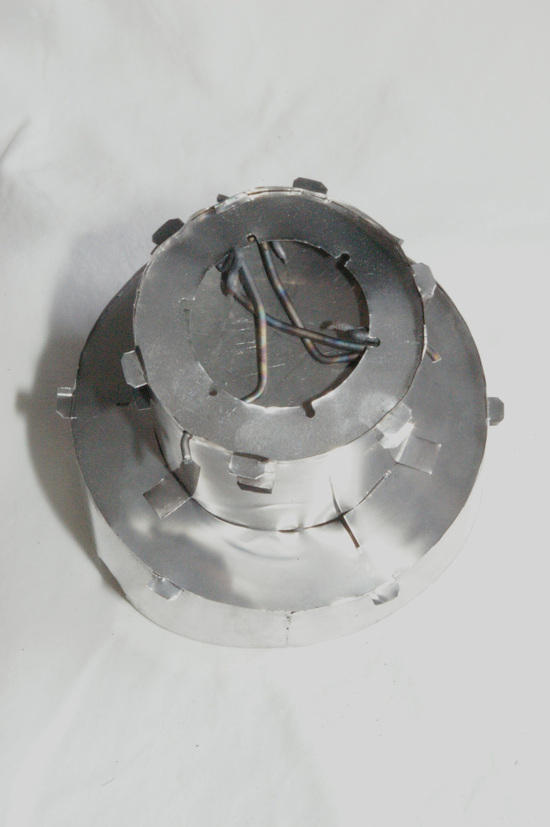

Bottom view, legs retracted.

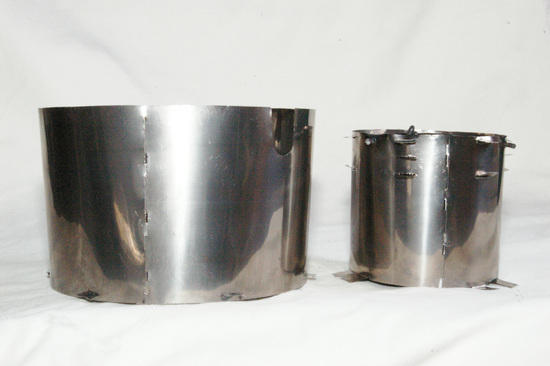

Chimney and firebox separated for packing.

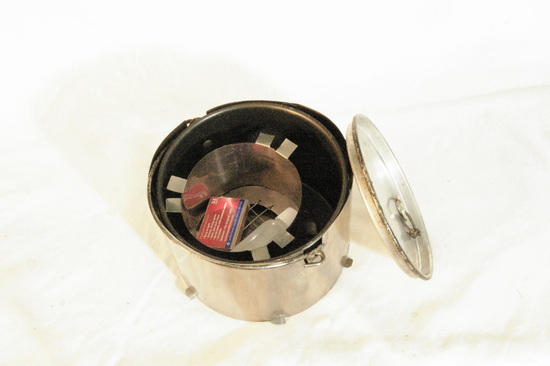

Stove packed in and around pot with matches and five day supply of "tinder". I've made tinder on the trail, but my preferred source is charcoal lighter fluid.

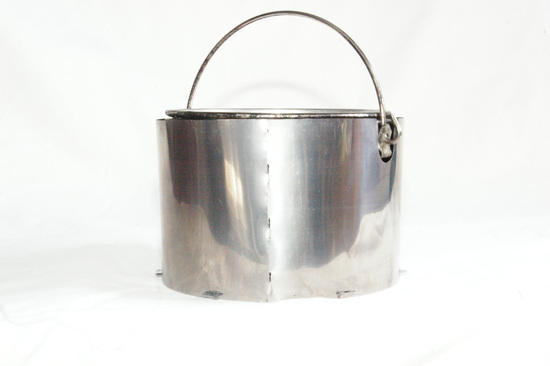

Packed and ready to go in the stuff sack.

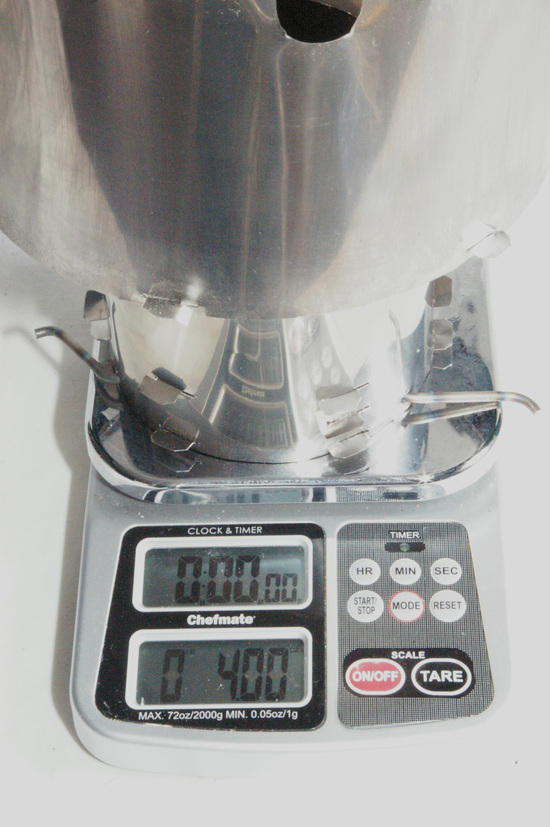

On the scale.

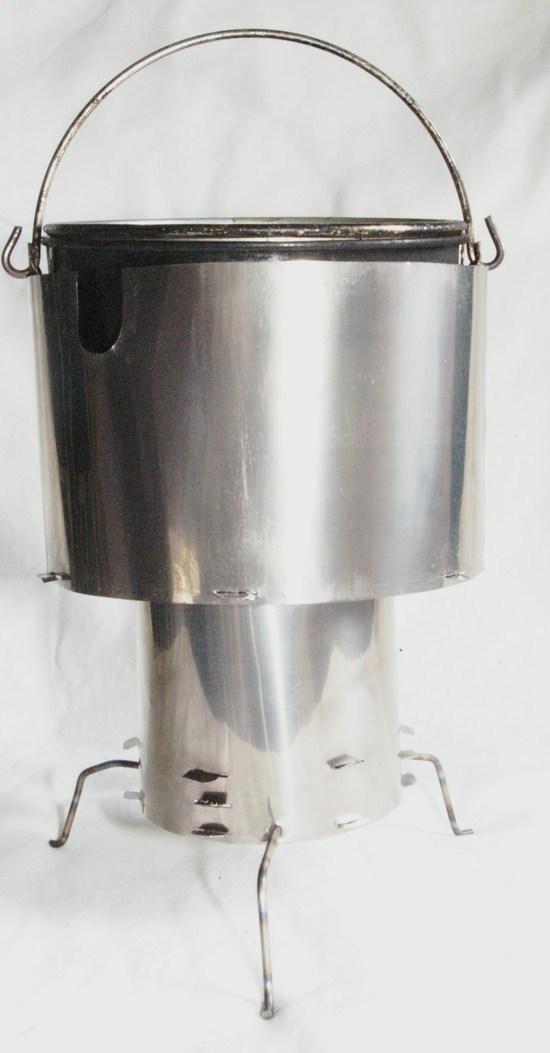

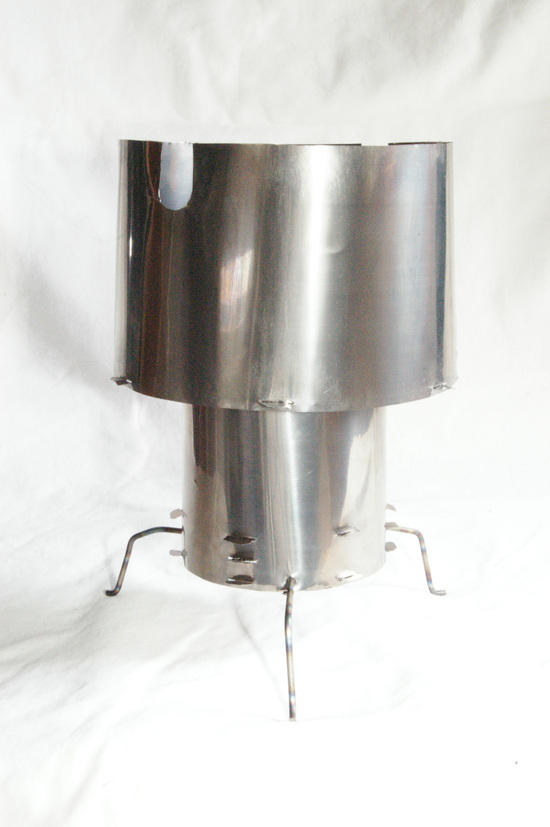

Ready to cook

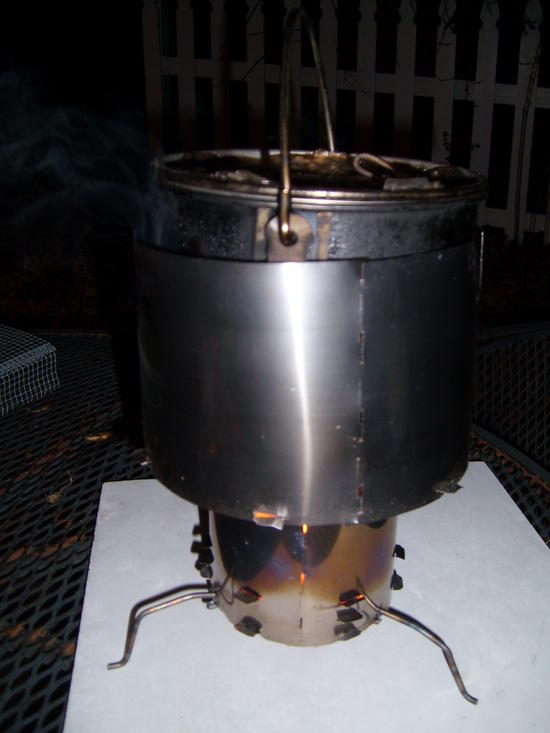

Fire in the hole!Jan 18, 2009 at 6:54 pm #1471096
Sweet stove, Herman!Jan 18, 2009 at 6:55 pm #1471097
Nice work HermanJan 18, 2009 at 7:11 pm #1471101
@tbeasleyLocale: Pigeon House Mt from the Castle
Nice work Herman, great stove.
>This is my latest and quite possibly final stove creation.
I think this all the time until the next design pops into my head.
TonyJan 18, 2009 at 9:01 pm #1471121
Nicely done…is it possible to feed the fire without lifting the pot? Or is it sized to boil a full pot with one firebox fill?Jan 19, 2009 at 5:24 am #1471168
I've been asked that question several times, but I'm not certain what the issue is. The way I look at it is: lots of wood stoves have doors. In my stove the door doubles as a pot (how's that for dual use!) You lift the pot, you throw in some wood, you lower the pot. No big deal. It would be possible to add a door for stoking, but it would add nothing except complexity.
To answer your specific question, the firebox in this incarnation of the design will keep on cooking for about 10 minutes after I stop feeding it. So yes, most camp meals don't require re-charging. In some previous experiments, the firebox diameter was about half what it is now. Those designs required stoking about every two minutes, but the issue wasn't having to lift the pot as much as it was having to pay constant attention to the stove. It was difficult to do the myriad little tasks most of us perform — eg. getting out the spork, sorting through the food bag etc. — while the water was heating up.
So if you have the space, a 4 inch diameter appears to be optimal for a backpacking stove's firebox. The weight penalty is nil.
HJan 19, 2009 at 9:08 am #1471197
Looks like the product of use, well reconsidered.
Isn't it great that you can get such valuable criticism/questions here? Love it.
In that vein, does this setup have any cons or planned improvements?
What is the plastic under the legs in the 3rd picture?
I've only ever used gas. Does fire attract more animals?Jan 19, 2009 at 9:26 am #1471202
Cons: Not as fast to set up and get going as gas or liquid fueled stoves. Ashes. Smoke (can also be a pro because it drives the bugs away).
Material under stove in all photos except last is a tablecloth of unknown composition. In last photograph, stove is sitting on a scrap of primed MDO plywood (observe no scorching).
Something I forgot to mention: Last time there were open fire restrictions in the Shenandoah National Park, the ranger I asked said I could use my stove (a steel prototype of the titanium stove) because it completely enclosed the fire.
As far as attracting animals goes, the only careful study I've made shows no increase in the numbers of elephants or gnu's in my camp sites when using wood. Not enough data for any conclusions about other fauna :)
HJan 29, 2009 at 5:26 pm #1473912
I had a little revelation of how to better support the pot. I put an "X" of stainless steel under it. That allowed me to replace the stainless steel base ring of the chimney with titanium. That cut the weight from 4.0 to 3.7 oz.Feb 15, 2009 at 1:14 pm #1477999
I'm a recent convert to the British Honey Stove from backpackinglight.co.uk. I can confirm also that fire seems to cause no increase in animal numbers visiting. In fact for some reason they prefer to avoid it. My dog positively hates it, so I guess if you go out regularly with a sensitive pooch a wood stove might not be the best thing.Feb 17, 2009 at 7:38 pm #1478552
Thanks to Geoff for confirming my theory that wood stoves don't increase the number or variety of large mammals in the campsite.
After several more runs, the top of the firebox began to take on an egg shape. The narrow end of the egg was at the seam. I guess this makes sense. The seam is closed with interlocking tabs, not welded, so the stresses there aren't the same as around the rest of the circumference. To solve this problem, I added a fine wire around the top of the firebox. I twisted the ends together tightening the loop until the top regained its round shape.
I just returned from a weekend trip in the mountains of West Virginia where I did the cooking for me and a buddy. The wire did it's job. The firebox retained it's cylindrical shape. My friend was astounded that such a light stove — the term he actually used was "flimsy"– could hold up to repeated hot fires. I must admit that it's a little disconcerting to see it glowing red in the darkness, but it cooked red beans and rice, baked muffins and boiled coffee water without difficulty.
