  • #1229895
    Shawn Taylor
    Member

    @staylor310

    Locale: Sierra

    I had posted a thread a while ago, asking for information on materials to make a super light quilt. I finished the quilt about 2 weeks ago and tested in this weekend. Although, I only used it in temps down to about 50 deg, I hope that it will keep me warm down to 40. I used it drapped over me with no additinal clothing, only pants and a T shirt. I had to snap the neck closure and draw the girth in a bit, in the middle of the night, but other than that, the comfort was great.

    Here are the specs-
    Momentum Shell
    Silk Liner (0.5mm)
    Climashield XP (2.5oz)
    closed round footbox
    1 adjustable back strap
    snap closure at neck
    w/ griptese drawcord

    Shoulder Width: 42"
    Foot Width: 33"

    Weight: 8.6oz (my goal was 8oz, but went over at the expense of the extra features)

    Pics:
    Quilt Shell

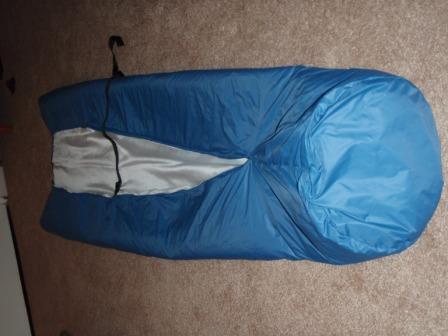

    Quilt Foot

    Quilt Liner

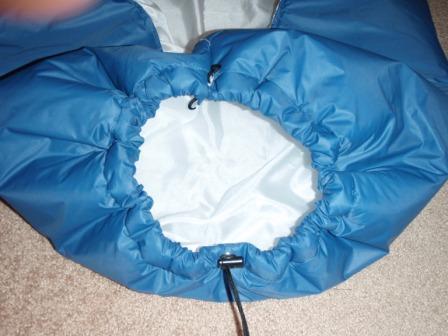

    Quilt Drawcord

    Quilt Snap

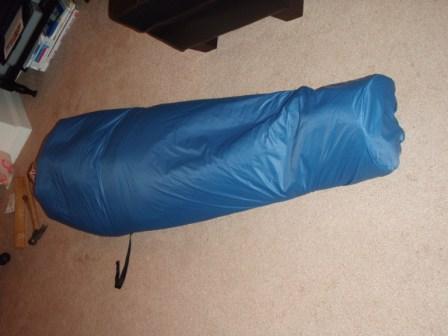

    Quilt User

    I made this quilt the same size as my Nunatak Ghost, but some how ended up with a smaller footbox. It would be nice to have a slightly bigger footbox with a size 11 foot, but it isn't that bad. The Silk Liner was a good weight saver, but it is very fragile, and requires extra caution when using the quilt. A sharp toe nail could probably rip it.

    #1440717
    Michael Davis
    Member

    @mad777

    Locale: South Florida

    Great looking quilt Shawn.

    I really like the roomy footbox! Nice touch!

    #1440720
    Roger Caffin
    BPL Member

    @rcaffin

    Locale: Wollemi & Kosciusko NPs, Europe

    Hi Shawn

    Looks good.

    > 1 adjustable back strap
    > snap closure at neck
    > w/ griptese drawcord

    Interesting idea. The quilts I have made for my wife and I are similar but have 300 g of 800 loft down, which makes them much heavier than yours. But the snap at the neck – hum, I am going to think about that idea some more. A nice idea.

    Cheers

    #1440746
    Sam Haraldson
    BPL Member

    @sharalds

    Locale: Gallatin Range

    Very nice craftsmanship, Shawn. I like the use of silk inside even if it is at the cost of fragility. When taking things to that magical SUL level this is often a sacrifice that needs be made.

    #1440754
    mark henley
    Member

    @flash582

    A great looking quilt!

    What was your source for the silk?

    #1440779
    Roger Caffin
    BPL Member

    @rcaffin

    Locale: Wollemi & Kosciusko NPs, Europe

    Hi Shawn

    > Silk Liner (0.5mm)
    Ah …. I doubt it! Do you mean 5 momme?

    Cheers

    #1440794
    David Wills
    Member

    @willspower3

    That is some really nice work. I bet using the snap helps keep the width required to stops drafts down a good bit. I had to convert my momentum/silk/XP quilt to a topbag b/c the drafts were too bad at 42" top width. I'm super jealous of the weight! the silk should hold up fine since you don't have any quilting loops through it. Mine only has a few little holes after a year and a half and im not particularly gentle.

    You can get the silk from thaisilks.com. its under habotai. mm is the abbreviation for momme.

    #1440801
    Shawn Taylor
    Member

    @staylor310

    Locale: Sierra

    I really like the roomy footbox! Nice touch!

    The footbox is not roomy, that's where I made the mistake.

    #1440802
    Shawn Taylor
    Member

    @staylor310

    Locale: Sierra

    I don't recall the source for the silk. I lust googled it and ordered from an online company.

    #1440803
    Shawn Taylor
    Member

    @staylor310

    Locale: Sierra

    Yes that's right. They use an "mm" abrev which leads you to think they are talking about millimeters, but 5mil would be very thick.

    #1440804
    Shawn Taylor
    Member

    @staylor310

    Locale: Sierra

    Thanks, I have to give most of the credit to my wife, since she did most of the sewing. The sanp neck closure is a pretty standard detail. The back strap really helps with draft prevention, although 2 would be better, which most quilts have. Turning over in this quilt is not easy, partly because of the texture of the silk, it isn't as slippery as a nylon, so when you try to roll over in the middle of the night, the quilt usually rolls with you, completely opening up your back to the air. Given the intention of this summer bag, it's not really a problem. I intend to make a 0 deg version of this quilt, for this winter, which will have 2 back straps, and much more girth for added clothing, and momentum on the inside as well. I just realized that I incorrectly listed the shoulder girth of my quilt, it is actually 46". The winter version will be more like, 52" with a 37" foot. I figure it will end up at 24oz give or take.

    #1448560
    JohnB
    BPL Member

    @777zzz

    I might want to make one like this. I have a few questions. I don't have experience w/MYOG, so would making a quilt like this be too difficult for me? Is the design complicated? If not, could you give a description? How much of the bag weight is the Climashield? About 5 oz.? Why did you use a silk lining? Because it's more comfortable than the nylon? Thanks for any replies.

    #1448584
    Shawn Taylor
    Member

    @staylor310

    Locale: Sierra

    If you can use a sewing machine, it is pretty easy. It is a trapezoidal design, just like a Nunatak or Cocoon quilt. The width should taper from top to bottom based on your size and preference. You should do some tests with an old bed sheet or you can also measure another quilt for reference. The round foot box is the hardest part to sew, to get the size of the footbox piece you just take the foot-end width you decide on and that is the circumference of the footbox. If you plan to use the quilt with insulating clothing make sure to size it up. The Climashield makes up about 60-65% of the total weight of the quilt. I used the silk because it is the lighter than the nylon momentum. The momentum is far more comfortable and durable than the silk. Good luck.

    #1448616
    Tim Marshall
    BPL Member

    @marshlaw303

    Locale: Minnesota

    would a 32" trapezoidal foot box give more usable space since you could make it taller and not as wide at the base, your size 11s need the height right?

    What about like
    ____8___
    ……/
    …./ 9
    -6–

    I have been planning a footbox instead of just drawcord closure and was thinking something like this would give better space than just a circle. I would use more like 38" or 40" instead of 32" though.

    -Tim

    edit-my little pic isn't working out after many tries. I hope you get the idea

    #1448644
    Shawn Taylor
    Member

    @staylor310

    Locale: Sierra

    I get it, but I have never seen anything like that done. An irregular circle would be even better, it would make for a more fluid connection of the quilt body and the footbox. The best way to do it would be making a template around your feet, as they lay in their resting position. The draw back is this design really only works well for someone who always sleeps on their back.

    Footbox

    If you decide to make a quilt with a design like this I would be interested in seeing how it turns out.

    #1453425
    liang kong
    BPL Member

    @mcluxun

    Locale: Tulsa,OK

    does it down proof?
    what's the weight of it?
    thk

    #1453427
    Shawn Taylor
    Member

    @staylor310

    Locale: Sierra

    No way on the down proof.
    I think 0.5oz per yard, but not sure.
