  • #1228336
    Jeremy Gerloff
    Member

    @jgerloff

    Locale: Midwest

    Recently I made a new stove out of a travel size shaving cream canister. I designed it specifically for use with a narrow pot (keg pot). I got it to boil 2 cups of cold tap water in 16 minutes with a total burn time of 26 minutes on 1 once of fuel. It will also prime in about 30 seconds and does not require a priming pan. The heat is concentrated under the pot with almost no flame going up the side of the keg pot. In fact you can make a circle with your hands around the keg pot and they will not get burned. Also the keg pot sits directly on the stove so there is no pot stand to fuss with. Only drawback is the base of the stove is a little over an inch so it's not the most stable. Should be able to make it smaller so it will bring 2 cups of water to a boil on 0.60 once of fuel. Granted it is a little slow for boil times but when you're enjoying nature's TV time isn't really that important.

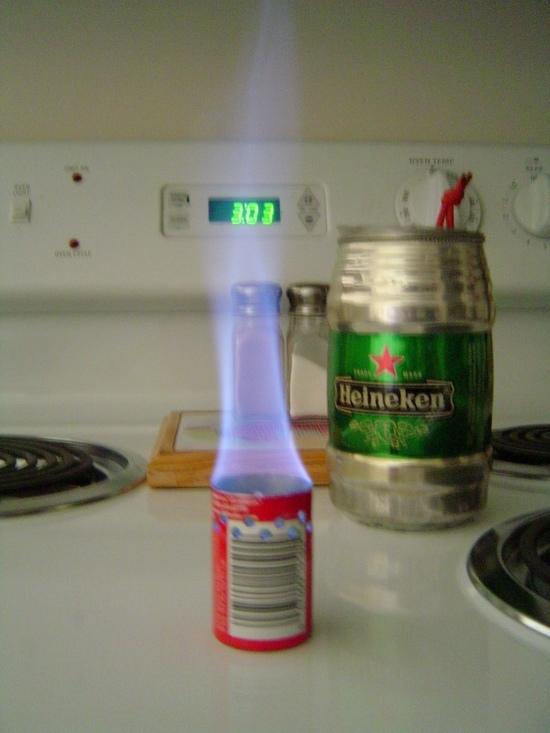

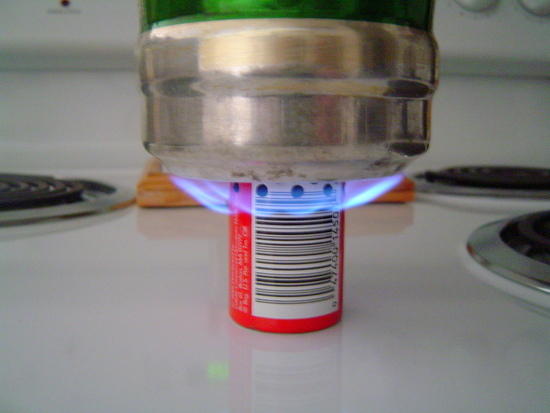

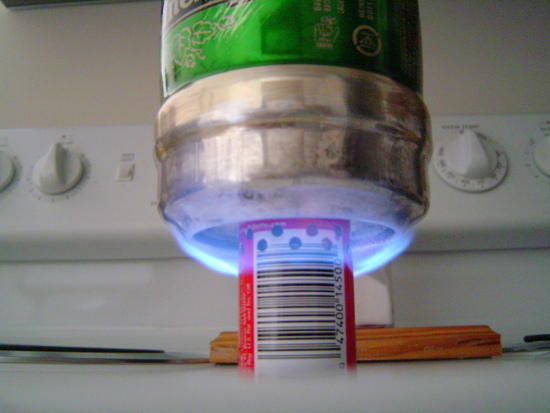

    30 second primeflame patternflame patternflame patternfull boil

    #1428325
    JR Redding
    Member

    @grinchmt

    Nice stove Jeremy. It's always fun to make your own gear successfully.

    #1428327
    Tim Marshall
    BPL Member

    @marshlaw303

    Locale: Minnesota

    looks tall for it's width. if you can make it shorter and still have room for 1oz fuel it will be more stable

    #1428359
    Jeremy Gerloff
    Member

    @jgerloff

    Locale: Midwest

    I drilled the jet holes so it would hold right at 1 oz of fuel. It's not a double wall stove so that's why I made it that tall.

    #1428632
    Joshua Mitchell
    Member

    @jdmitch

    Locale: Kansas

    I take it the material's fairly robust, eh?

    Nice and simple, I like it.
